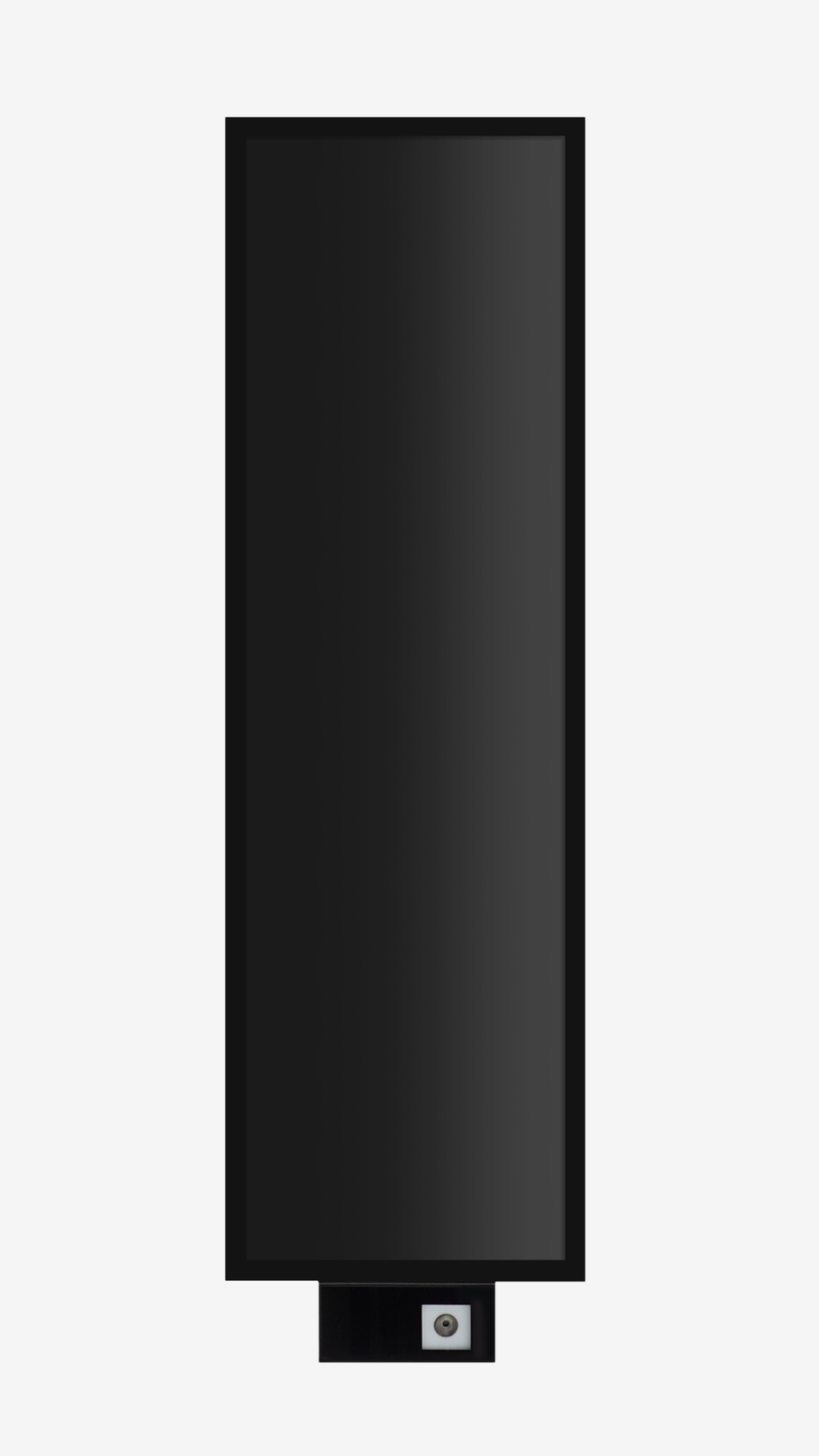

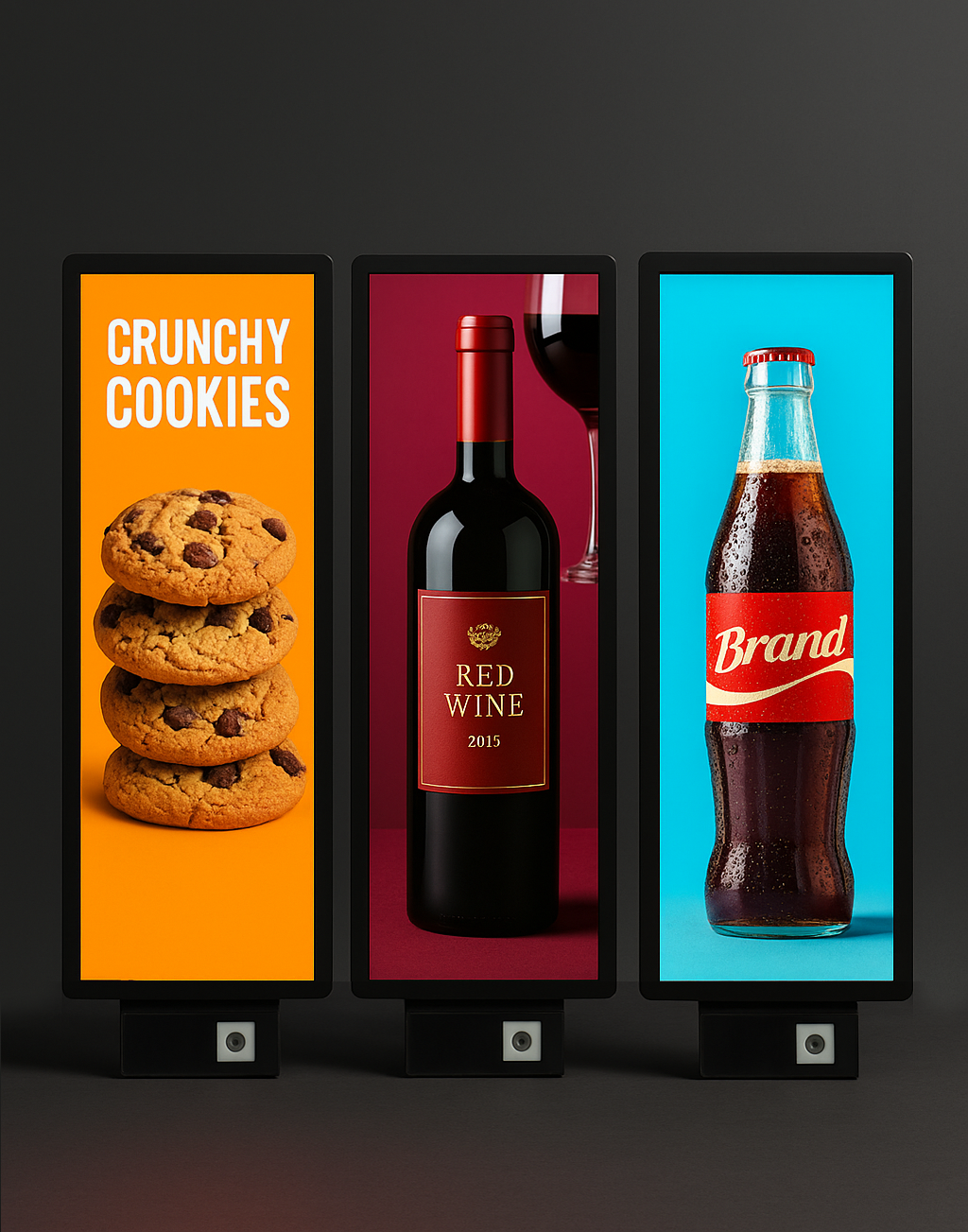

29inch Ultra-Slim Stretch Bar,
A New Advertising Experience
A space-saving ultra-wide display that captures attention instantly.
The 29'' Stretch Bar combines an ultra-slim bezel design with a wide-format panel, delivering powerful advertising impact even in tight spaces.
Perfect for counters, checkout zones, and shop windows, it naturally attracts customer attention.
[Information] DISPLAY
BAR 29V- L97 (QR)
SCREEN SIZE : 540 X 1920 (px)
CCD : 700CD
DIMENTION : W720.8 x H226.25 x D45 (mm)
INCH/WEIGHT : 29 Inch / 4.8KG
STAND TYPE : WALL

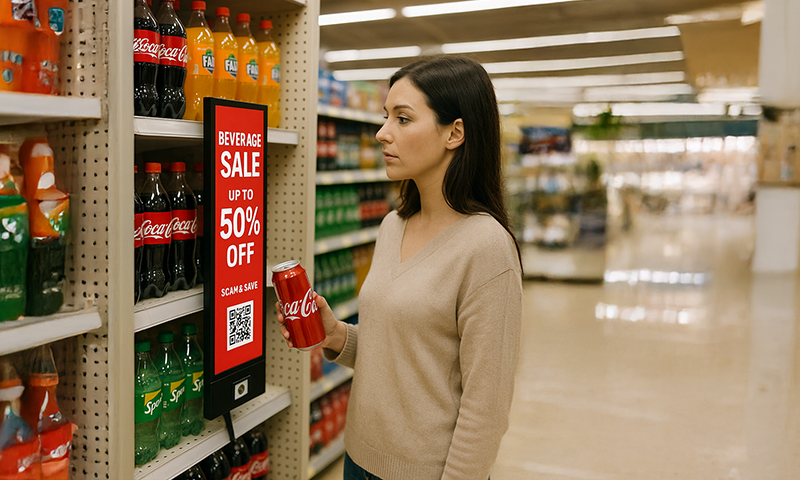

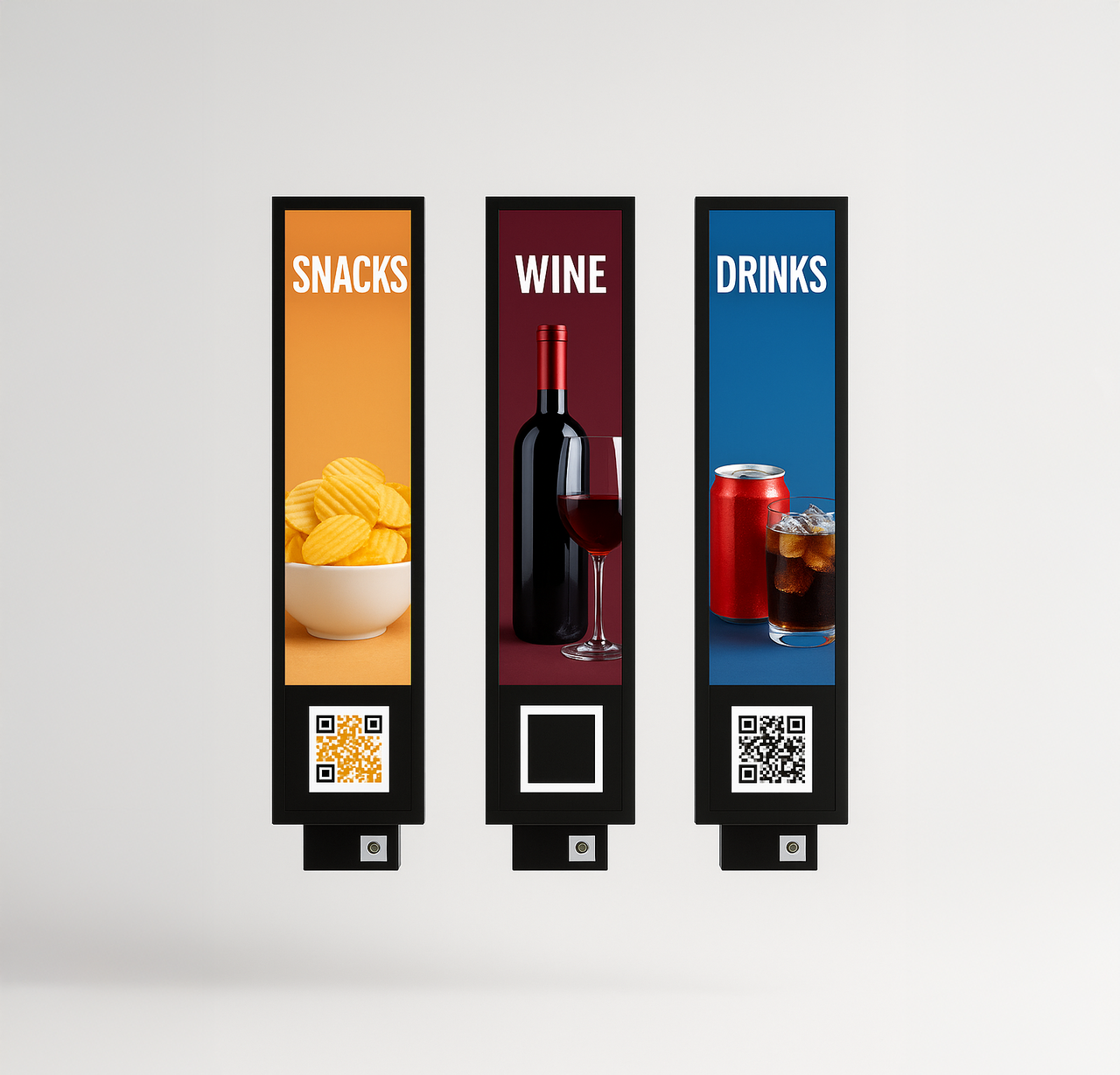

One Scan, Endless Customer Engagement
Control campaigns in real time with cloud-based QR integration.
Display static or dynamic QR codes alongside content to instantly connect customers with product details, coupons, payments, or reviews.
With Cloud CMS, landing pages can be customized by store or time slot, enabling agile, real-time campaign management.

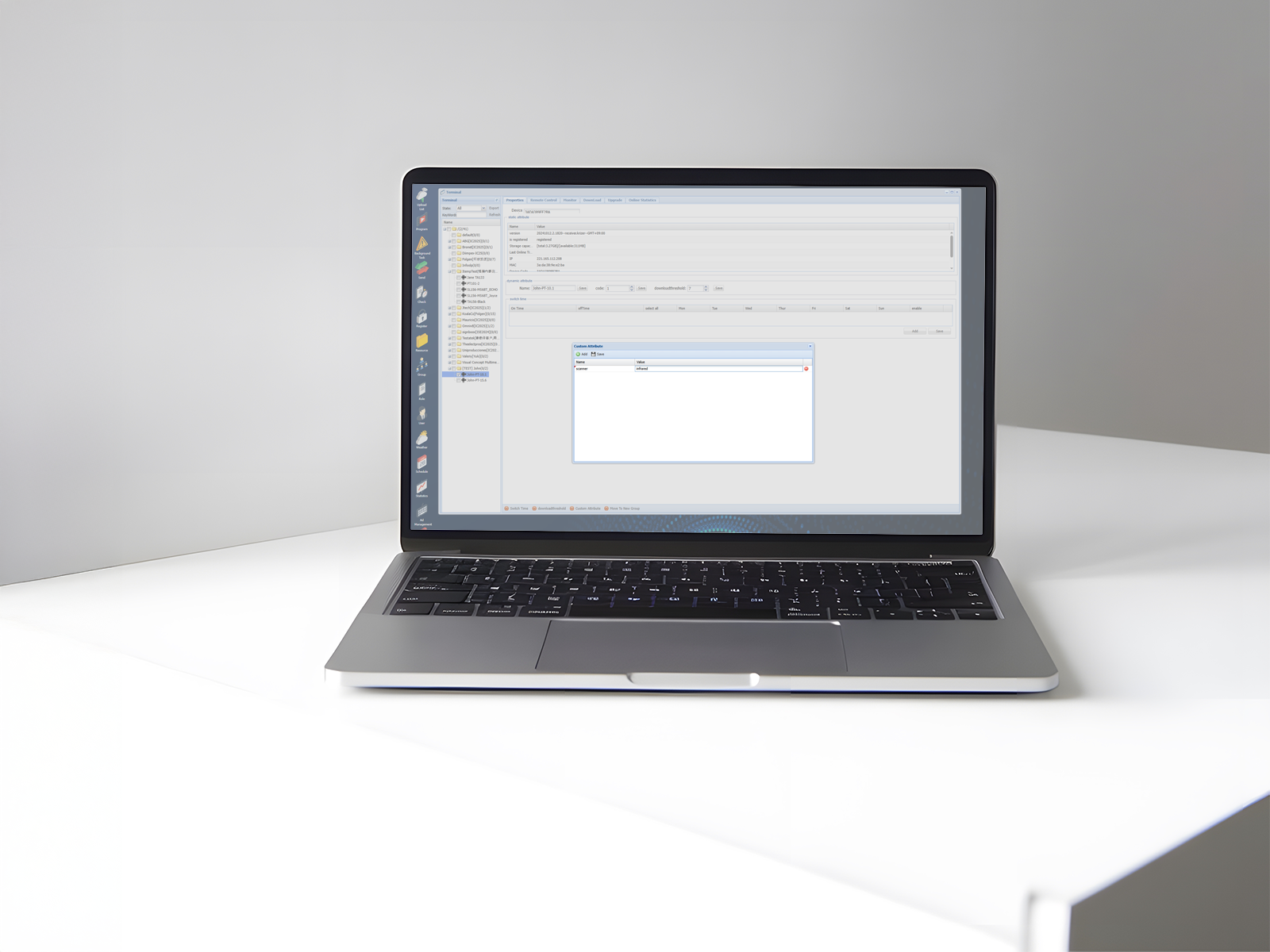

Manage All Devices in One Cloud CMS
Control every display and QR system seamlessly from the CMS.
By registering the QR-enabled device in Cloud CMS, the built-in QR scanner is automatically linked.
Administrators can upload product barcode data and define the exact action triggered upon scanning.
One Scan, Endless Customer Journeys
Multiple actions can be defined per scenario.
Registered QR codes can be updated anytime via the Cloud CMS, enabling
Display of product information
Delivery of discount & coupon offers
Access to an instant ordering platform
Redirect to company website
Launch of customer surveys
☁️ “Content Updated Instantly from the Cloud”
QR data and content can be updated anytime.
Through Cloud CMS, QR codes and landing content can be updated in real time.
Campaigns, seasonal events, and store-specific promotions can be adjusted effortlessly.
Category (EN)Key FeatureDescription
| CMS Integration | Device registration & built-in QR scanner | Devices auto-linked once registered in CMS |
| Barcode Mapping | Product barcode input | Define triggered actions upon scan |
| Scan Scenarios | Multiple actions | Info, coupons, orders, website, surveys |
| Real-time Update | Cloud-based updates | Modify QR & content anytime |
| Scalability | Store/time-based setup | Tailored campaign operation |

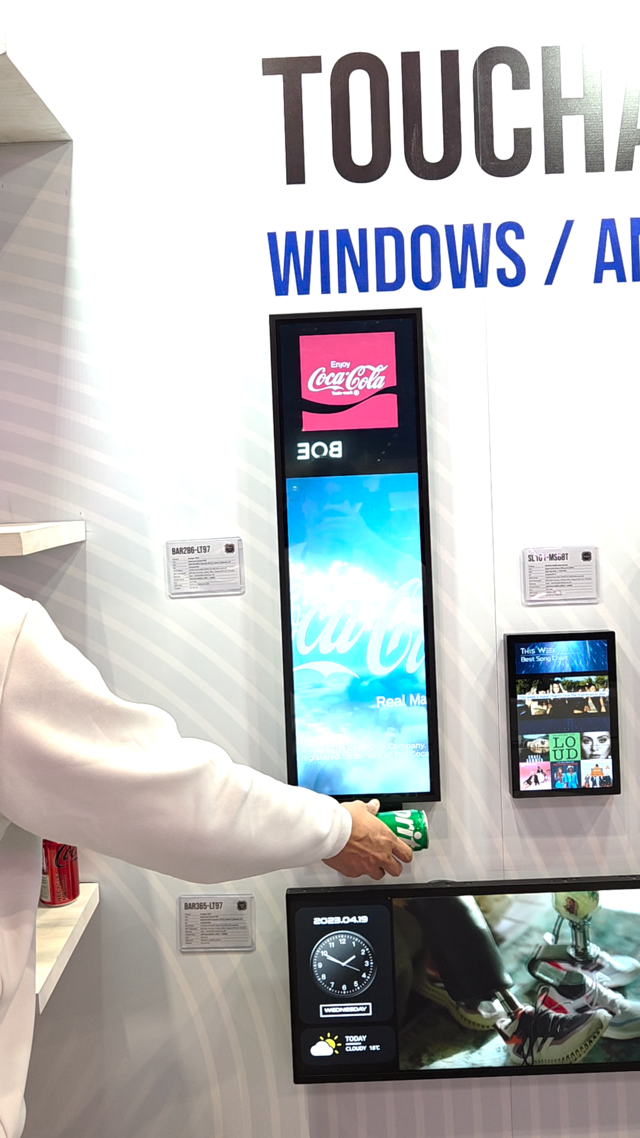

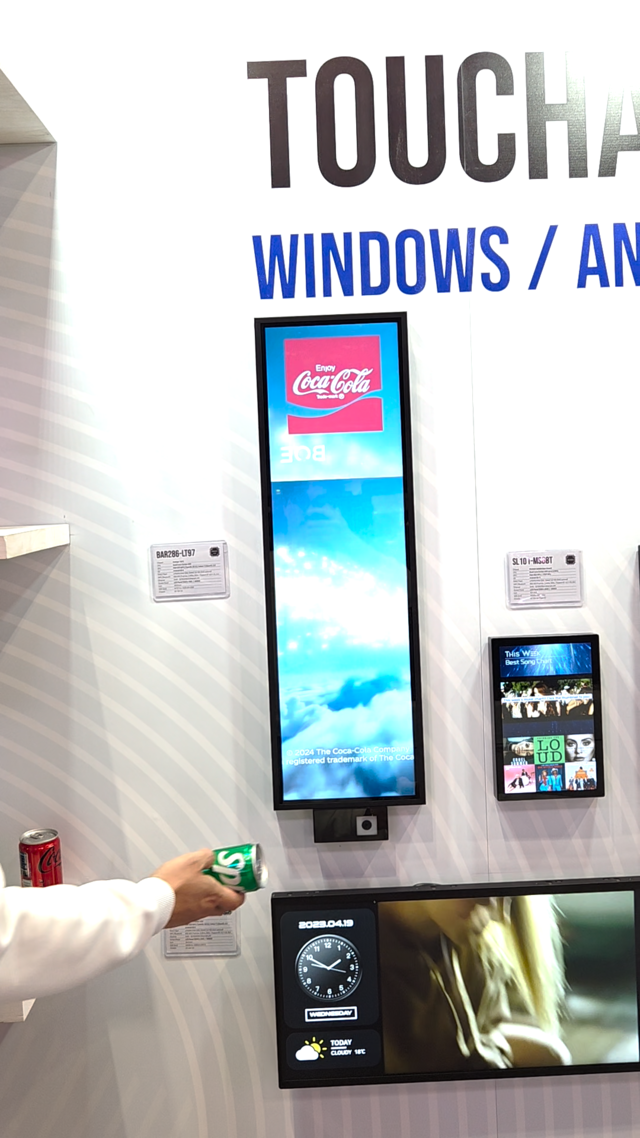

Scan Product Barcode
Scanning Code
Display New Contents
Clarity That Delivers the Message
IPS panel and high resolution ensure vivid, stable visuals.
The Stretch Bar features a Full HD IPS panel, maintaining clear visibility even in bright retail environments.
Optional high-brightness panels make it equally effective in shop windows, airports, or stations.
Text and visuals remain sharp, ensuring premium-quality content delivery.
Panel features | Size: 28.6 inch |
Resolution: 1920x540 | |
Display area: 698.4mm (H)x196.45mm(V) | |
White Luminance: 400nits | |
Contrast Ratio: 4000:1 | |
Viewing angle: 89(R)/89(L)/89(U)/89(D) degree | |
LED Life: Min 40000 Hrs |
Ceiling, Side, or Vertical – Designed to Fit Anywhere
Multiple mounting options to suit any retail environment.
The Power Rail supports ceiling-mounted, side-arm, and vertical bracket installations,
adapting seamlessly to stores, exhibitions, and public spaces.
Its flexible design ensures smooth integration with existing layouts and traffic flow.

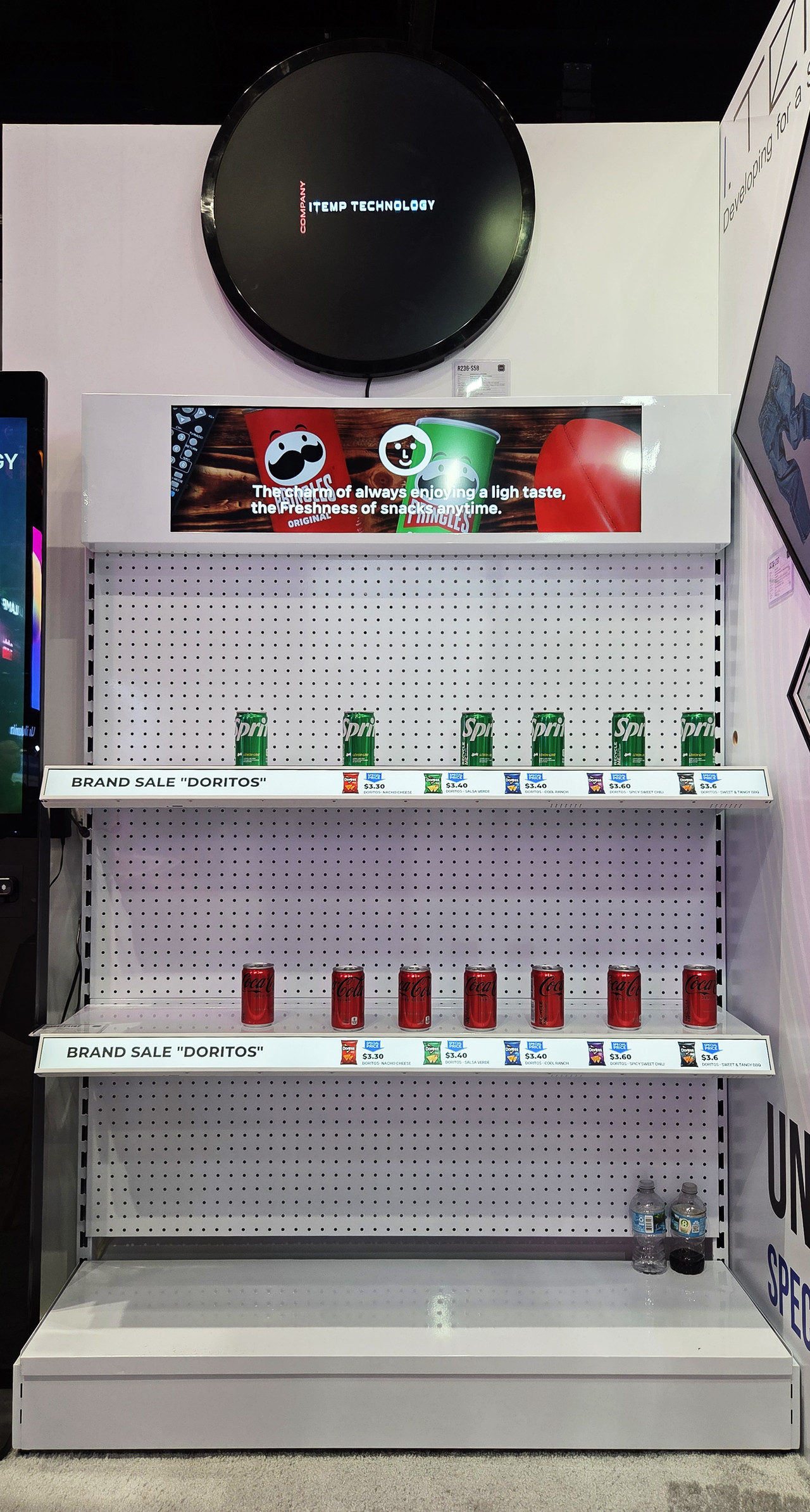

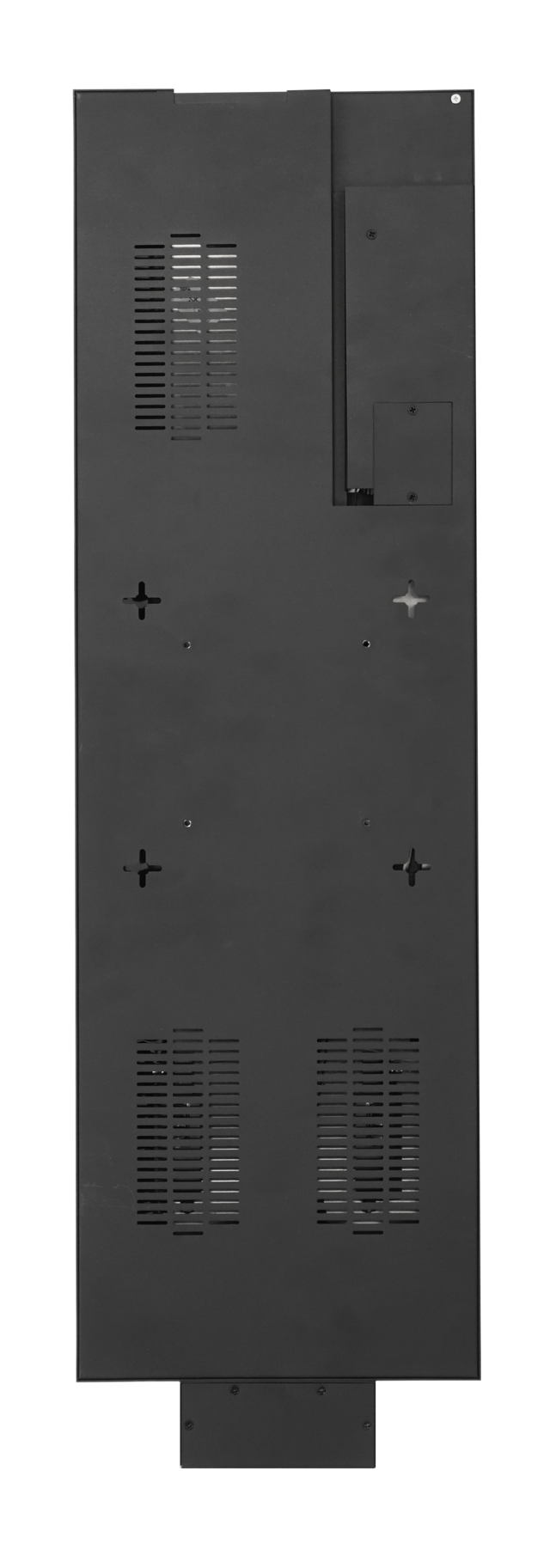

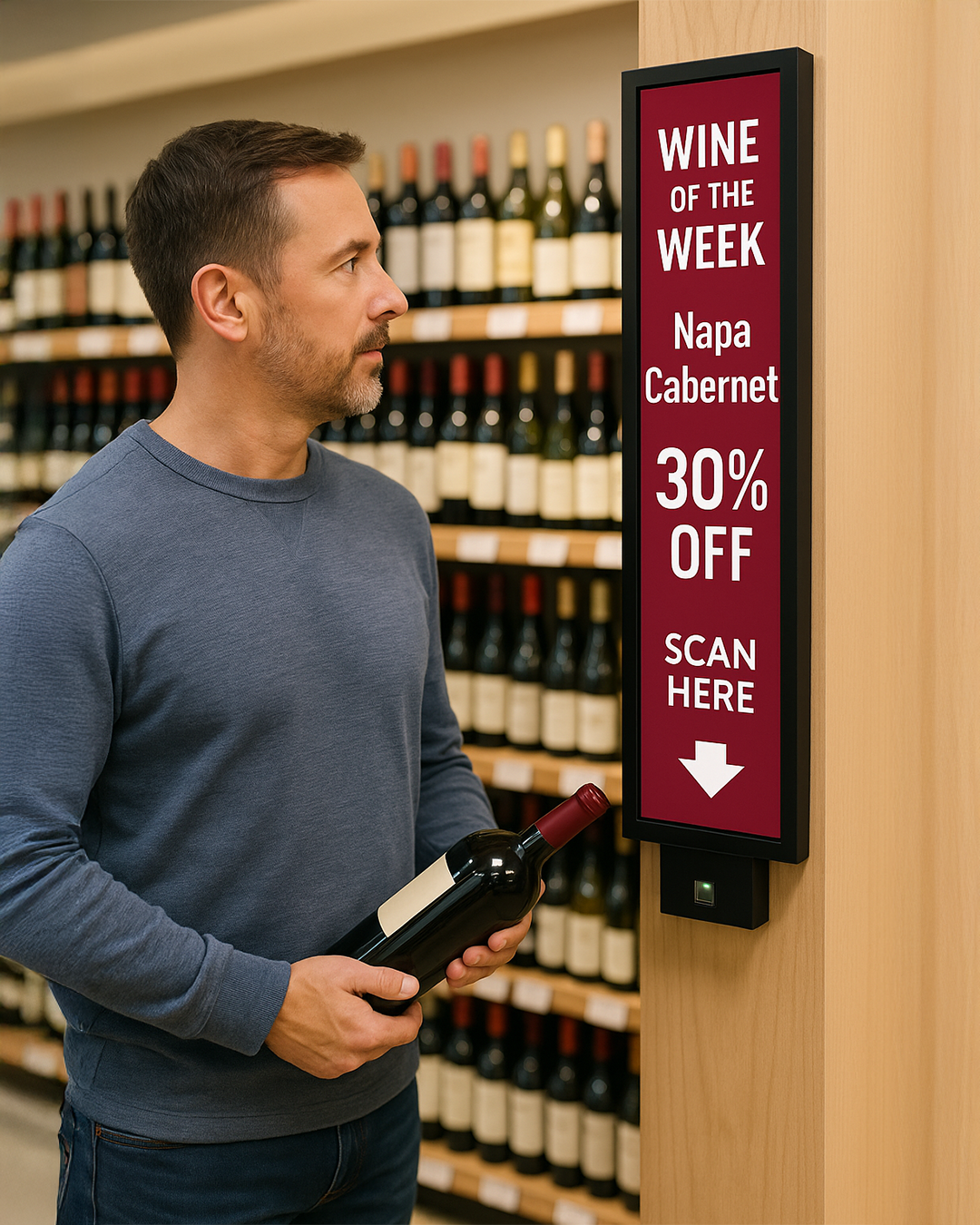

Wall or Rack—A Perfect Fit on Every Shelf
Purpose-built brackets for wall mounting and retail racks.
The Stretch Bar 29″ QR System supports wall mounting for standalone signage
and rack (shelf) mounting for multi-shelf layouts.
Install one unit per shelf to align messages with product tiers and eye level,
while routing cables behind the shelf for a clean look.
When promotions or planograms change, simply reposition the brackets to reconfigure
your display zones in minutes.

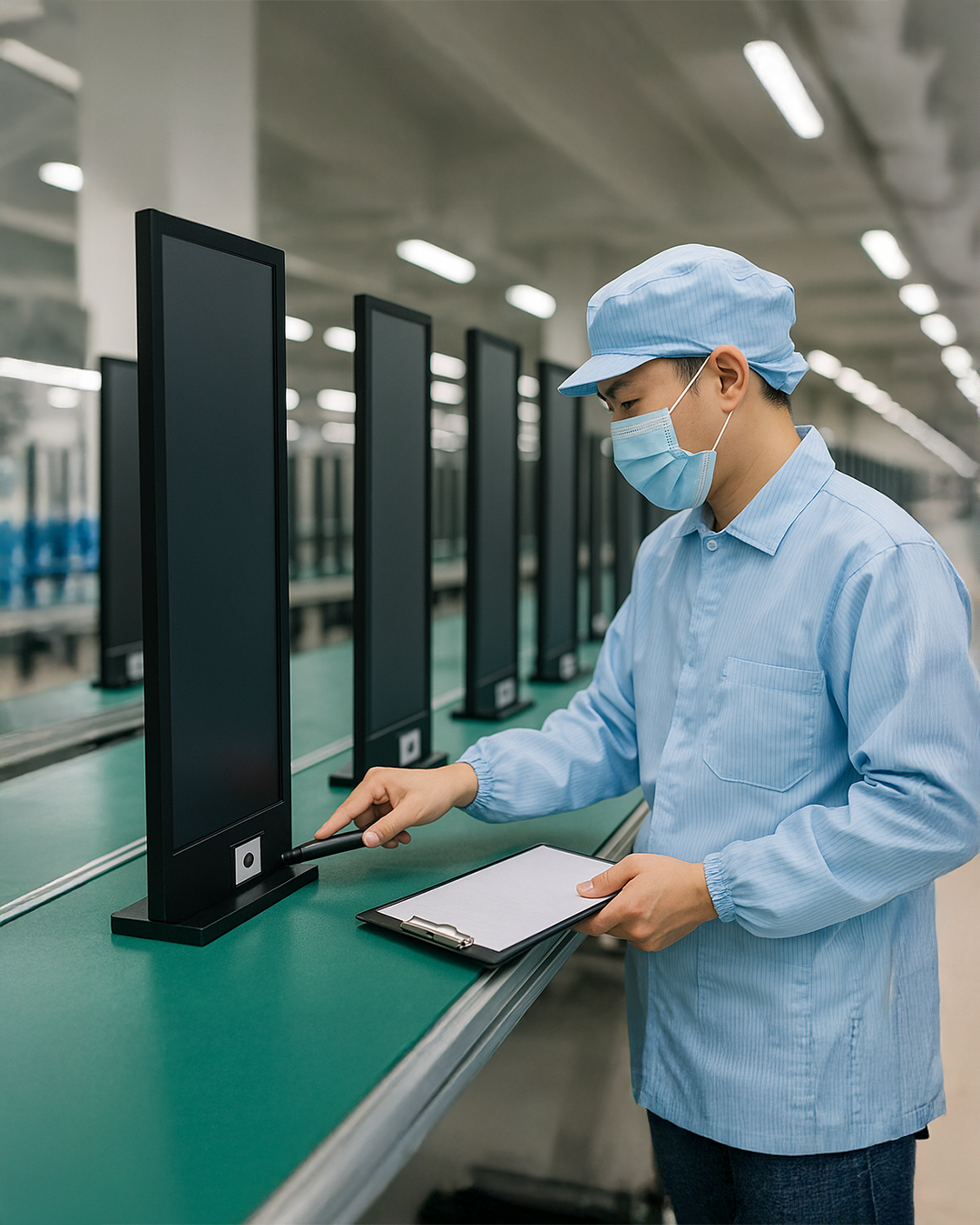

Provide services tailored to your environment and needs.
The Stretch BAR QR System goes beyond standard models with the support of the iTEMP engineering team, offering customized services to match your unique retail environment and requirements.
From hardware extensions to QR system optimization, custom bottom design, and content management integration, our engineers deliver a fully tailored QR-enabled stretch display solution designed to fit your store layout and brand perfectly.
Available with or without touch panel – choose your perfect configuration for optimal customer interaction.
Equipped with a quad-core CPU for
swift information processing!
A low-power, high-performance board achieved with a powerful and efficient processor alongside excellent power control features.
Create unique spaces with various Android solutions and Bardisplay, featuring a distinctive aspect ratio."
Compatibility with USB & Bluetooth external devices
You can connect various USB devices such as USB headphones,
wireless mice, keyboards, external hard drives, etc.
Try connecting Bluetooth-enabled external devices as it supports Bluetooth 4.0.
Provide APIs appropriate
for development environments
It provides various API configurations to suit various development environments.
Provides information to make the different environments available in Android OS compatible.
Useful built-in features
1. Free advertising programs (Shopvod LITE)
2. Log-catchable AUTOLOG CATCH
3. The screen rotation function allows rotation at the desired angle.
4. Provide development environment by granting SUPERROOT authority .
5. Screen scale functionality
Supporting firmware for development
Support firmware development according to the application and
equipment porting required by the client.
Specifications
Model | BAR286-LT97 |
OS | Android 9.0 |
CPU | Amlogic T972,Quad-core ARM Cortex-A55 up to 2.0GHZ |
GPU | Mali-G31 MP2, OpenGL ES 1.1/2.0/3.2,Vulkan 1.1,OpenCL 2.0 |
NPU | null |
RAM | 2G (4G optional) |
ROM | 16G (32G-64G optional) |
Network | WLAN 2.4/5.8GHZ ,BT V4.2; Ethernet GLAN(1000Mbps, optional) |
Video Decoding | H.265 4K@60fps,1080p@60fps Mpeg1/2,Mpeg4,SP/ASP GMC,H.263,H.264,WMV9/VC-1 VP9,VP8,etc. |
Photo Decoding | JPEG,BMP,PNG,GIF etc. |
Special functions | Hardware watch time dog make system running stable |
Screen rotation can change any display direction of four sides | |
Power management make device reasonable working schedule | |
Contents management system to publish any programs | |
Automatically cleared the redundancy by periodically | |
Provide API document for easy match with applications | |
Touch | null |
Panel features | Size: 28.6 inch |
Resolution: 1920x540 | |
Display area: 698.4mm (H)x196.45mm(V) | |
White Luminance: 400nits | |
Contrast Ratio: 4000:1 | |
Viewing angle: 89(R)/89(L)/89(U)/89(D) degree | |
LED Life: Min 40000 Hrs | |
Interface | USB2.0x1; OTGx1;DC type-C x1;TFx1;RJ45x1; (optional) |
Speaker | null |
Operating Temperature | 0 to +60 degree |
Power | DC 12V/5A |
Accessory | Power adapterx1; Bracket(mounter)x1; User Manuelx1;(optional) Ethernet extend cablex1; (optional) RC x1; |
Housing | Material: Metal; Color: white or black; |
size: 727.4mmx225.45mmx26mm | |
Net weight | 4.2kg |
Package Size | 875mmx130mmx345mm |
Installation | mount on shelf |
