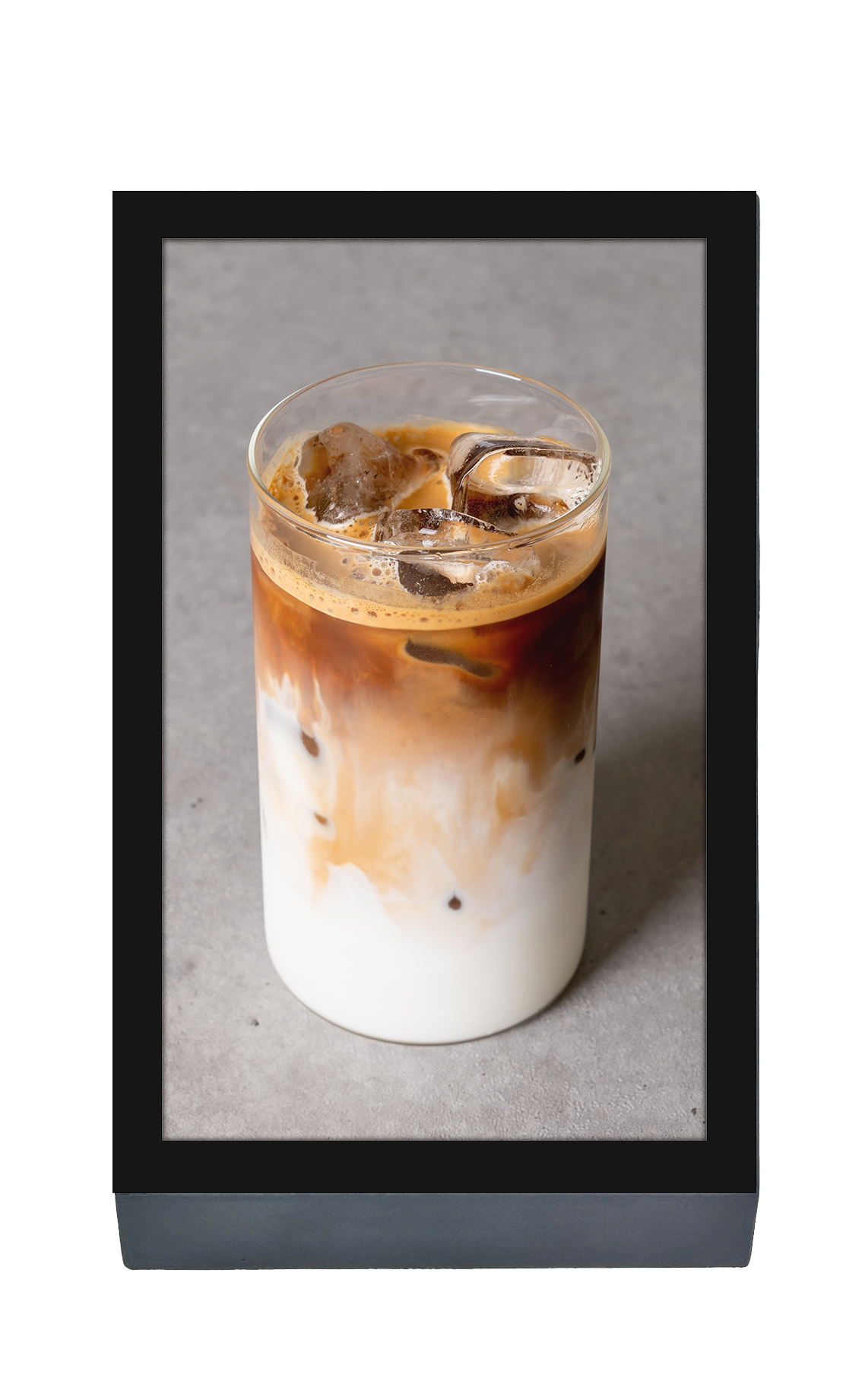

Table Touch SignageTA133M-M68T (13.3inch Display)

Model

TA133M-MS68T

OS

Android 11.0

CPU

RK3568,Quad-core Cortex-A55,Up to 2.0GHZ

GPU

Mali-G52 MP2, OpenGL ES 1.1/2.0/3.2,Vulkan 1.1,OpenCL 2.0

NPU

1TOPS,INT8/INT16 hybrid operation

RAM

2G (8G optional)

ROM

16G (64G-128G optional)

Network

WLAN 2.4/5.8GHZ ,BT V4.2; Ethernet GLAN(1000Mbps)

Video Decoding

H.265 4K@60fps,1080p@60fps Mpeg1/2,Mpeg4,SP/ASP GMC,H.263,H.264,WMV9/VC-1 VP9,VP8,etc.

Photo Decoding

JPEG,BMP,PNG,GIF etc.

Special functions

Hardware watch time dog make system running stable

Screen rotation can change any display direction of four sides

Power management make device reasonable working schedule

Contents management system to publish any programs

Automatically cleared the redundancy by periodically

Support WOL function

Support POE power on device(optional)

Provide API document for easy match with applications

Touch

10 points capacitive touch (it can be no-touch)

Panel features

Size: 13.3 inch

Resolution: 1080x1920

Display area: 165.24mm (H)x293.76mm(V)

White Luminance: 300nits

Contrast Ratio: 800:1

Viewing angle: 85(R)/85(L)/85(U)/85(D) degree

LED Life: Min 15000 Hrs

Interface

USB2.0x1;USB3.0x1;RJ45x1; DC-TypeCx1;extender portx1(GPIO+RS232);

Speaker

8Ω 2W

Operating Temperature

-10 to +50 degree

Power

DC 12V/3A

Accessory

Power adapterx1; User Manuelx1;(optional)

Housing

Material: Metal; Color: white or black;

size: 198.4mmx314.27mmx173mm

Net weight

Package Size

Installation

on table
