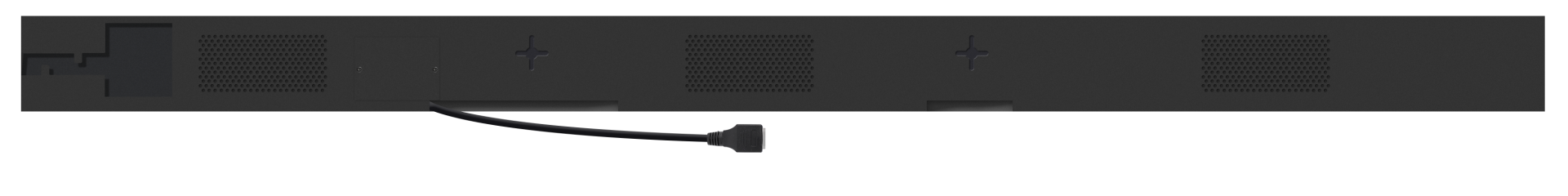

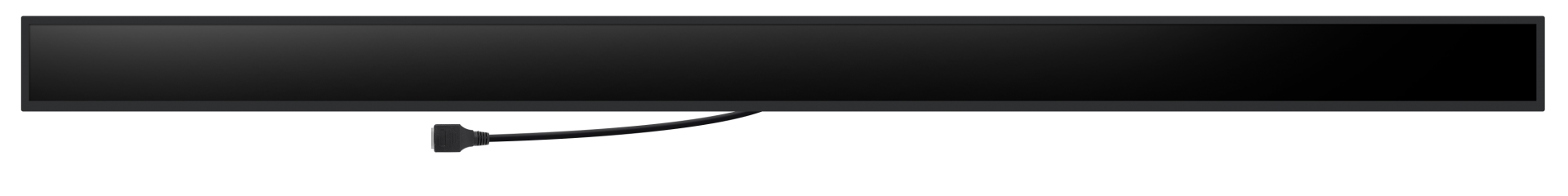

Strech SignageBAR471-LT97

Model

BAR471-LT97

OS

Android 9.0

CPU

Amlogic T972,Quad-core ARM Cortex-A55 up to 2.0GHZ

GPU

Mali-G31 MP2, OpenGL ES 1.1/2.0/3.2,Vulkan 1.1,OpenCL 2.0

NPU

null

RAM

2G (4G optional)

ROM

16G (32G-64G optional)

Network

WLAN 2.4/5.8GHZ ,BT V4.2; Ethernet GLAN(1000Mbps, optional)

Video Decoding

H.265 4K@60fps,1080p@60fps Mpeg1/2,Mpeg4,SP/ASP GMC,H.263,H.264,WMV9/VC-1 VP9,VP8,etc.

Photo Decoding

JPEG,BMP,PNG,GIF etc.

Special functions

Hardware watch time dog make system running stable

Screen rotation can change any display direction of four sides

Power management make device reasonable working schedule

Contents management system to publish any programs

Automatically cleared the redundancy by periodically

Provide API document for easy match with applications

Touch

null

Panel features

Size: 47.1 inch

Resolution: 3840x160

Display area: 1196.16mm (H)x49.84mm(V)

White Luminance: 500nits

Contrast Ratio: 1000:1

Viewing angle: 89(R)/89(L)/89(U)/89(D) degree

LED Life: Min 50000 Hrs

Interface

USB2.0x1; OTGx1;DC type-C x1;TFx1;RJ45x1; (optional)

Speaker

null

Operating Temperature

0 to +60 degree

Power

DC 12V/3A

Accessory

Power adapterx1; Bracket(mounter)x1; User Manuelx1;(optional) Ethernet extend cablex1; (optional) RC x1;

Housing

Material: Metal; Color: white or black;

size: 1210mmx63.9mmx32mm

Net weight

4.3kg

Package Size

1317mmx145mmx124mm

Installation

mount on shelf
