" Revolutionize Your Space, Capture Every Gaze

Elevate Your Store with ITEMP's Special Shape Displays! "

ITEMP's Special Shape Display series breaks away from traditional rectangular designs,

offering circular and square displays that provide a fresh visual experience.

With 2K resolution and 500cd brightness, these displays ensure exceptional visibility in any environment.

The dedicated mounting brackets make installation straightforward, allowing you to enhance

your store's ambiance with unique designs and various sizes.

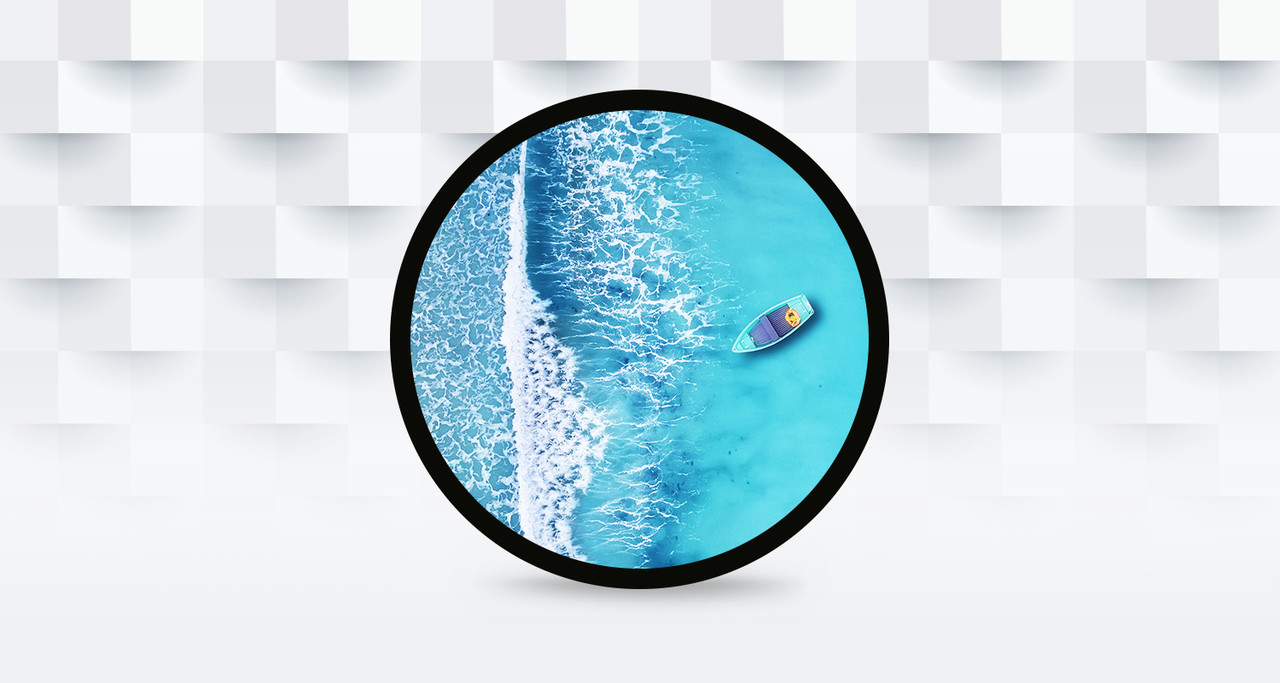

ITEMP Special Shape Displays – Circle and Square Signage Solutions

A circular display excels at concentrating the surrounding field of vision into a unified focal point.

The combination of 1000CD(Candela) brightness,

4K resolution, and a distinctive circular LCD ensures

an immersive viewing experience for the presented information and content.


[Information] Size Display

R236-L68

Active area  : 659(H) x 659(V)

DIMENTION : W429.56 x H429.56 x D32 (mm)

CCD : 450CD

STAND TYPE : Wall


Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz Processor

Equipped with a quad-core CPU for swift information processing!
A low-power, high-performance board achieved with a powerful and efficient processor alongside excellent power control features.
Create unique spaces with various Android solutions and circledisplay, featuring a distinctive aspect ratio.




Versatile Utilization through the Android OS


This display is based on the user-friendly Android OS, providing diverse ways of engagement.

Beyond videos and images, there are numerous applications, websites,

and other avenues available for utilization.

Provide APIs appropriate

for development environments

It provides various API configurations to suit various development environments.

Provides information to make the different environments available in Android OS compatible.




Useful built-in features

1. Free advertising programs (Shopvod LITE)

2. Log-catchable AUTOLOG CATCH

3. The screen rotation function allows rotation at the desired angle.

4. Provide development environment by granting SUPERROOT authority .

5. Screen scale functionality

Supporting firmware for development

Support firmware development according to the application and

equipment porting required by the client.


Specifications


Mode
R236-L68

Screen

23.6inch

OS

ANDROID 11

Brightness

350 ccd

Power

110V-220V 60Hz

Demension

W659 x H659 x D37.0mm

CPU

Quad-core Cortex-A55 up to 2.0GHz

GPU

Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0
Memory
DDR3 RAM 2GB (4Gb Optional) / 16GB (32G Optoinal)
Resolution
1280 x 1280
USB
2.0 port x 2
BluetoothBletooth Ver 4.0
Remote controlIR remote
Ethernet10/100/1,000Mbps Ethernet
Supporting VideoMKV, WMV, MP4, AVI VIDEO 8/9/10 Up to 4K, 3D Decoding
Video codec4k, H265 / H264
AudioWMA, FLAC, MP3, OGG, WAV
ImagesJPEG, JPPG, PNG, GIF
Laguage ENG, CHI, KOR, GER (ETC Android os-provided language)
