Specifications
 |  | ||||||||||||
| Product Specifications | Screen output method | HDMI | |||||||||||
| Power | DC 12V 2A | ||||||||||||
| Button | Power Switch | ||||||||||||

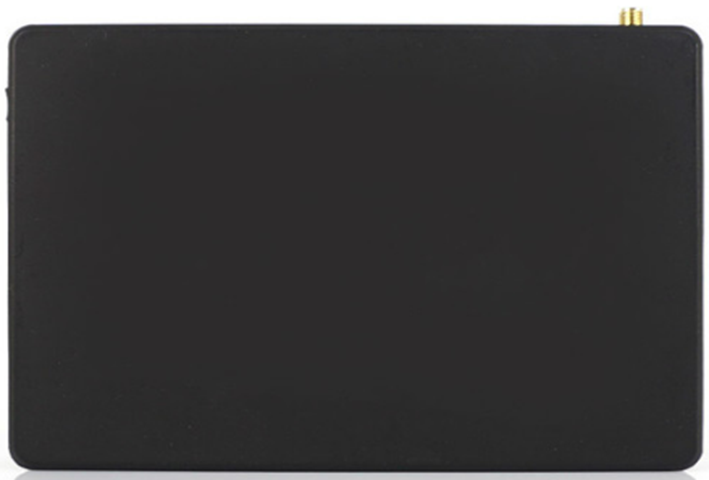

| Size | W160 x H115 x D31 (mm) | ||||||||||||
| Power consumption | 4~5W | ||||||||||||
| Weight | Weight Product - 0.3KG, Including Package - 0.7KG | ||||||||||||
| Board | Chipset | RK3288 Quad-Core | |||||||||||
| OS | Android OS 7.1 Nougat | ||||||||||||
| CPU | Quad-core Cortex-A17 up to 1.8Ghz | ||||||||||||
| GPU | Mail-T764 GPU, Supports OpenGL ES 1.1 and 2.0 | ||||||||||||
| High performance dedicated 2D processor | |||||||||||||
| RAM | DDR3 RAM 2GB (4G optional) | ||||||||||||
| Flash | EMMC 5.0 16G (32G optional) | ||||||||||||
| Ethernet | 10/100/GIGA Ethernet LAN - RJ45, WOL(Wake on lan) | ||||||||||||
| Audio | 3.5mm Audio output / US-style 4-pole jack | ||||||||||||

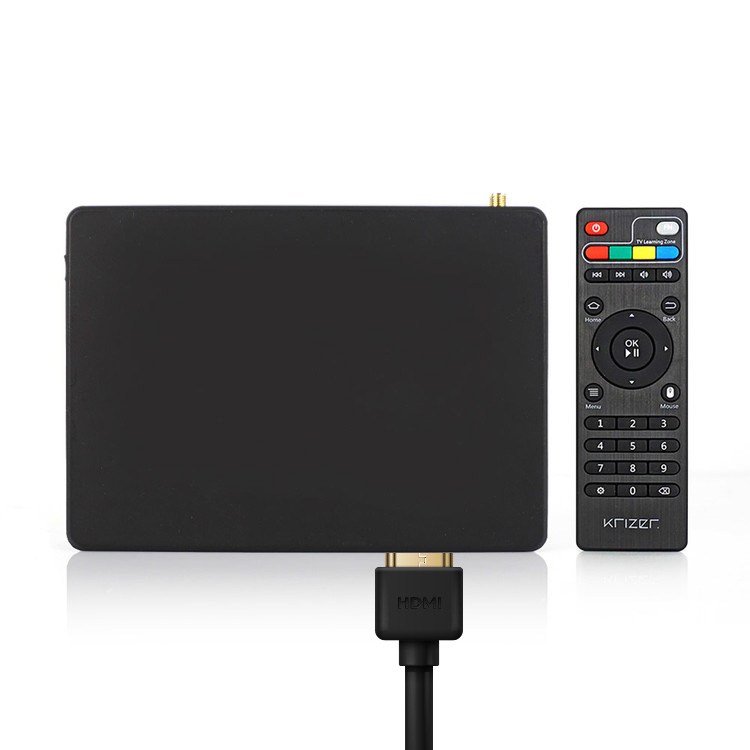

| HDMI out | HDMI Up to 2.0 HDMI 2.0 for 4K@60Hz | ||||||||||||
| HDMI in | HDMI input / up to 1920 x 1080p 60Hz (Full HD) | ||||||||||||
| TF Memory | Supports up to 256GB | ||||||||||||
| OTG | Android Debug Port | ||||||||||||
| Wi-Fi | 2.4Ghz / 5.8Ghz | ||||||||||||
| BlueTooth | 4.0 | ||||||||||||
| USB | USB type camera, keyboard, mouse, and other external devices can be used | ||||||||||||
| 2.0 / 4port / FAT32, NTFS, exFAT | |||||||||||||

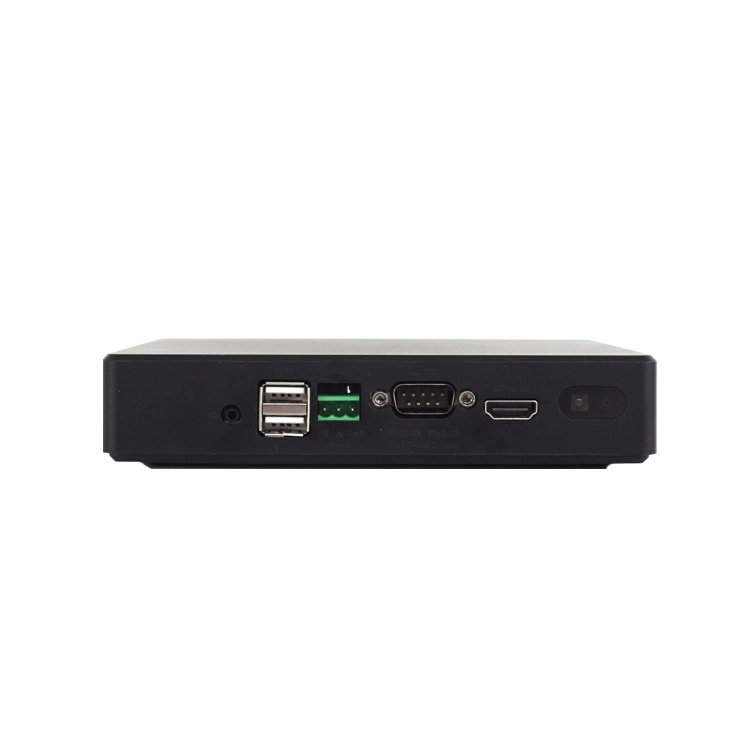

| Connector | GPIO | GPIO A0, A1, A2, KEY, GND | |||||||||||
| SPK | Built-in speaker jack | ||||||||||||
| MIC | Built-in microphone jack | ||||||||||||
| RS485 | Communication port: /dev/ttyS1 | ||||||||||||
| RS232 | Communication port: /dev/ttyS3, /dev/ttyS4 | ||||||||||||
| DC IN | 12V | ||||||||||||
| POE | Power supply through Ethernet | ||||||||||||
| LED | RED, GREEN, BLUE | ||||||||||||

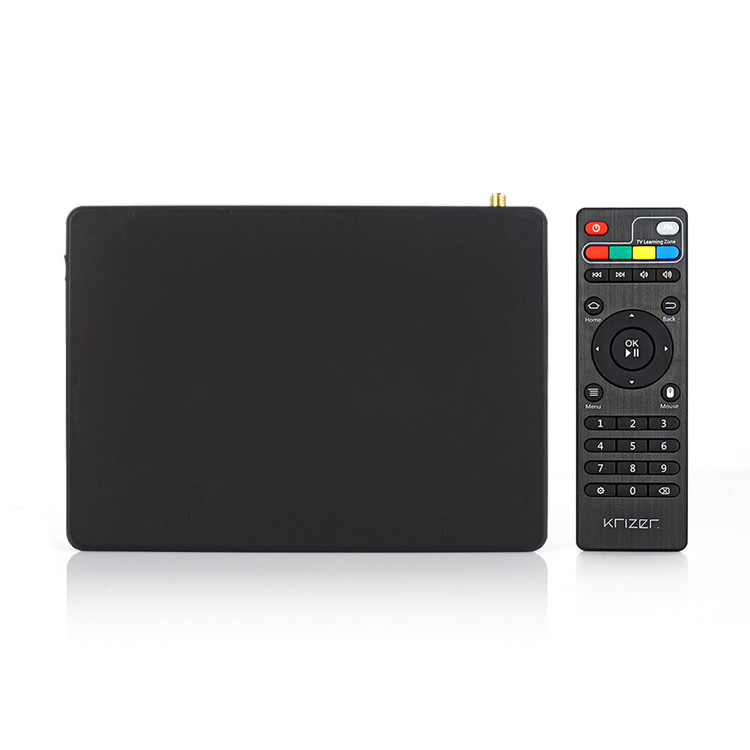

| IR | Infrared remote control receiver | ||||||||||||
| Function | Resolution | Support RGB/Dual LVDS/Dual MIPI-DSI/eDP interface, up to 3840*2160 resolution | |||||||||||
| Multi-media | 4K H265/H264 video decoders | ||||||||||||
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |||||||||||||
| 1080P video encoder for H.264 and VP8 | |||||||||||||
| Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | |||||||||||||
| Video Files | MKV, WMV, VC-1, SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM | ||||||||||||
| Video Codec | 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps, 1080P multi-format video decoding | ||||||||||||
| (WMV, MPEG-1/2/4, VP9, H265, H264) 1080P video coding, supports H264/H265 | |||||||||||||
| Audio Files | WMA, FLAC, MP3, OGG, WAV | ||||||||||||
| Image Files | JPG, JPEG, MJPEG, PNG, GIF | ||||||||||||
| Video Bitrate | Up to 20,000 Kbps | ||||||||||||
| rooting | Option to choose root or unroot firmware | ||||||||||||
| RTC | Real Time Control system that allows setting of product's power on/off and reboot times | ||||||||||||
| Screen rotation function | Option to rotate screen by 0, 90, 180, or 270 degrees | ||||||||||||
| Automatic log catch | System log storage function | ||||||||||||
| ShopVodLite function | Built-in advertising solution | ||||||||||||
| WOL function | Wake on LAN, remote booting function via network | ||||||||||||
| ADB function | Android debugging available via wired (OTG port) or wireless (network) | ||||||||||||
| Platform key provision | Ability to use system permissions with platform key | ||||||||||||
| Supported languages | All languages supported by Android, including Korean, English, and German | ||||||||||||
