Specification
 |
| ||

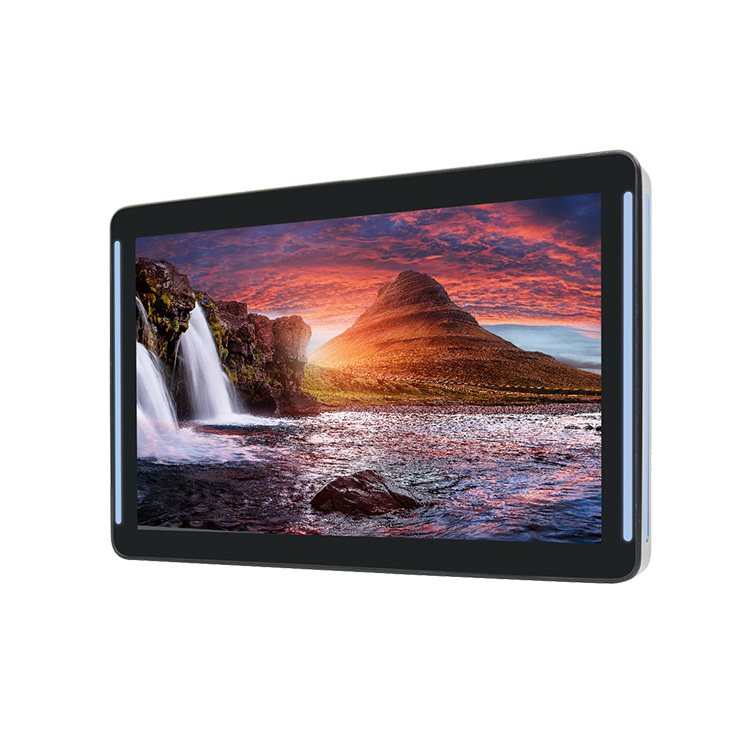

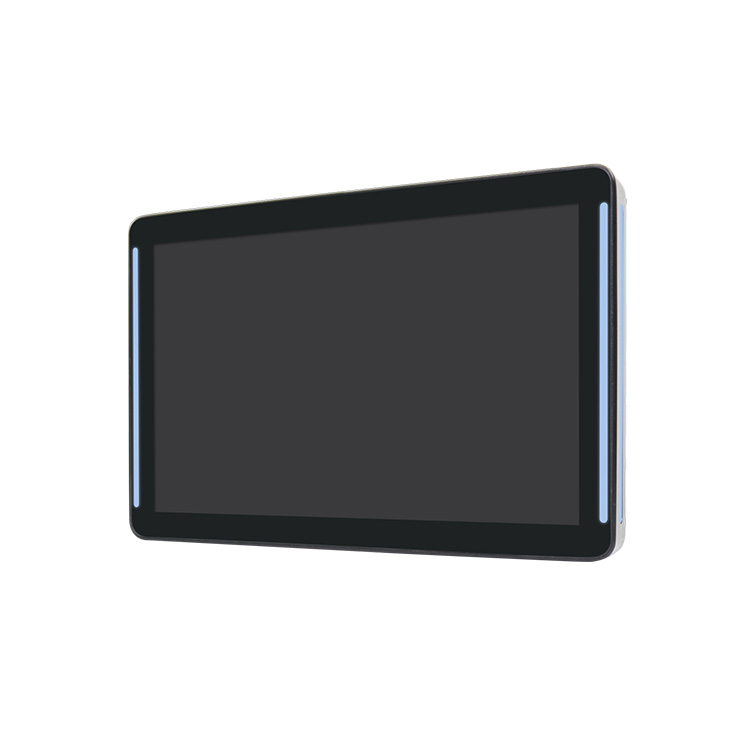

| Specification | Screen Panel | LCD Panel (1280 x 800) | |
| CD | 350CD | ||
| INCH | 10.1 Inch | ||
| Screen Out type | LVDS | ||
| Touch type | Capacitive touch screen | ||
| Speaker | 8Ω / 2W | ||
| Power | DC 12V 3A | ||
| Button | Power(on/off) | ||
| Demension | W260 x H178 x D25 (mm) | ||
| Bezel size | Up, Down, left, right 21(mm) | ||
| Power consumption | 9~10W | ||
| VESA | 75 x 75 | ||
| Weight | Product - 1.8KG, with package - 2.5KG | ||
| Main Board | Chipset | RK3288 Quad-Core | |
| OS | Android OS 7.12 Nougat | ||
| CPU | Quad-core Cortex-A17 up to 1.8Ghz | ||
| GPU | Mail-T764 GPU, Supports OpenGL ES 1.1 and 2.0 | ||
| High performance dedicated 2D processor | |||
| RAM | DDR3 RAM 2GB (4G optional) | ||
| Flash | EMMC 5.0 16G (32G optional) | ||
| Ethernet | 10/100/GIGA Ethernet LAN - RJ45 | ||
| Audio | 3.5mm Audio output | ||
| HDMI out | HDMI Up to 2.0 | ||
| HDMI 2.0 for 4K@60Hz | |||
| TF Slot | Supprting UP to 256GB | ||
| OTG | Android Debug Port | ||
| Wi-Fi | 2.4Ghz / 5.8Ghz | ||
| BlueTooth | 4.0 | ||
| USB | USB type (Cameara, Keyboard, Mouse, ETC) | ||
| Power over Ethernet | Supporting POE (power over ethernet) | ||

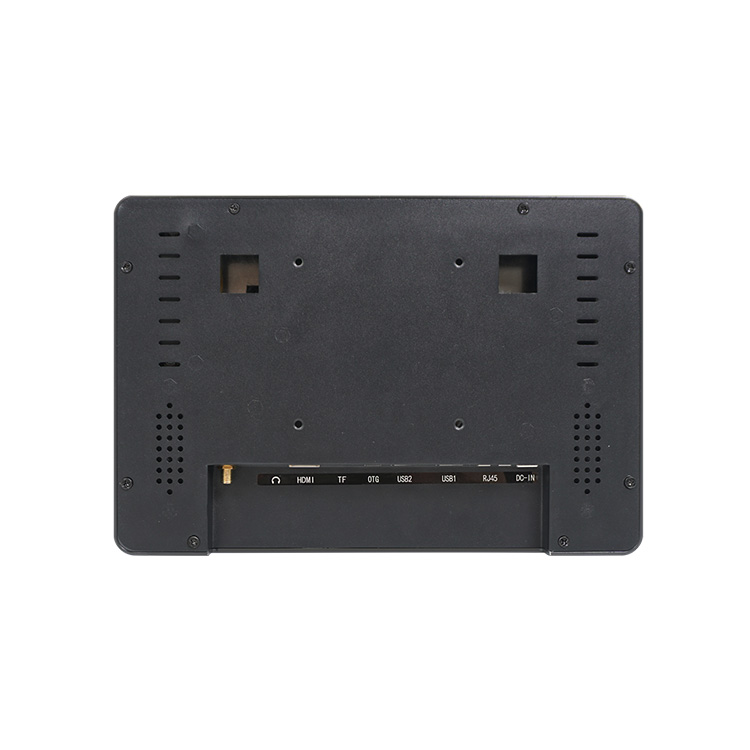

| Port | GPIO | GPIO A0, A1, A2, KEY, GND | |
| SPK | Built-in port | ||
| MIC | Built-in port | ||
| LVDS | 3.3V, 5V, 12V | ||
| EDP | 3.3V, 5V, 12V | ||
| RS485 | Port : /dev/ttyS1 | ||
| RS232 | Port : /dev/ttyS3, /dev/ttyS4 | ||
| USB | 4Pin Type 3port | ||
| DC IN | 12V | ||
| POE | Supporting Power over ethernet | ||

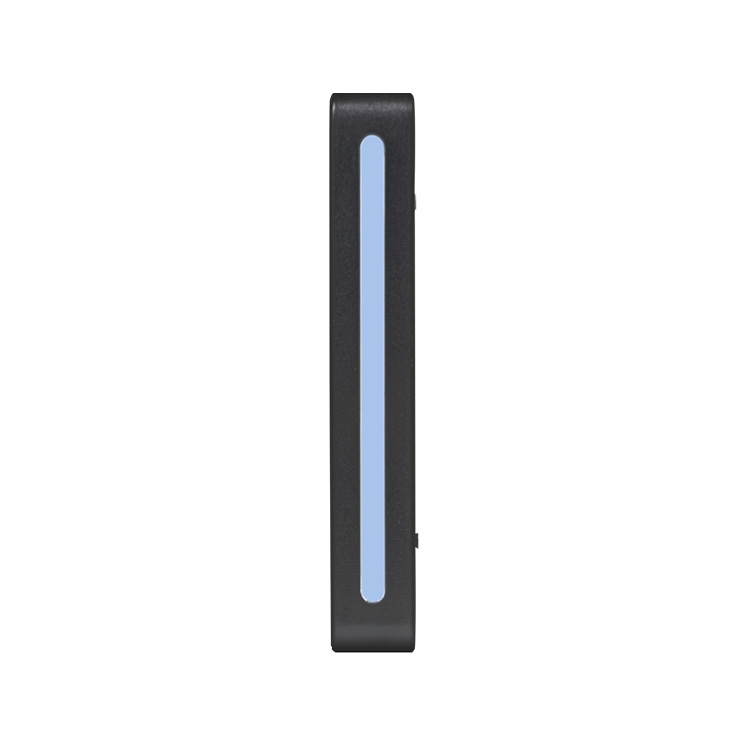

| LED | RED, GREEN, BLUE | ||
| IR | IR Remote | ||
| Function | Resolution | Support RGB/Dual LVDS/Dual MIPI-DSI/eDP interface, up to 3840*2160 resolution | |
| Multi-media | 4K H265/H264 video decoders | ||
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | |||
| 1080P video encoder for H.264 and VP8 | |||
| Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | |||
| Video Files | MKV, WMV, VC-1, SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM | ||
| Video Codec | 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps, 1080P multi-format video decoding | ||
| (WMV, MPEG-1/2/4, VP9, H265, H264) 1080P video coding, supports H264/H265 | |||
| Audio Files | WMA, FLAC, MP3, OGG, WAV | ||
| Image Files | JPG, JPEG, MJPEG, PNG, GIF | ||
| Video Bitrate | 20,000 Kbps or less | ||
| rooting | You can choice root, unroot. | ||
| RTC | Real Time Control (Power on/off and reboot) | ||
| Screen Rotation | 0, 90, 180, 270 Setup | ||
| Auto Catch log | Can save the auto catch log | ||
| advertising function | Built-in Shopvod lite | ||
| WOL | Wake on lan, Network service | ||
| ADB | Wire - OTG port, Wireless - same network | ||
| Flatform key | System root (prepare the flatform Key) | ||
| Language | Android os-provided language (english, chinese, korean, german, ETC) | ||
