Specification
 |  | |

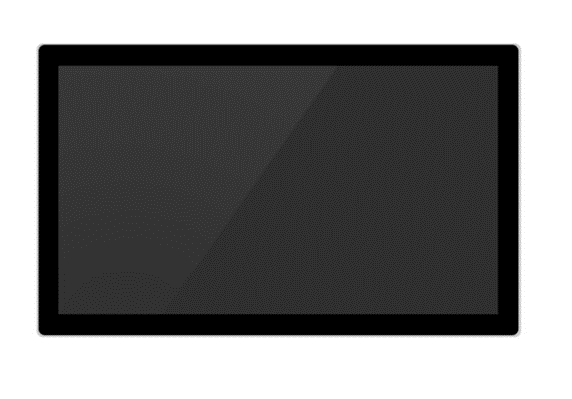

Specification | Screen Panel | LCD Panel (1280 x 800) |
| CD | 350CD | |
| INCH | 10.1 Inch | |
| Screen Out type | LVDS | |

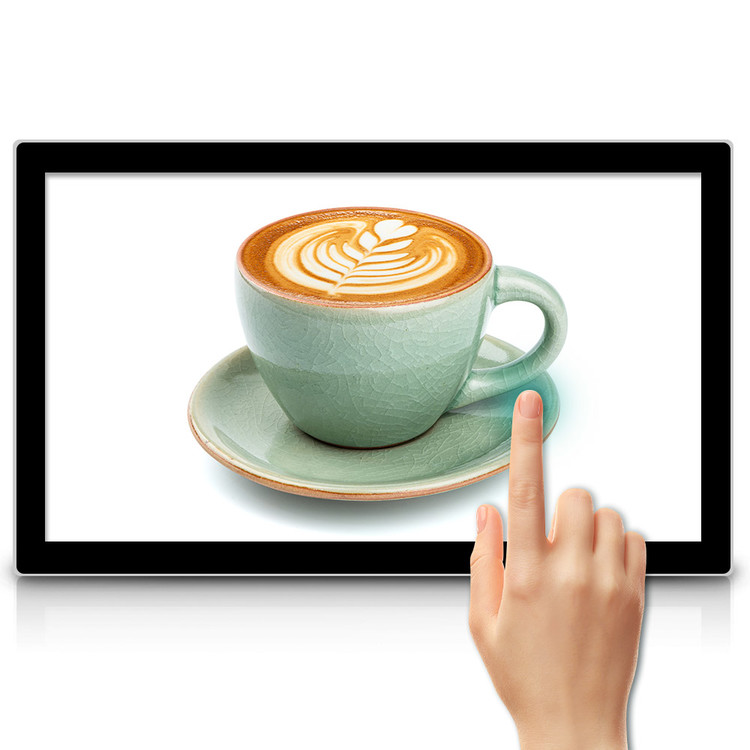

| Touch type | Capacitive touch screen | |
| Speaker | 8Ω / 2W | |
| Power | DC 12V 3A | |
| Button | Power(on/off), Volume UP,DOWN | |
| Demension | W260 x H178 x D25 (mm) | |
| Bezel size | Up, Down, left, right 21(mm) | |
| Power consumption | 9~10W | |

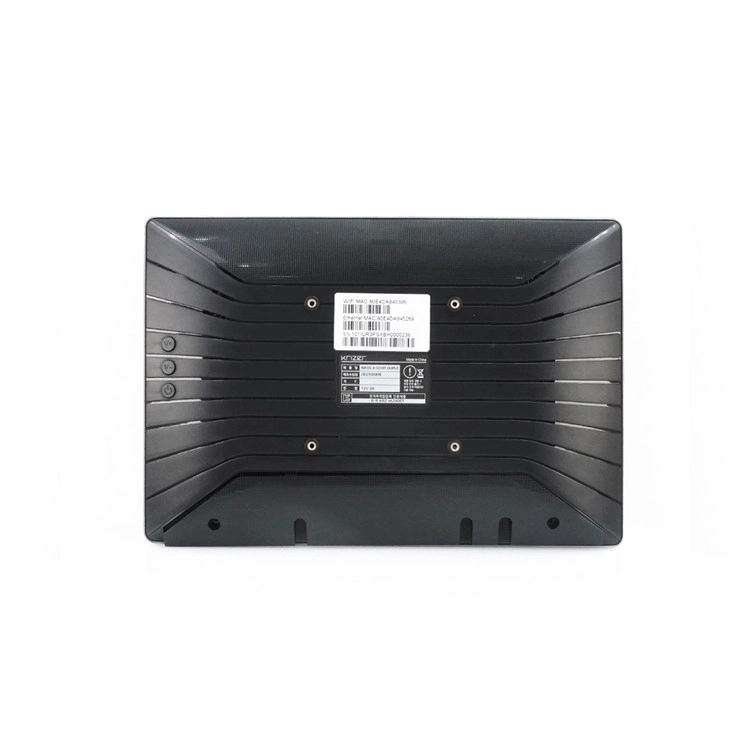

| VESA | 75 x 75 | |
| Weight | Product - 0.8KG, with package - 1.5KG | |

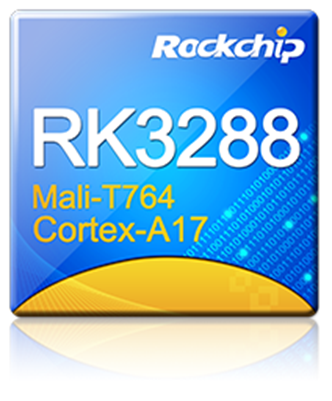

Main Board | Chipset | RK3288 Quad-Core |
| OS | Android OS 7.1 Nougat | |
| CPU | Quad-core Cortex-A17 up to 1.8Ghz | |
| GPU | Mail-T764 GPU, Supports OpenGL ES 1.1 and 2.0 | |
| High performance dedicated 2D processor | ||
| RAM | DDR3 RAM 2GB (4G optional) | |
| Flash | EMMC 5.0 16G (32G optional) | |
| Ethernet | 10/100/GIGA Ethernet LAN - RJ45 | |
| Audio | 3.5mm Audio output | |
| HDMI out | HDMI Up to 2.0 | |
| HDMI 2.0 for 4K@60Hz | ||
| TF Slot | Supprting UP to 256GB | |
| OTG | Android Debug Port | |
| Wi-Fi | 2.4Ghz / 5.8Ghz | |
| BlueTooth | 4.0 | |
| USB | USB type (Cameara, Keyboard, Mouse, ETC) | |
| Supporting USB 2.0 Speed / 2port / FAT32, NTFS, exFAT | ||

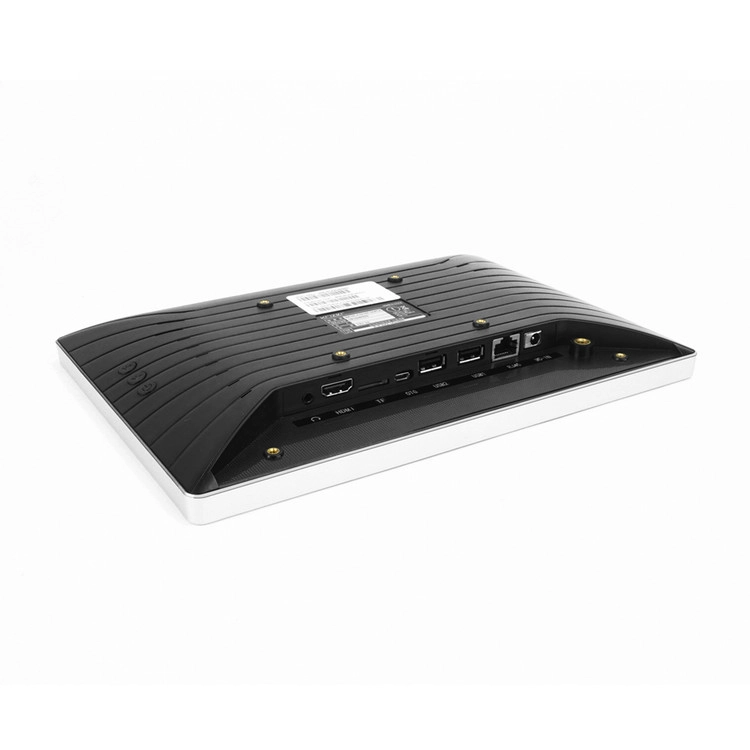

Port | GPIO | GPIO A0, A1, A2, KEY, GND |
| SPK | Built-in port | |
| MIC | Built-in port | |
| LVDS | 3.3V, 5V, 12V | |
| EDP | 3.3V, 5V, 12V | |
| RS485 | Port : /dev/ttyS1 | |
| RS232 | Port : /dev/ttyS3, /dev/ttyS4 | |
| USB | 4Pin Type 3port | |
| DC IN | 12V | |
| POE | Supporting Power over ethernet | |
| LED | RED, GREEN, BLUE | |
| IR | IR Remote | |
Function | Resolution | Support RGB/Dual LVDS/Dual MIPI-DSI/eDP interface, up to 3840*2160 resolution |
| Multi-media | 4K H265/H264 video decoders | |
| 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) | ||
| 1080P video encoder for H.264 and VP8 | ||
| Video post processor: de-interlace, de-noise, enhancement for edge/detail/color | ||
| Video Files | MKV, WMV, VC-1, SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM | |
| Video Codec | 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps, 1080P multi-format video decoding | |
| (WMV, MPEG-1/2/4, VP9, H265, H264) 1080P video coding, supports H264/H265 | ||
| Audio Files | WMA, FLAC, MP3, OGG, WAV | |
| Image Files | JPG, JPEG, MJPEG, PNG, GIF | |
| Video Bitrate | 20,000 Kbps or less | |
| rooting | You can choice root, unroot. | |
| RTC | Real Time Control (Power on/off and reboot) | |
| Screen Rotation | 0, 90, 180, 270 Setup | |
| Auto Catch log | Can save the auto catch log | |
| advertising function | Built-in Shopvod lite | |
| WOL | Wake on lan, Network service | |
| ADB | Wire - OTG port, Wireless - same network | |
| Flatform key | System root (prepare the flatform Key) | |
| Language | Android os-provided language (english, chinese, korean, german, ETC) | |
