NEW POS Stand for Payments
Itemp POS215
2023 POSTYPE KIOSK upgraded
with more convenient design and robustness

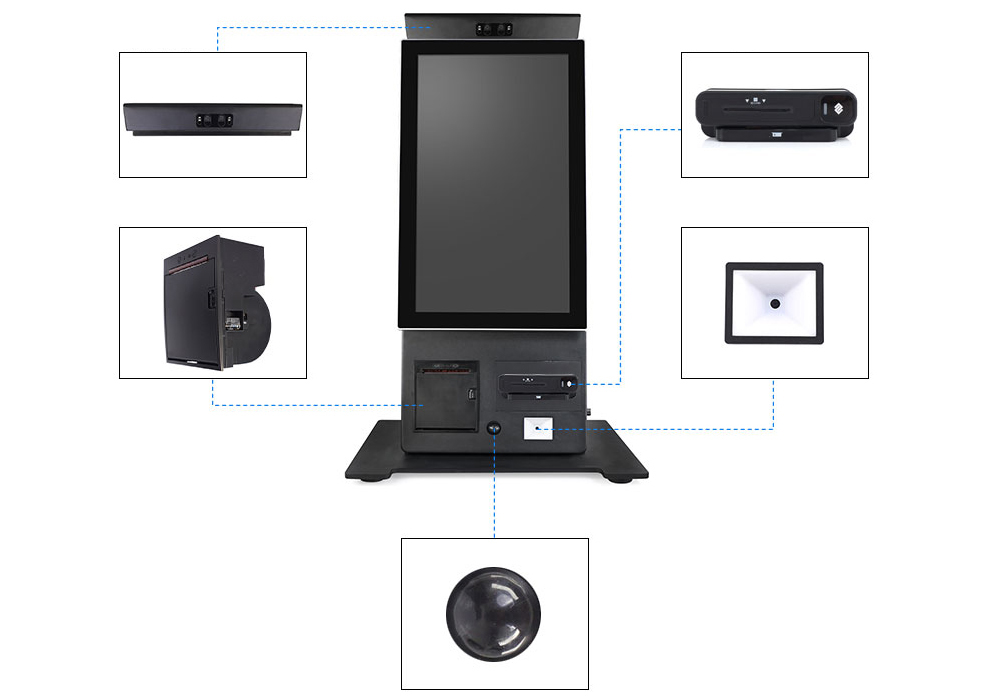

Itemp POS215 is a dual camera, receipt printer, sensor, QR reader, card reader, etc. to meet your needs
Options for all modules are available!
1080P Camera
Printer
Sensor
Barcode, QR scanner
Card-Reader
Advertising transmission function with sensor system
It is equipped with a basic sensor,
so if you are not using it for payment purposes,
you can send the advertisement you want.
**We provide technical support so that customers can customize and configure apps
Experience reliable advertising solutions after years of development and updates.
Wi-Fi
Bluetooth
Advertising Solution
RK3288
ETHERNET
USB Memory
Touch and screen height for human body
It can be used for various kidneys without any inconvenience,
The camera angle can also be easily changed.

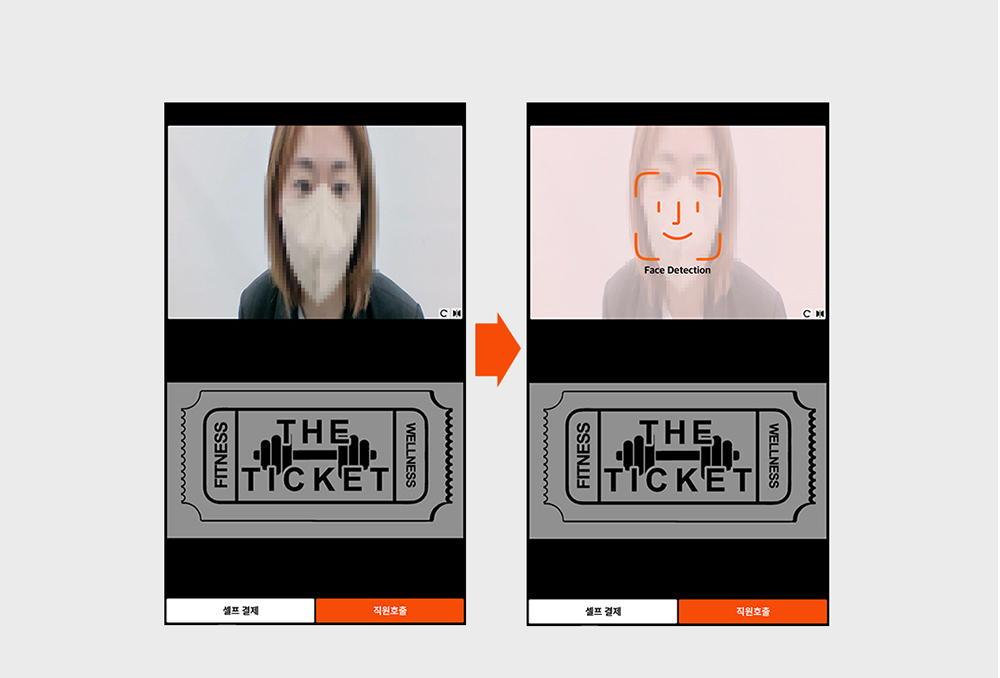

1080p Dual Camera
It can be customized and developed for various environments and
purposes such as photography and face attendance check.
Itemp POS215 with free option selection.
Safe and Robust BODY
Robust hinges and double door locks are designed to be robust.
Provide APIs appropriate
for development environments
It provides various API configurations to suit various development environments.
Provides information to make the different environments available in Android OS compatible.
Useful built-in features
1. Free advertising programs (Shopvod LITE)
2. Log-catchable AUTOLOG CATCH
3. The screen rotation function allows rotation at the desired angle.
4. Provide development environment by granting SUPERROOT authority .
5. Screen scale functionality
Supporting firmware for development
Support firmware development according to the application and
equipment porting required by the client.
Specifications
Model | POS215 |
Inch | 21.5” |
Brightness | 350 CD |
Power | 12V 7A (AC 220V) |
Resolution | 1080P multi video decode, 최대 1080 x 1920p(Full HD) |
| CPU | Quad-Core Cortex-A17 up to 1.8GHz |
| GPU | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0, 3.1 |
| Memory (RAM / FLASH) | DDR3 RAM 2GB (4G optional) / 16GB (32G optional) |
| Graphic | 1080P H.264 and 10bits H.265 video decode |
| HDMI Version | HDMI 1.3 / 1.4 / 2.0 |
| OS | Android OS 7.1 Nougat |
USB | 2.0 / USB type 2Port and 4Pin type 2Port |
| WIFI | WIFI 2.4Ghz / 5.8Ghz |
| Ethernet | 10 / 100 / GIGA Mbps |
Bluetooth | Ver 4.0 |
| Remote | IR remote - Optional |
| Separation Type | KIOSK, STAND, BOTTOM |
| External Device | 1080P Dual Camera (RGB, Infrared) - optional, QR Reader, Printer , Sensor ,Relay |
| Card Reader | Custom-made using a sample card reader |
KIOSK |
| Demension : W330 X H753 X D181mm |
| Weight : 12.9KG |
| Desk Height : H 775mm |
| Stand Height : H 1,658mm |
STAND |
| Demention : W330 X H883 X D146mm |
| Weight : 13.7KG |
BOTTOM |
| Demension : W500 X H22 X D380mm |
| Weight :10.9KG |
Input Port | |
Input Port | USB 2.0 / USB type 2Port and 4Pin type 2Port |
| Micro SD(TF) Memory slot | |
| 10/1000/GIGA Mb Ethernet | |
High-Speed eMMC extension interface | |
| Power input (AC 220V) | |
Output Port | |
Output Port | Inside Speaker |
| HDMI | |
| 3.5mm for audio output | |
| WiFi | 2.4Ghz / 5.8Ghz |
QR-Reader | |
Scan camera | 640x480 CMOS |
| LED | White LED |
| Recognition Code | QR-Code, Data-Matrix, PDF417, Aztec |
| Scan Angle | Rotation 360˚, Inclination Angle +-55˚ |
| View Angle | Horizontal 60˚ , Verticality 46˚ |
| Serial Port | RS232 |
| Operating voltage / temperature | DC 3.3V-5V / -20 ~ 70도 |
| Demension | 64.8(W) x 60.5(D) x 28.4(H) mm |
Printer | |
| Serial Port | RS232(Standard), USB 4Pin-optional |
| Print-type / density | LINE / 8dot/mm |
| Pirnt Array / Speed | The direction of the paper / 150mm/s (MAX) |
| Paper Width | 79.5+-0.5mm |
| Print Language | ASCII/GB18030/ Multilingual |
| Auto Cut | O |
| Operation voltage | DC12/24V, 4A |
| Temperature | 0~50˚ / 10~80% |
Dual Camera (RGB, IR) | |
Operating voltage / temperature | -30~70˚ / DC 5V |
| Interface | USB 2.0 |
| Resolution | RGB 1920x1080, IR 1920x1080 |
| Frame speed | 30FPS 1080P |
Sensor | |
Interface | GPIO |
| Operating voltage | DC4.5V~20V |
| Response Delay / Proposed Time | 5sec (5~300sec Adjustable ) / 1sec |
| Reaction angle / distance | Less than 110˚ / Within 7m |
| Temperature | -20~85˚ |
Media Contents | |
| Video Format | MKV, WMV, VC-1 SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM, REAL VIDEO 8/9/10, |
| 1080P, 3D decoding, BD / SBS / TAB / FP | |
| Video Codec | 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps, 1080P multi-format video decoding |
| (WMV, MPEG-1/2/4, VP9, H.264, H.265), 1080P video coding, supports H.264/H.265 | |
| Audio Format | WMA, FLAC, MP3, OGG, WAV, |
| Image Format | JPG, JPEG, MJPEG, PNG, GIF |
| Language | By android OS |
