This is a quad-core Android set-top box optimized for performance and development.
Experience the powerful processing speed of the RK3568 chipset, renowned for its excellent decoding capabilities. With efficient and stable performance, it ensures fast processing speeds. With a variety of ports, it is suitable for connecting modules with various functions.
Android Solution
KTM-S58 Box
RK3586 Chipset for ultra-fast performance.
KTM-S58 Box
Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz Processor Android's infinite scalability
Equipped with a quad-core CPU for swift information processing!

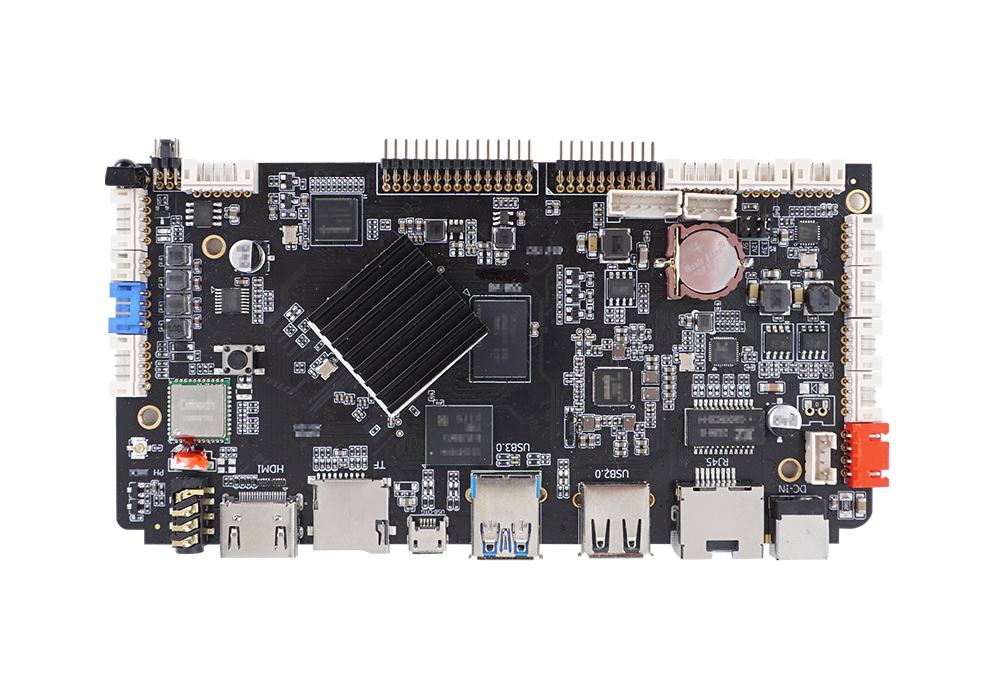

A low-power, high-performance board achieved with a powerful and efficient processor alongside excellent power control features.

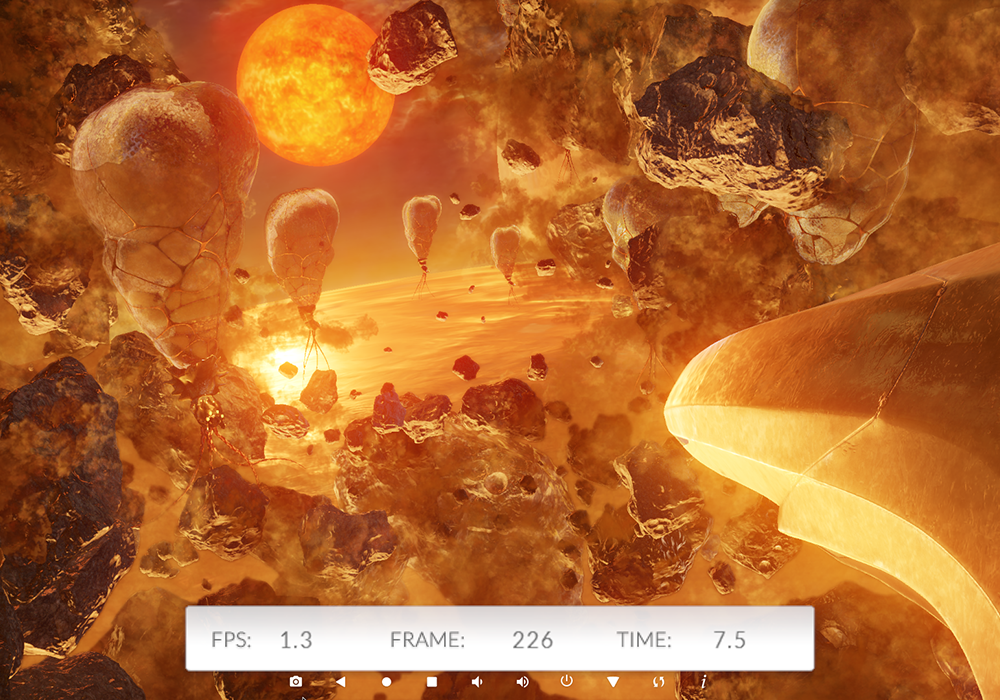

3D image implementation without problems!
operation of production facilities, etc.
Smart Factory's optimal implementation that can be implemented
with Android apps
Real-time networking required for IOT facilities
RS232 / Camera / USB / Bluetooth / Internet Device Scalability to
support a wide range of device designs

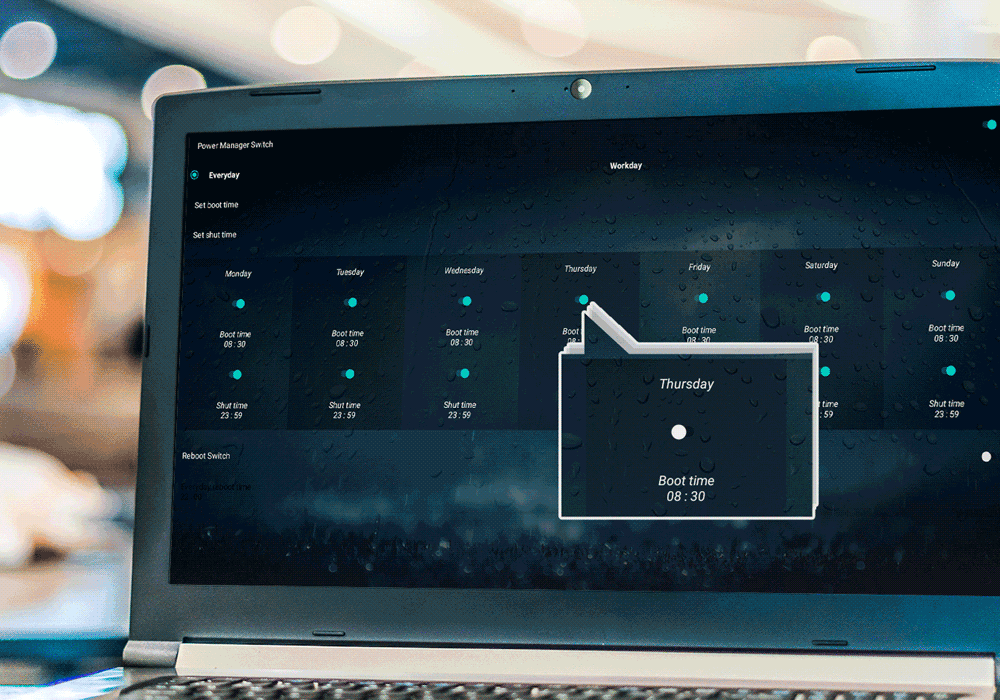

Efficient device schedule management
with RTC functionality!
Cloud advertising player configuration is possible using
the remote advertising solution app.
Remote control / Schedule function / RTC / Screen division / Multi-vision, etc.
It offers a variety of features.
Android app development!
USB 3.0 Type-C support enables faster ADB connectivity and
app porting support to build the best solution for businesses.

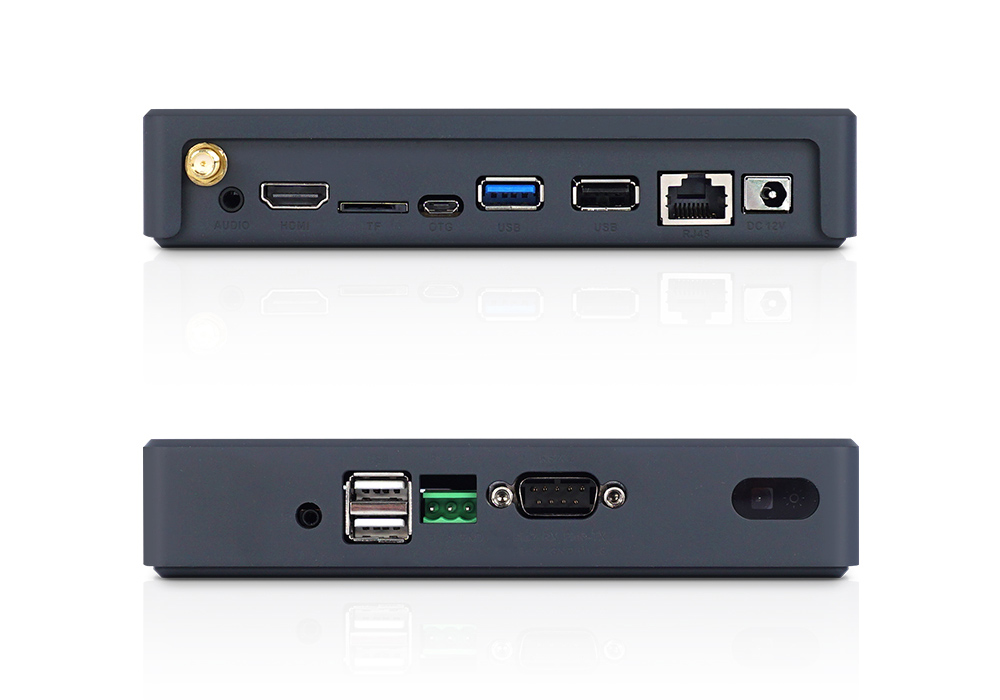

Superior peripheral compatibility
RS232/RS485 communication is possible including webcam,
USB, headphones, wireless mouse, keyboard, external hard drive.
Specifications
Model | KTM-S58 |
Demenstion | W160 x H115 x D31 (mm) |
OS | Android |
Version | Android OS 11 |
Spec | |
|---|---|
PROCESSOR | RK3568 Quad-core ARM Cortex-A55 CPU |
GPU | Mali-G52 1-Core-2EE, Supports OpenGL ES 1.1,2.0,3.2 |
MEMORY (RAM / FLASH) | LPDDR4 4GB, EMMC5.0 32G/64G (Optioanl) |
WIFI / BLUETOOTH | IEEE 802.11 a/n/ac, 2.4GHz, 5.8 |
Ethernet | 10/100/GIGA Ethernet LAN - RJ45 |
| HDMI | HDMI Up to 2.0 |
| USB Interface | USB 3.0 / USB 2.0 Port |
| RTC | RTC, Power on/off schedule |
| Power | DC 12V 2A |
| Certification Number | R-R-KRZ-STB-RK356S |
Support | |
Video | Quad-Core Cortex-A17 up to 1.8GHz MKV, WMV, VC-1 SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM, REAL VIDEO 8/9/10, Resolution 1080P, 3D decoding, BD / SBS / TAB / FP |
Video codec | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0, 3.1 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps, 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265), 1080P video coding, supports H.264/H.265 |
Audio | WMA, FLAC, MP3, OGG, WAV |
Images | JPG, JPEG, MJPEG, PNG, GIF |
Language | By android OS |
