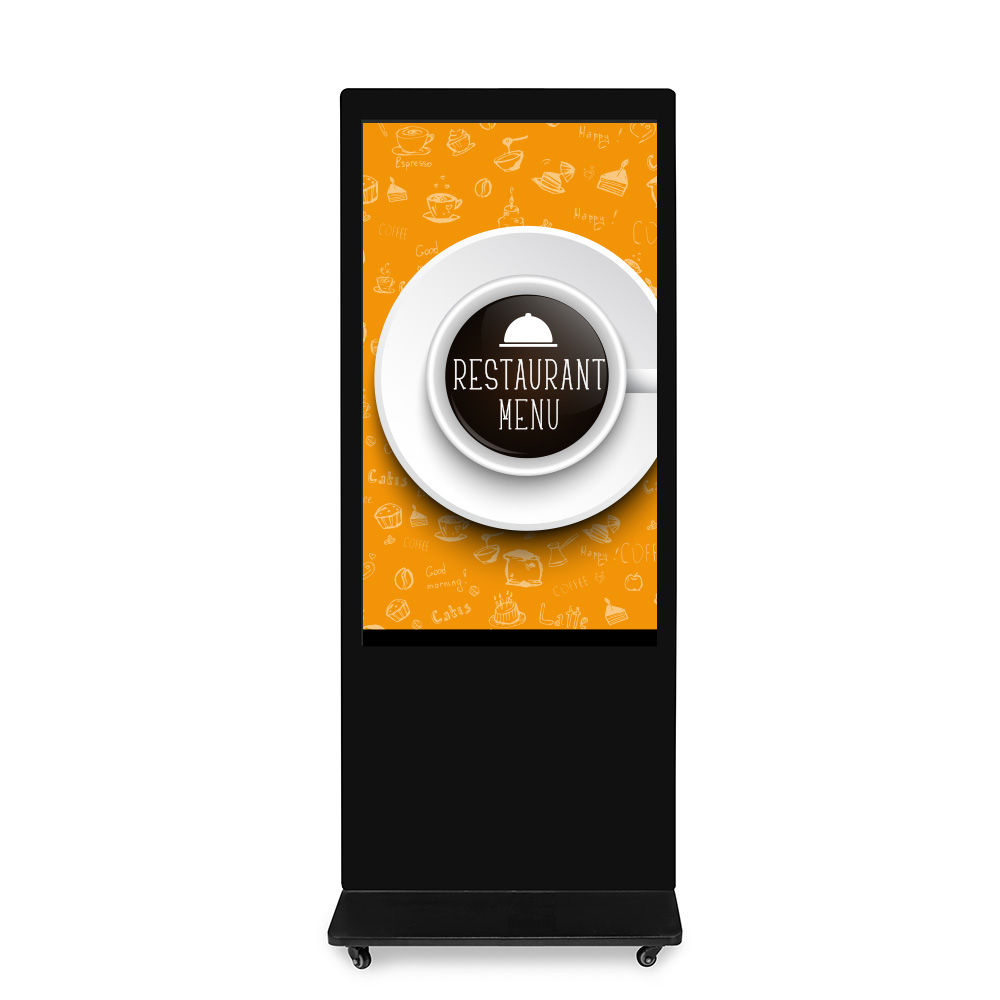

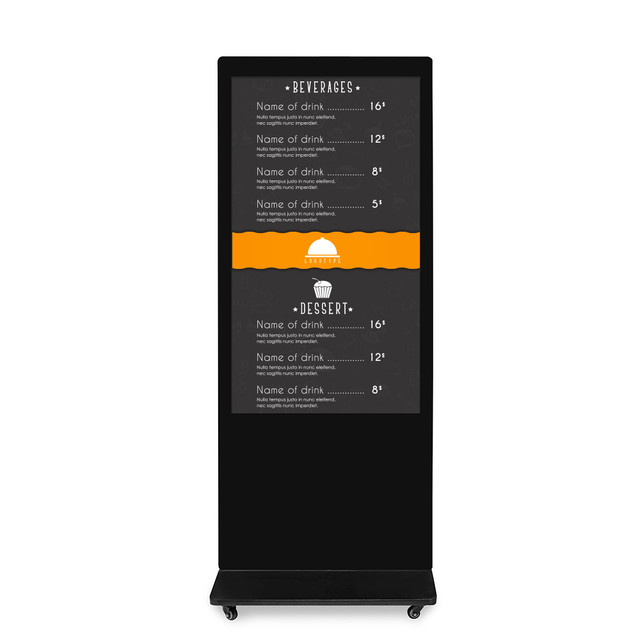

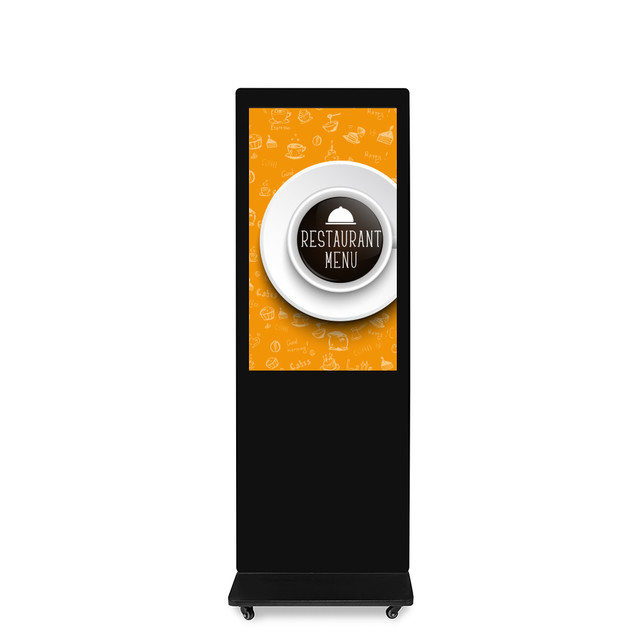

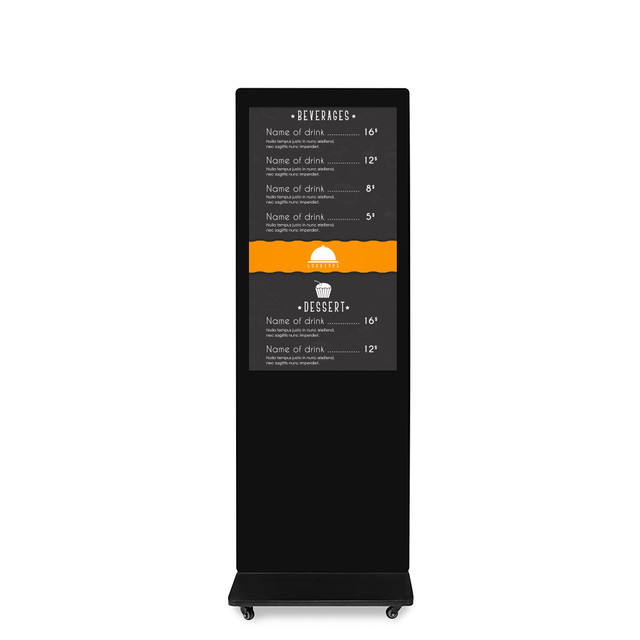

ITEMP DID KIOSK – The Ultimate Digital Signage Solution


Enhance your store’s digital experience with a smart signage solution!
The ITEMP DID KIOSK features 43-inch & 55-inch vertical displays with 1080x1920 Full-HD resolution and Android OS,

making it the perfect smart digital kiosk for advertisements and information display.

✔ Ultra-clear Full-HD display – Maximizes visual impact for ads & information
✔ Android OS powered – Fast response & app compatibility
✔ Advertisement & information display – Ideal for promotions, announcements, & digital menus
✔ Touch / Non-Touch options – Interactive content support
✔ Sleek vertical design – Optimized for retail & public spaces

43inch KIOSK non-touch
1080x1920 Vertical Screen
Only Screen
43inch KIOSK non-touch
1080x1920 Vertical Screen
Only Screen
43inch KIOSK touch
1080x1920 Vertical Screen
Touch Screen
43inch KIOSK touch
1080x1920 Vertical Screen
Touch Screen
55inch KIOSK non-touch
1080x1920 Vertical Screen
Only Screen
55inch KIOSK non-touch
1080x1920 Vertical Screen
Only Screen
55inch KIOSK touch
1080x1920 Vertical Screen
Touch Screen
55inch KIOSK touch
1080x1920 Vertical Screen
Touch Screen

2.4GHz & 5GHz WiFi Support – Smart, Wireless, and Limitless!

Experience wireless freedom with optimal connectivity!

The ITEMP digital display supports 2.4GHz & 5GHz dual-band WiFi, allowing for easy installation and unrestricted usage anywhere.

Simply connect to power, and enjoy fast, stable network connectivity for efficient remote content management and real-time data streaming.

Stable Connectivity with Wired & Wireless Network Support!

Reliable connectivity for seamless operation!

The ITEMP digital display supports 10/100Mbps Ethernet and 2.4GHz & 5GHz dual-band WiFi,

ensuring flexibility for both wired and wireless networks.

Enjoy high-speed wired connectivity for smooth high-resolution video streaming and

real-time content updates without interruptions.

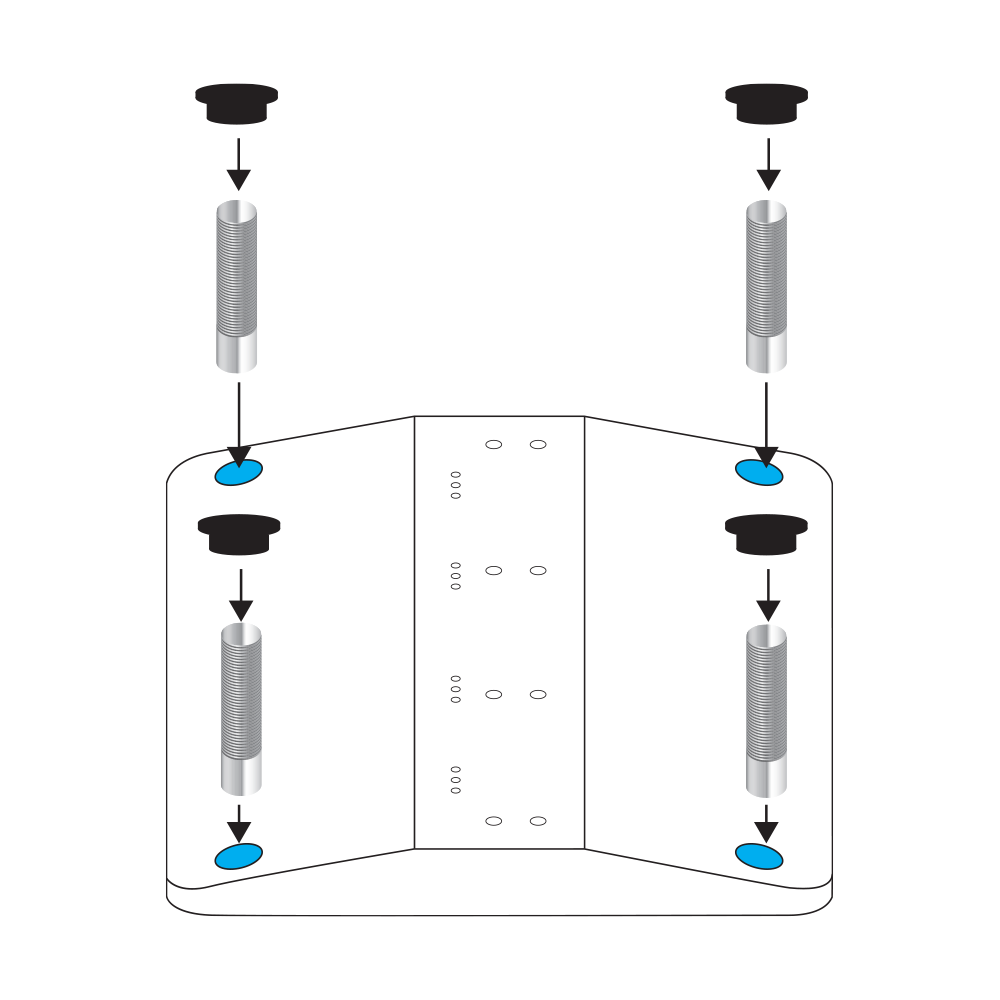

Equipped with 4 Wheels! Easy to Move & Lock in Place!


Move heavy digital displays with ease!

The ITEMP digital display comes with 4 built-in wheels,

including 2 lockable casters for secure positioning.

Easily transport the display when needed, and lock it in place for stable operation in retail stores, exhibitions, and events.

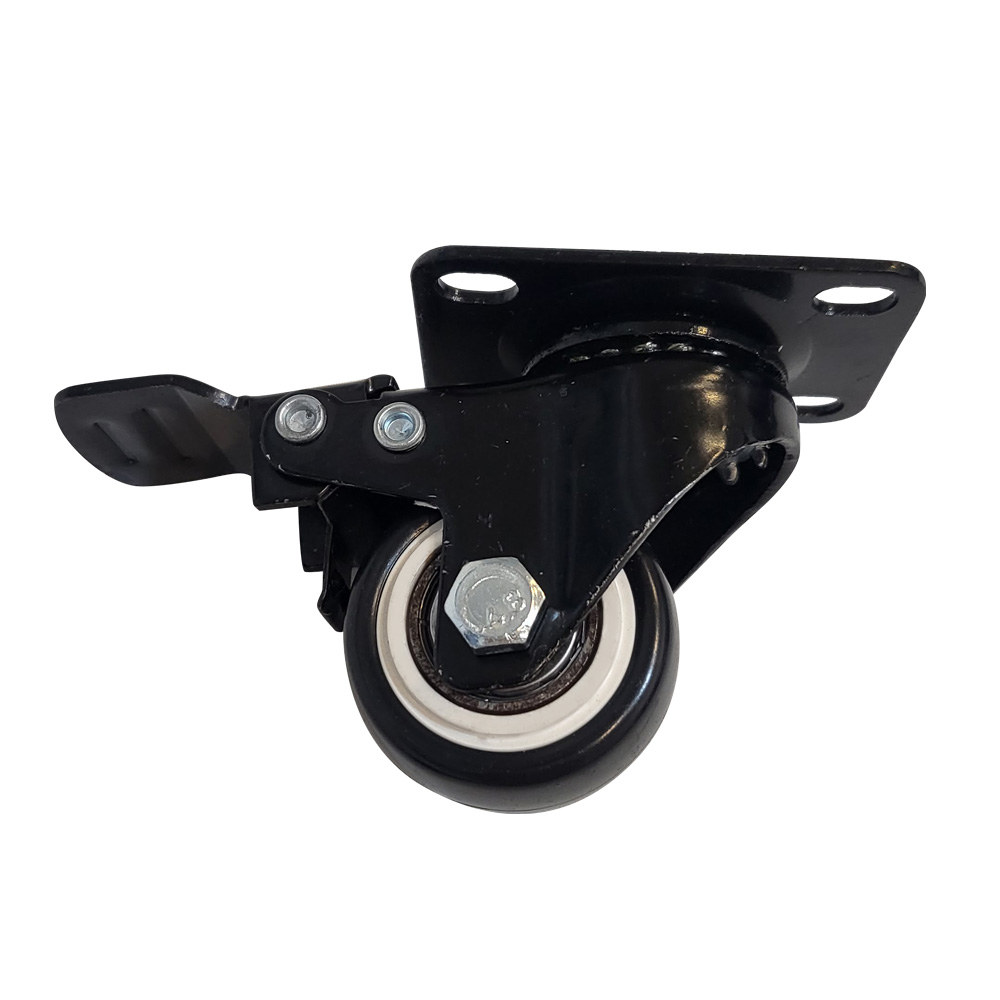

LOCKING WHEEL
LOCKING WHEEL

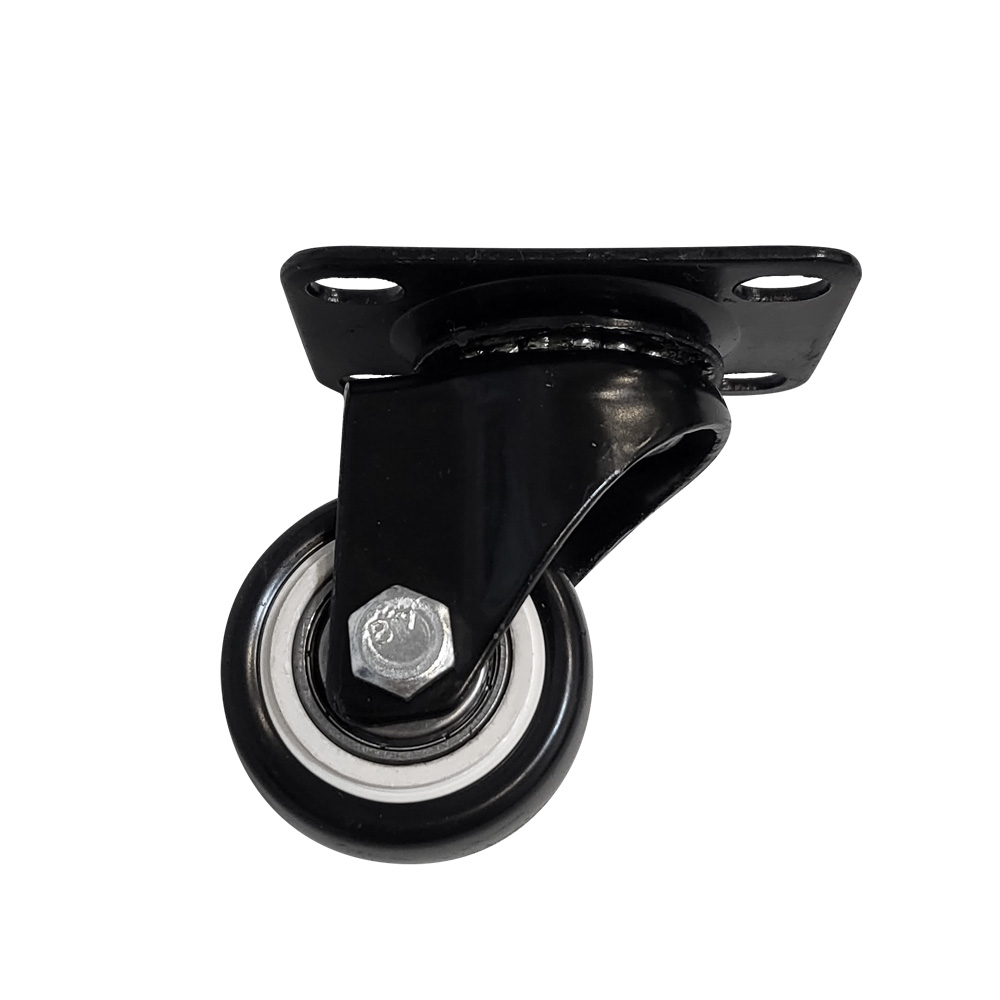

Nomally WHEEL
Nomally WHEEL

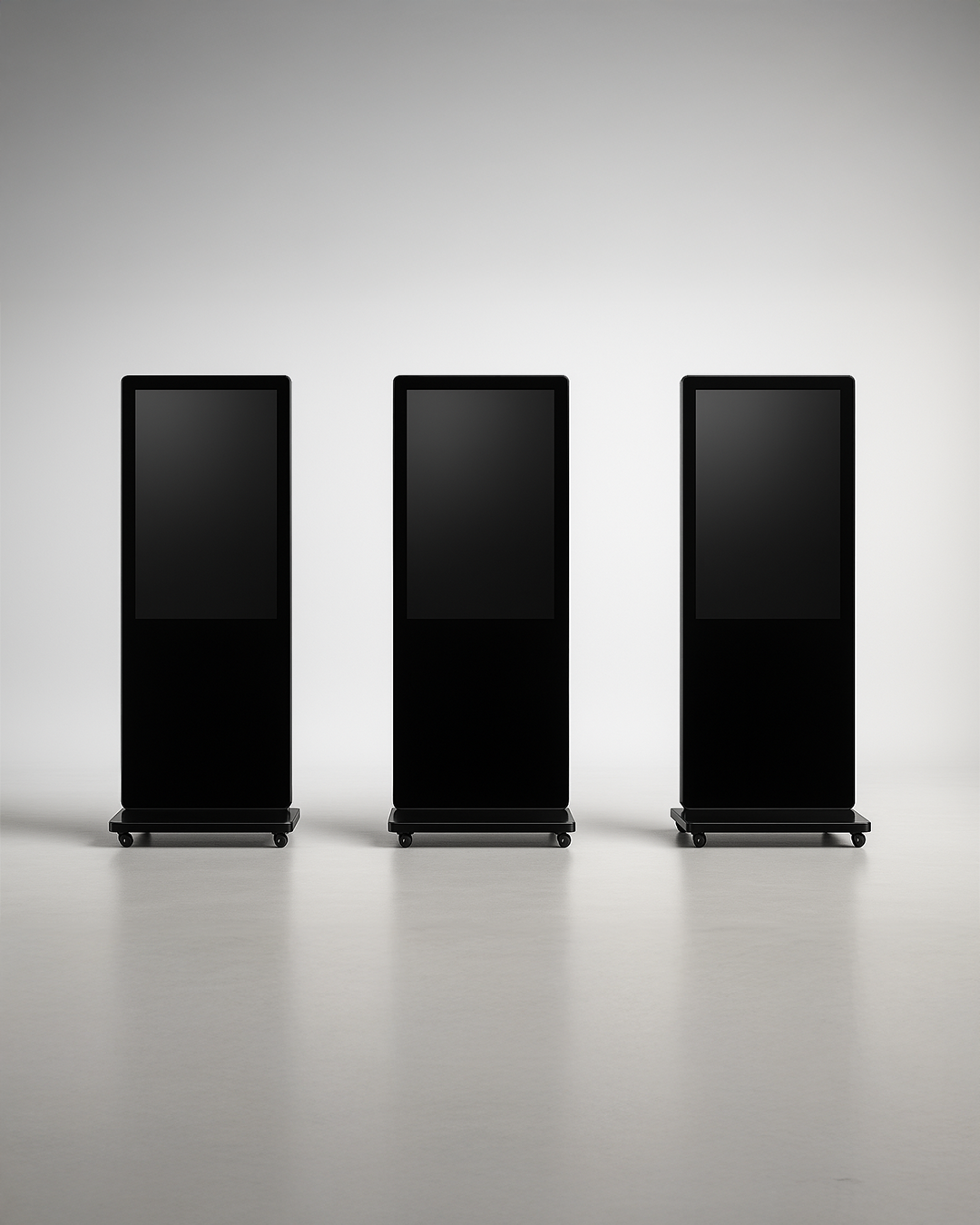

Tailor-Made Digital Displays & Flexible Installation Options!

Providing the perfect solution for your business environment!

The ITEMP digital display is fully customizable based on your order requirements.

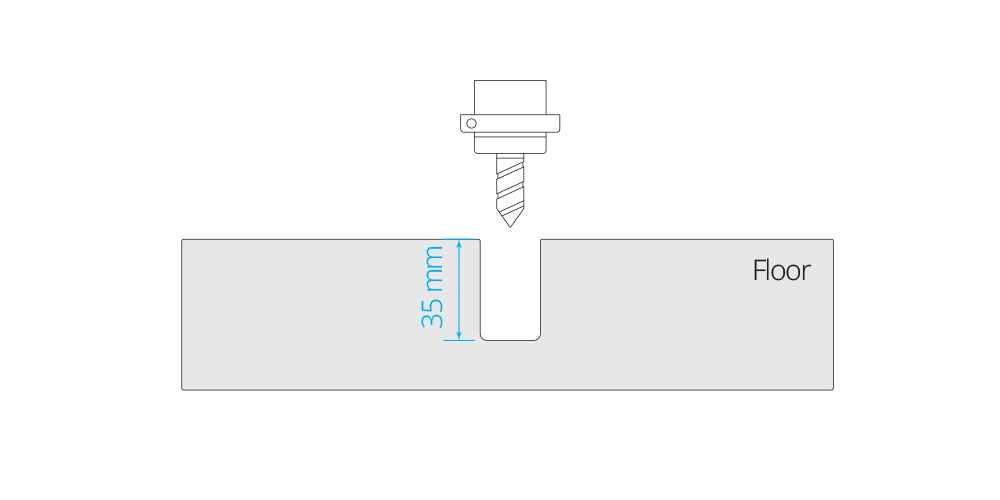

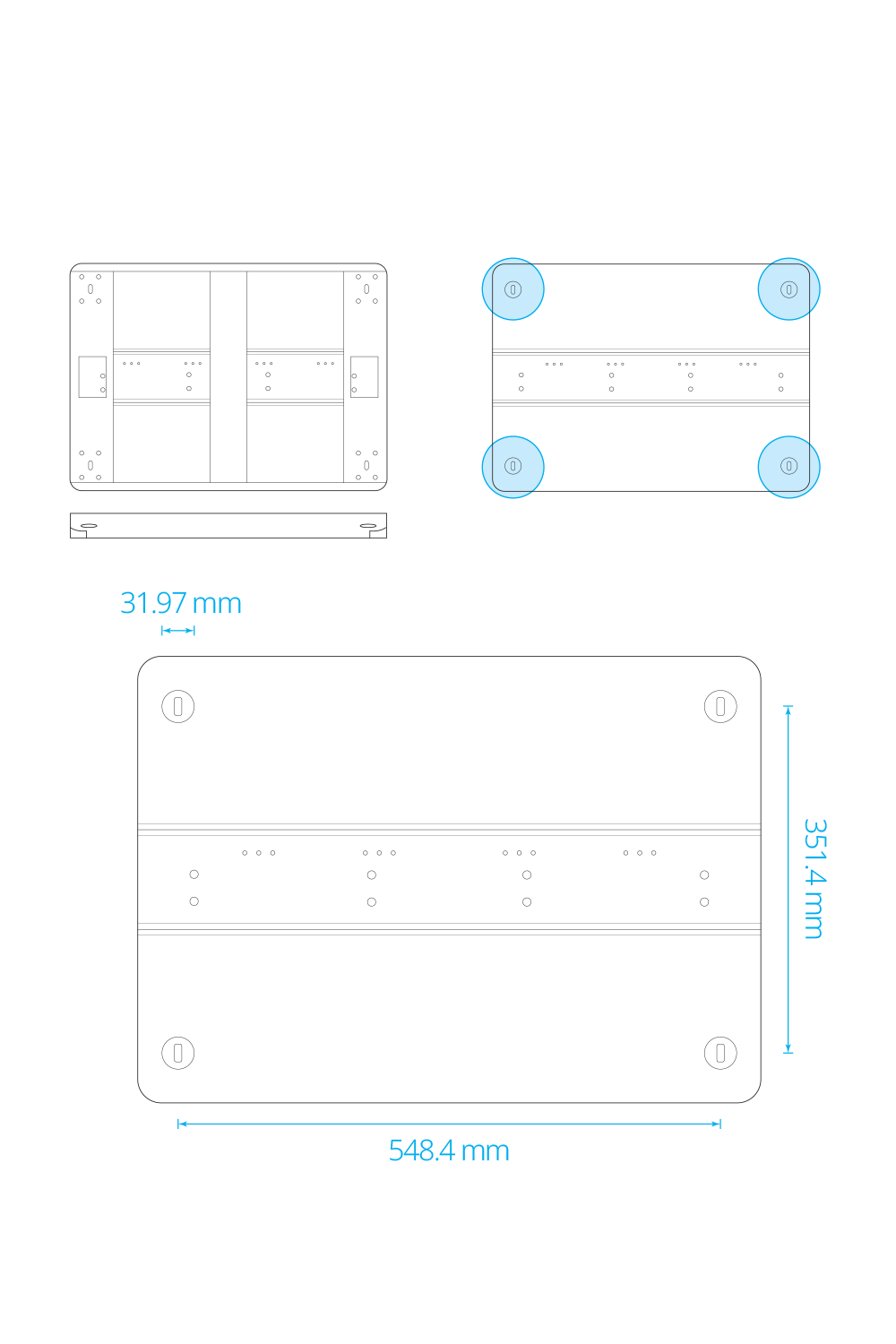

You can choose to replace wheels with anchor holes for fixed installation,

and we can adjust the product design to comply with each country’s safety regulations and certifications.


💡 Customizable installation options – Choose between movable wheels or secure anchor fixation

💡 Compliance with international safety standards – Design and specifications tailored as needed

💡 Pre-order customization available – Request a sample to verify the configuration before ordering

📢 Discover the ideal display solution tailored to your needs today!

10-Point Multi-Touch for a More Intuitive Interaction!

Deliver a smarter touch experience!

The ITEMP digital display features a 10-Point Capacitive Touchscreen, ensuring smooth, precise touch responses.

With proven reliability through extensive enterprise deployments, our stable and fast-reacting touch technology guarantees seamless user interaction.

💡 Android OS-powered, making it ideal for advertising kiosks, retail stores, self-ordering systems, electronic shelf labels (ESL), and industrial automation displays

💡 Multi-touch support for interactive content – Perfect for touch-based menus, kiosk applications, and digital information boards

💡 Fast response & high accuracy – Supports scrolling, pinch-to-zoom, and multi-finger gestures

Fully Customizable to Fit Your Business Needs!

The ITEMP digital display is fully customizable based on your order requirements.
You can choose to replace wheels with anchor holes for fixed installation, and we can adjust the product design to comply with each country's safety regulations and certifications.
Additionally, different chipsets can be applied to optimize performance.

💡 Customizable installation options – Choose between movable wheels or secure anchor fixation
💡 Compliance with international safety standards – Design and specifications tailored as needed
💡 Pre-order customization available – Request a sample to verify the configuration before ordering
💡 Supports RK3288, RK3399, RK3568, RK3588, and Windows OS on ARM board designs
💡 Leverages an extensive portfolio of successfully deployed projects for customized solutions
💡 Tailor your display configuration based on your preferred specifications & application needs

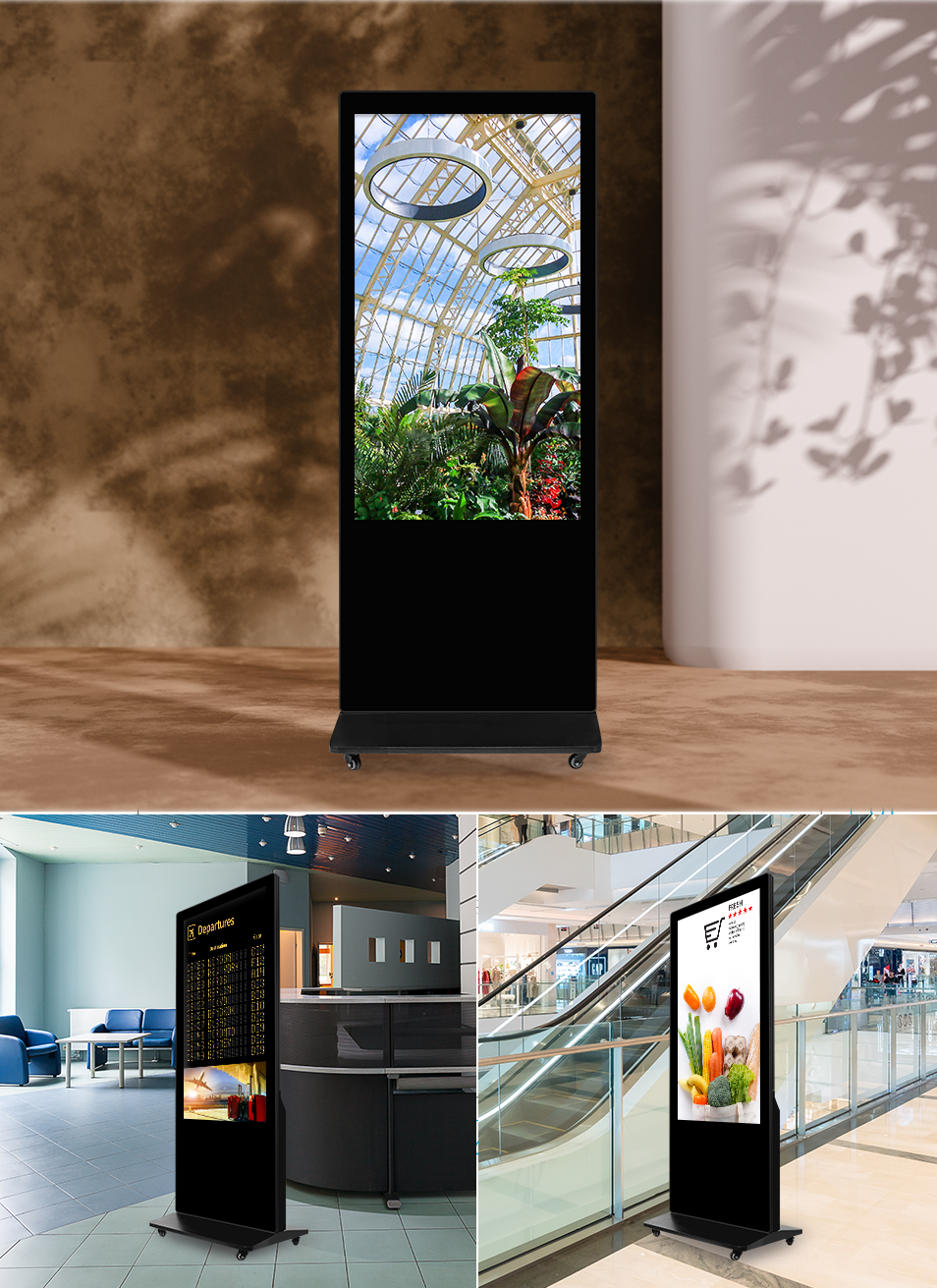

Applicable Industries & Environments

ITEMP digital displays are designed to enhance communication and advertising across various commercial and industrial sectors.

✔ Retail & Shopping Malls – Digital signage, promotions, and advertising

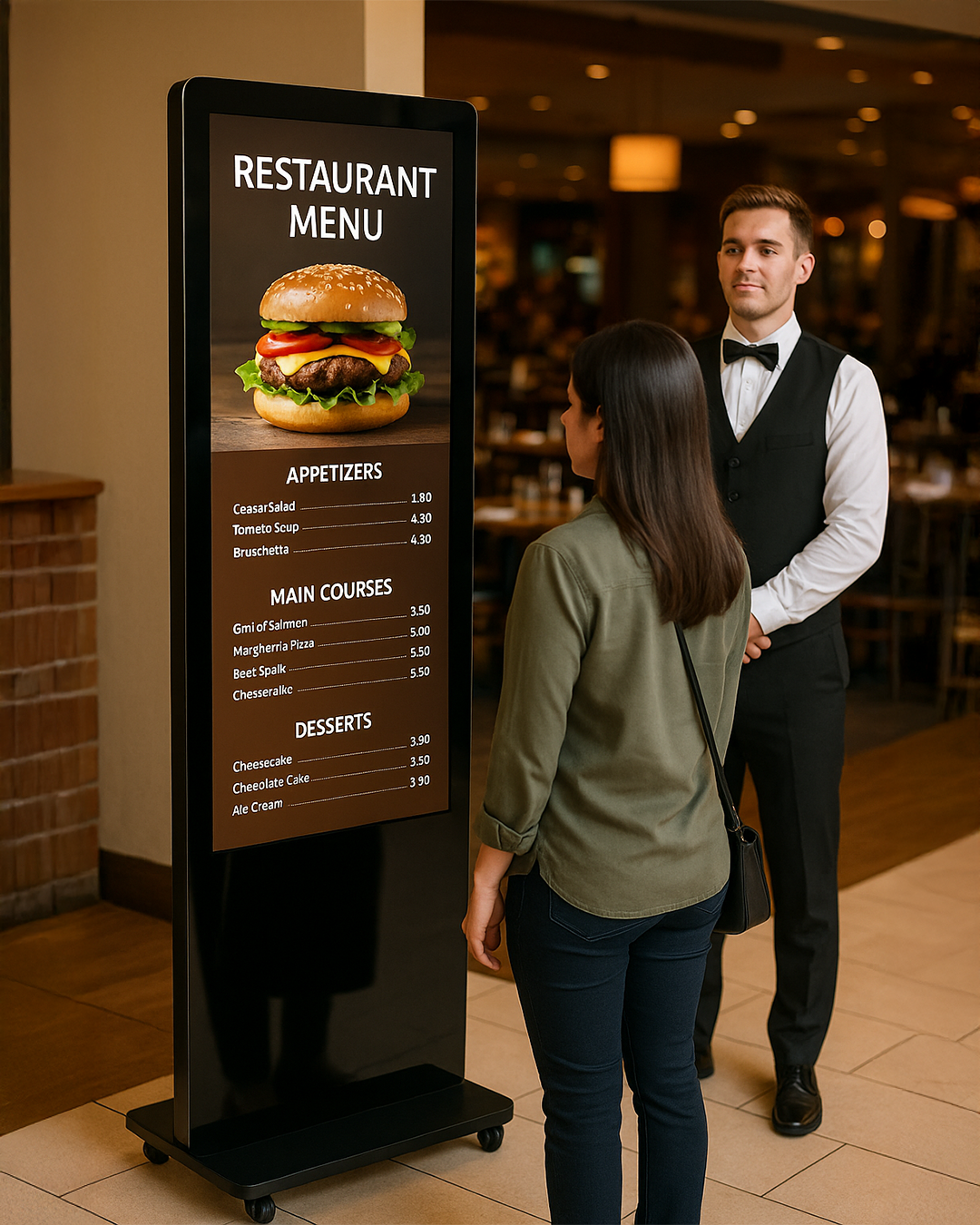

✔ Franchises & Restaurants – Kiosks, interactive touchscreen ordering systems
✔ Hotels & Hospitality – Guest information, check-in/out displays

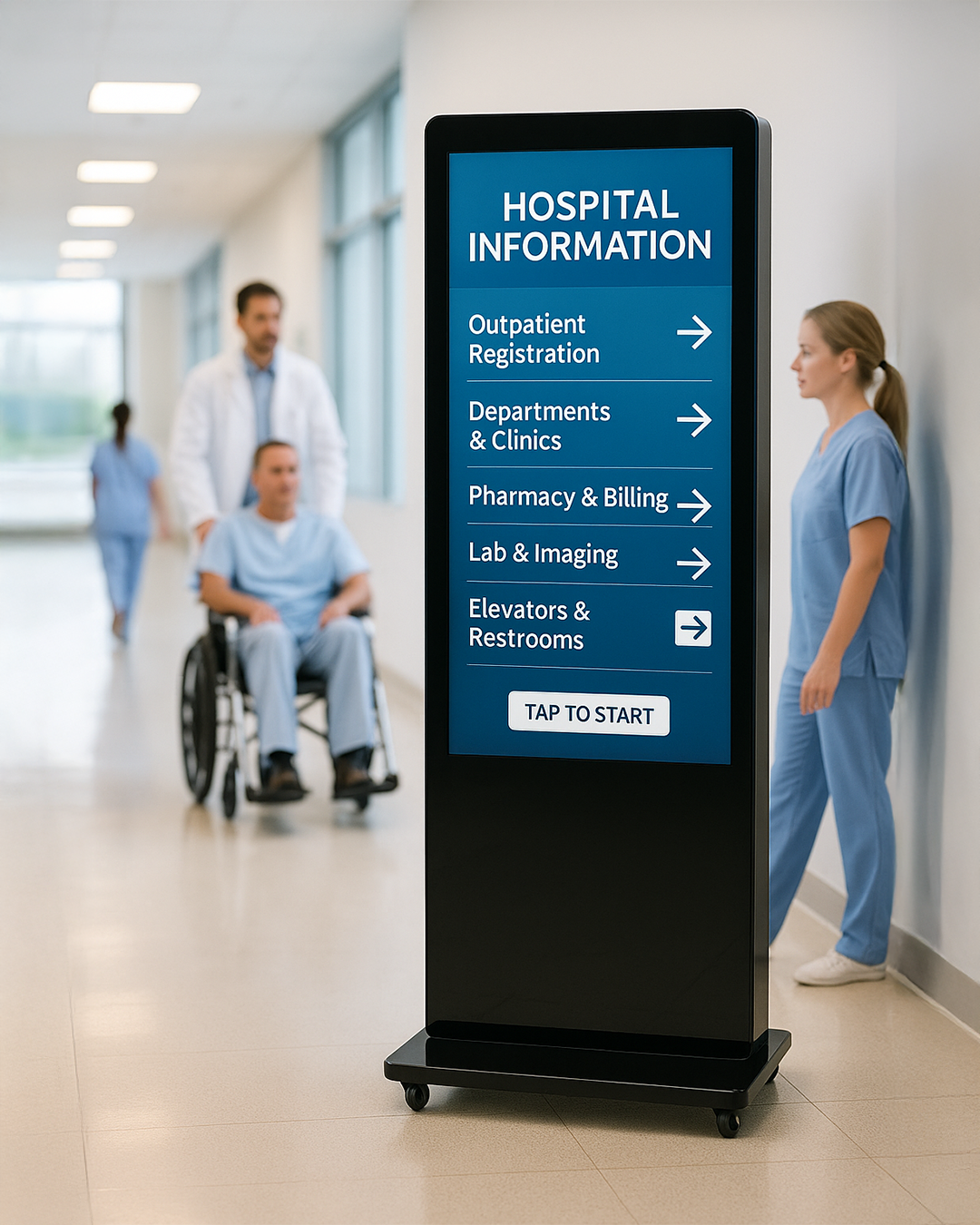

✔ Hospitals & Healthcare – Patient information, health awareness screens
✔ Public Institutions & Transportation – Smart queue management, public information boards
✔ Corporations & Exhibition Halls – Business presentations, promotional content
✔ Educational Institutions & Libraries – Smart learning materials, digital bulletin boards
✔ Sports Arenas & Event Halls – Real-time information, scoreboard integration

Efficient power management RTC functionality!


RK3288 Chipset ARM board (Basic model)


Fast processing with high-performance quad-core CPUs.
Optimal wide viewing angle provided by IPS panels.
Dual speakers allow you to play music in the store!
Playable a wide range of Android solutions



Superior peripheral compatibility


RS232/RS485 communication is possible including webcam,

USB, headphones, wireless mouse, keyboard, external hard drive.



Provide APIs appropriate

for development environments

It provides various API configurations to suit various development environments.

Provides information to make the different environments available in Android OS compatible.




Useful built-in features

1. Free advertising programs (Shopvod LITE)

2. Log-catchable AUTOLOG CATCH

3. The screen rotation function allows rotation at the desired angle.

4. Provide development environment by granting SUPERROOT authority .

5. Screen scale functionality

Supporting firmware for development

Support firmware development according to the application and

equipment porting required by the client.


Decades of Expertise in Custom Display Manufacturing

With years of experience in the industrial display and technology sector,
ITEMP has established itself as a trusted name in crafting high-quality open frame displays.
We understand the complexities of diverse industries and deliver solutions that align
with specific operational requirements, ensuring seamless integration and optimal performance.

Fully Customizable Solutions

Every project is unique, and so are our solutions. At ITEMP Technology, we specialize in customized designs to meet your precise needs

  • Screen Sizes: From small to large displays, we offer a wide range of size options.
  • Resolution and Brightness: High-resolution and bright displays for visibility even in challenging conditions.
  • Touchscreen Options: Capacitive or resistive touchscreens tailored to your applications.
  • Durability Features: Displays designed to withstand harsh environments with features like water resistance,
    dustproofing, and anti-glare coatings.

Seamless Integration with Advanced Technology

Our open frame displays are compatible with a wide array of modern technologies, including

  • ARM-based Android boards for AI-driven applications.
  • Windows-based systems for enterprise-level operations.
  • Multiple connectivity options (HDMI, DisplayPort, DVI) for flexible deployment.

We ensure that our displays integrate seamlessly into your existing systems, minimizing setup time and maximizing efficiency.

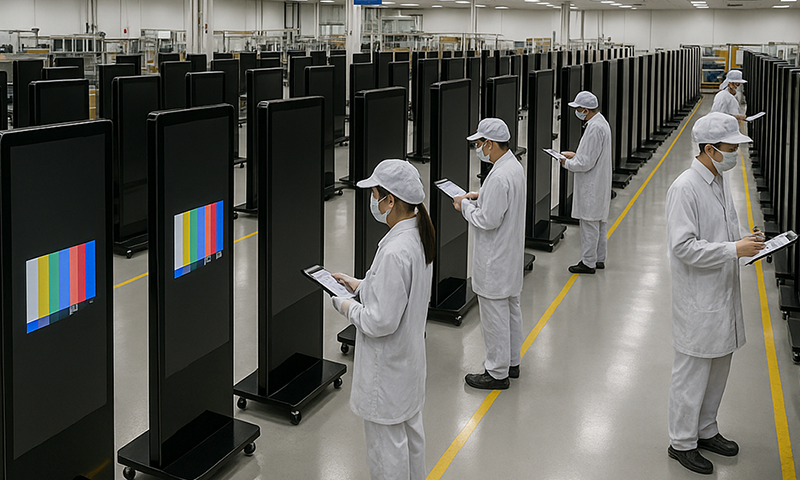

Cutting-Edge Manufacturing Facilities

ITEMP operates state-of-the-art production facilities with advanced manufacturing capabilities. This allows us to

  • Ensure consistent quality through rigorous testing and inspection.
  • Scale production to meet high-volume orders without compromising on lead times.
  • Employ eco-friendly practices for sustainable manufacturing.

Reliable 24/7 Operation for Industrial Environments

ITEMP’s open frame displays are designed to perform under extreme conditions, including:

  • Continuous 24/7 operation for demanding industries like healthcare, automation, and retail.
  • Resistance to temperature fluctuations, humidity, and shocks, ensuring long-term durability.

Global Clientele and Proven Track Record

Over the years, ITEMP Technology has partnered with some of the world’s leading brands, delivering customized display solutions that have earned their trust. Our client portfolio includes Samsung, LG, Hyundai, CJ, and more, showcasing our ability to meet the highest industry standards.

Dedicated Customer Support and After-Sales Services

Our relationship with clients extends beyond delivery. At ITEMP, we offer

  • Expert Consultation: Professional guidance during the design and development process.
  • After-Sales Support: Reliable maintenance and troubleshooting services.
  • Warranty Programs: Comprehensive coverage for peace of mind.

Applications Tailored to Your Industry

Our open frame displays are ideal for a variety of applications

  • Industrial Automation: Real-time monitoring and control systems.
  • Retail and Hospitality: Custom POS systems and interactive displays.
  • Healthcare: Diagnostic and monitoring devices.
  • Transportation: Kiosks, ticketing systems, and passenger information displays.

Specifications

ModelKR43V-S58TKR43V-S39T
OSAndroid 11.0Android 11.0
CPURK3568,Quad-core Cortex-A55,Up to 2.0GHZ RK3399,Dual-core Cortex-A72 up to 1.8GHz+Quad-core Cortex-A53 up to 1.4GHz
GPUMali-G52 MP2, OpenGL ES 1.1/2.0/3.2,Vulkan 1.1,OpenCL 2.0Mali-T860 GPU, OpenGL ES 1.1/2.0/3.2,Vulkan 1.1,OpenCL 2.0
NPU1TOPS,INT8/INT16 hybrid operationnull
RAM4G (8G optional)4G (8G optional)
ROM32G (64G-128G optional)32G (64G-128G optional)
NetworkWLAN 2.4/5.8GHZ ,BT V4.2; Ethernet GLAN(1000Mbps)WLAN 2x2 AP MIMO 2.4/5.8GHZ ,BT V5.0; Ethernet GLAN(1000Mbps)
Video DecodingH.265 4K@60fps,1080p@60fps Mpeg1/2,Mpeg4,SP/ASP GMC,H.263,H.264,WMV9/VC-1 VP9,VP8,etc.H.265/H.264 4K@60fps,1080p@60fps Mpeg1/2,Mpeg4,SP/ASP GMC,H.263,H.264,WMV9/VC-1 VP9,VP8,etc.
Photo DecodingJPEG,BMP,PNG,GIF etc.JPEG,BMP,PNG,GIF etc.
Special functionsHardware watch time dog make system running stableHardware watch time dog make system running stable
Screen rotation can change any display direction of four sidesScreen rotation can change any display direction of four sides
Power management make device reasonable working schedulePower management make device reasonable working schedule
Contents management system to publish any programsContents management system to publish any programs
Automatically cleared the redundancy by periodicallyAutomatically cleared the redundancy by periodically
Provide API document for easy match with applicationsProvide API document for easy match with applications
Touch10 points capacitive touch (it can be no-touch)10 points capacitive touch (it can be no-touch)
Panel featuresSize: 43 inchSize: 43 inch
Resolution: 1080x1920Resolution: 1080x1920
Display area: 529.254mm (H)x940.894mm(V)Display area: 529.254mm (H)x940.894mm(V)
White Luminance: 400nitsWhite Luminance: 400nits
Contrast Ratio: 1200:1Contrast Ratio: 1200:1
Viewing angle: 89(R)/89(L)/89(U)/89(D) degreeViewing angle: 89(R)/89(L)/89(U)/89(D) degree
LED Life: Min 30000 HrsLED Life: Min 30000 Hrs
InterfaceUSB2.0x1;USB3.0x1;RJ45x1; AC powerx1;Power switch x1;ANTx1;USB2.0x1;USB3.0x1;RJ45x1; AC powerx1;Power switch x1;ANTx2;
Speaker8Ω 5W8Ω 5W
Operating Temperature-20 to +60 degree-20 to +60 degree
PowerAC 100-240V 50/60HzAC 100-240V 50/60Hz
AccessoryAC power cablex1; Wheelx4; Keyx2; User Manuelx1;(optional) AC power cablex1; Wheelx4; Keyx2; User Manuelx1;(optional)
HousingMaterial: Metal; Color: white or black;Material: Metal; Color: white or black;

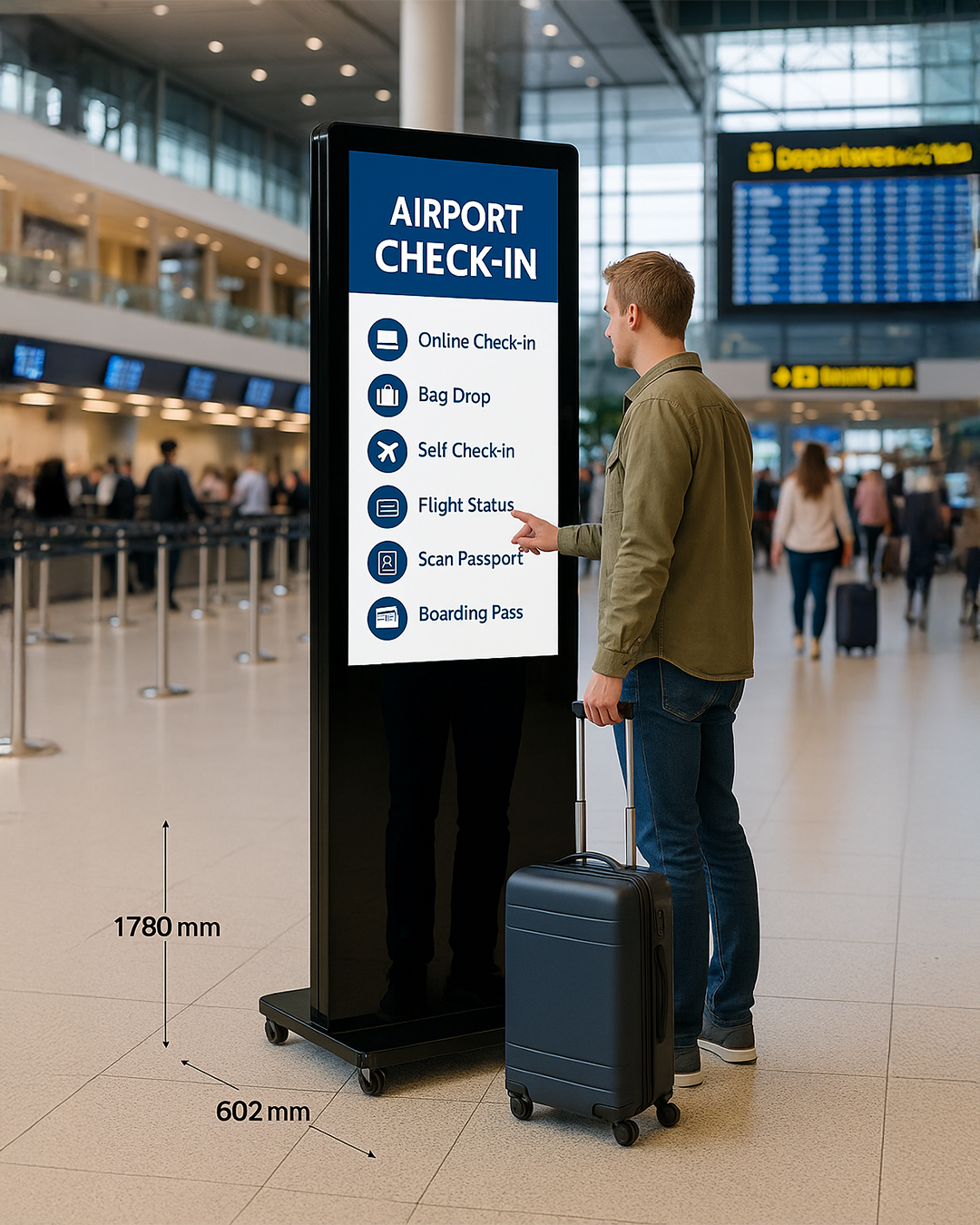

size: 602.4mmx1780.5mmx83.8mmsize: 602.4mmx1780.5mmx83.8mm
Net weight37.5kg37.5kg
Package Size1875mmx245mmx750mm1875mmx245mmx750mm
InstallationStanding on the groundStanding on the ground
