Attracting the customer's attention
Wide 32:9 Display
Asymmetric wide display suitable for small spaces and table placement!
It is excellent for information delivery and can be used more immersively than printed materials through special effects and animation effects.
[Information] Size Display

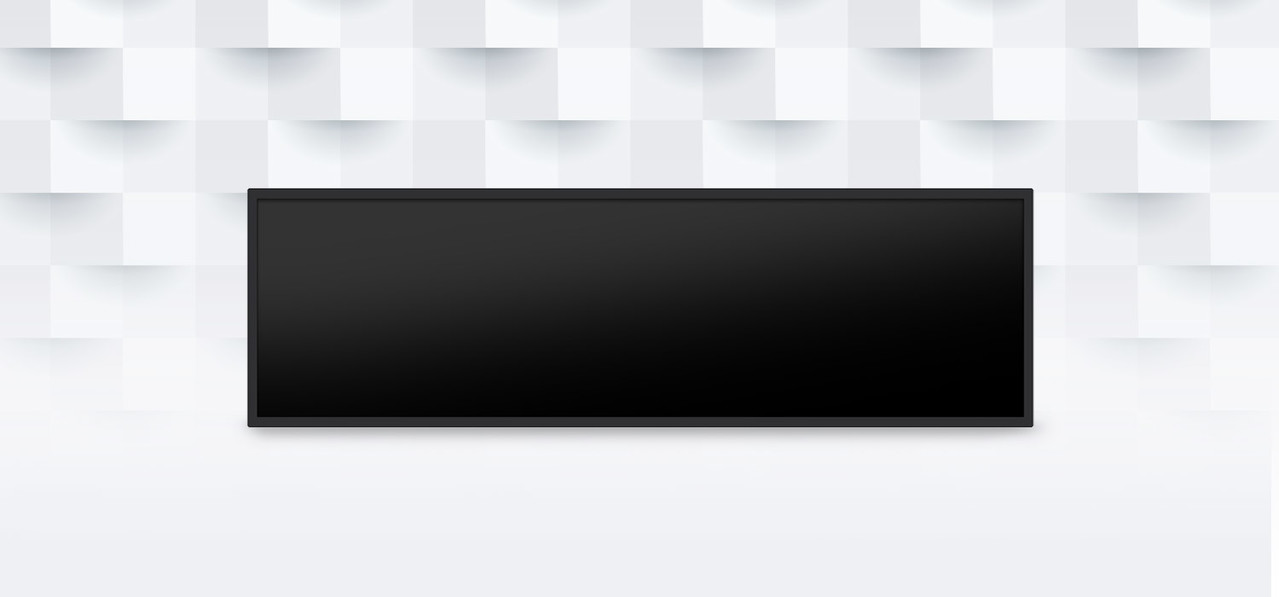

BAR 29V- L97
SCREEN SIZE : 1920 X 540 (px)
CCD : 700CD
DIMENTION : W720.8 x H226.25 x D45 (mm)
INCH/WEIGHT : 29 Inch / 4.8KG
STAND TYPE : WALL

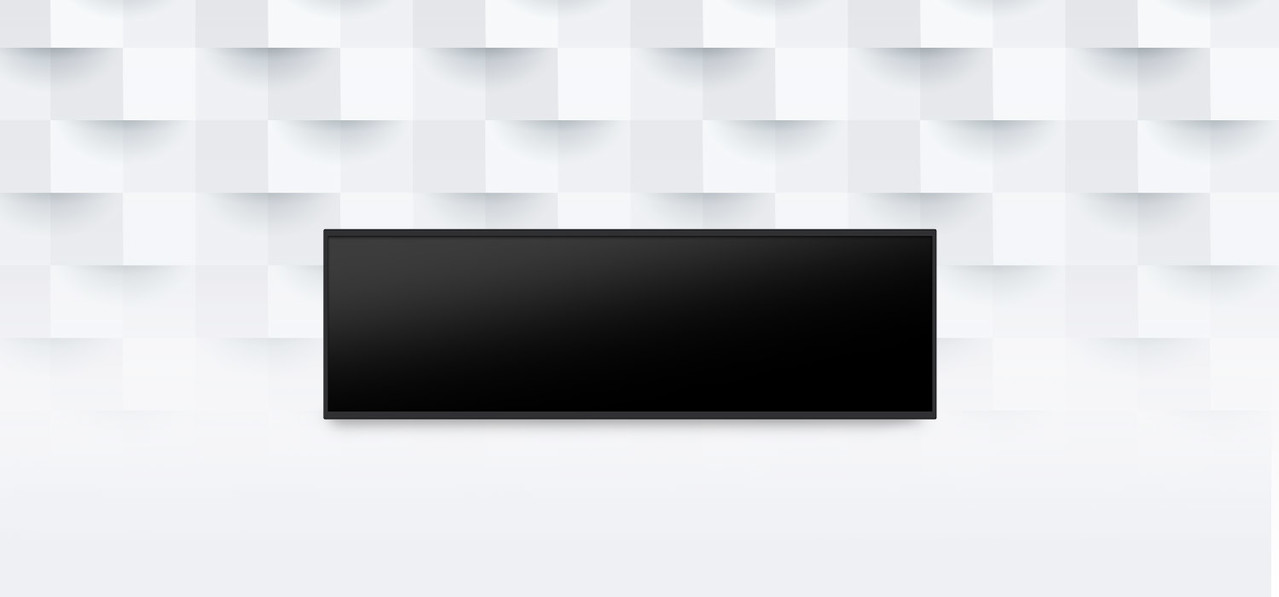

BAR 37V- L97
SCREEN SIZE : 1920 x 540 (px)
CCD : 700CD
DIMENTION : W915 x H281 x D46.20 (mm)
INCH/WEIGHT : 37 Inch / 7.6KG
STAND TYPE : WALL
BarDisplay
It's made of strong metal
more safely
It is made of a sturdy metal body that is resistant to external impact.
high-intensity wide viewing angle
Equipped with IPS display
indoor electronic boards, placards, etc
Try implementing a variety of solutions.
Equipped with a quad-core CPU for
swift information processing!
A low-power, high-performance board achieved with a powerful and efficient processor alongside excellent power control features.
Create unique spaces with various Android solutions and Bardisplay, featuring a distinctive aspect ratio."
Compatibility with USB & Bluetooth external devices
You can connect various USB devices such as USB headphones,
wireless mice, keyboards, external hard drives, etc.
Try connecting Bluetooth-enabled external devices as it supports Bluetooth 4.0.
Provide APIs appropriate
for development environments
It provides various API configurations to suit various development environments.
Provides information to make the different environments available in Android OS compatible.
Useful built-in features
1. Free advertising programs (Shopvod LITE)
2. Log-catchable AUTOLOG CATCH
3. The screen rotation function allows rotation at the desired angle.
4. Provide development environment by granting SUPERROOT authority .
5. Screen scale functionality
Supporting firmware for development
Support firmware development according to the application and
equipment porting required by the client.
Specifications
Screen output | LVDS |
| built-in speaker | 8Ω / 3W |
| Power | 220V AC |
| Bezel Size | Up, down :11(mm) left, right : 5(mm) |
| Power consumption | 26~28W |
Chipset | Amlogic T972 |
OS | Android 9 |
CPU | Quad-Core ARM Cortex-A55 |
RAM | 2GB DDR3 |
Flash | 16GB EMMC |
TF Memory | 256GB |
OTG | Android Debug Port |
Wi-Fi | 2.4Ghz / 5.8Ghz |
BlueTooth | Supports 4.0 |
USB | Micro USB 2.0 |
Type C | NO Used |
Micro 5pin | Android Debug Port |
Resolution | Support RGB/Dual LVDS/Dual MIPI-DSI/eDP interface, up to 1920x158 resolution |
Support Media Format | 8Kp24 10bit H.265/VP9 decoding 4kp60 AVS2 decoding 4kp30 H.264 decoding HDR10+, HDR10, HLG |
| Video Files | MKV, WMV, MPEG, AVI, MOV, ISO, MP4, RM |
| Video Codec | 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps, 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H265, H264) 1080P video coding, supports H264/H265 |
| Audio Files | MP3, WAM, AAC, WAV, OGG, AC3, FLA |
| Image Files | JPG, JPEG, MJPEG, PNG, GIF |
| rooting | Root, unroot firmware selection available. |
| RTC | Real-time control system for powering on/off the product, setting reboot times. |
| Automatic log catching | Capability to store system logs. |
| WOL (Wake on LAN) functionality | Wake on LAN, remote booting via network functionality. |
| ADB (Android Debug Bridge) capability | Wired - OTG port, wireless - ability to debug Android via network. |
| Provision of platform keys | Utilization of platform keys for system permission access |
Supported languages | All languages supported by Android, such as Korean, English, German, etc. |
