System includ Android OS
Android All In one Touch
Android OS 7.1 High Performance Quad-Core CPU-Specified Touch Monitor!
Specialized enterprise with customized firmware and customization;
support for 4K codecs, HDMI-out screen sharing and expansion,
as well as multilingual support.
It is a product that can be scheduled and managed power,
and has a variety of user convenience.

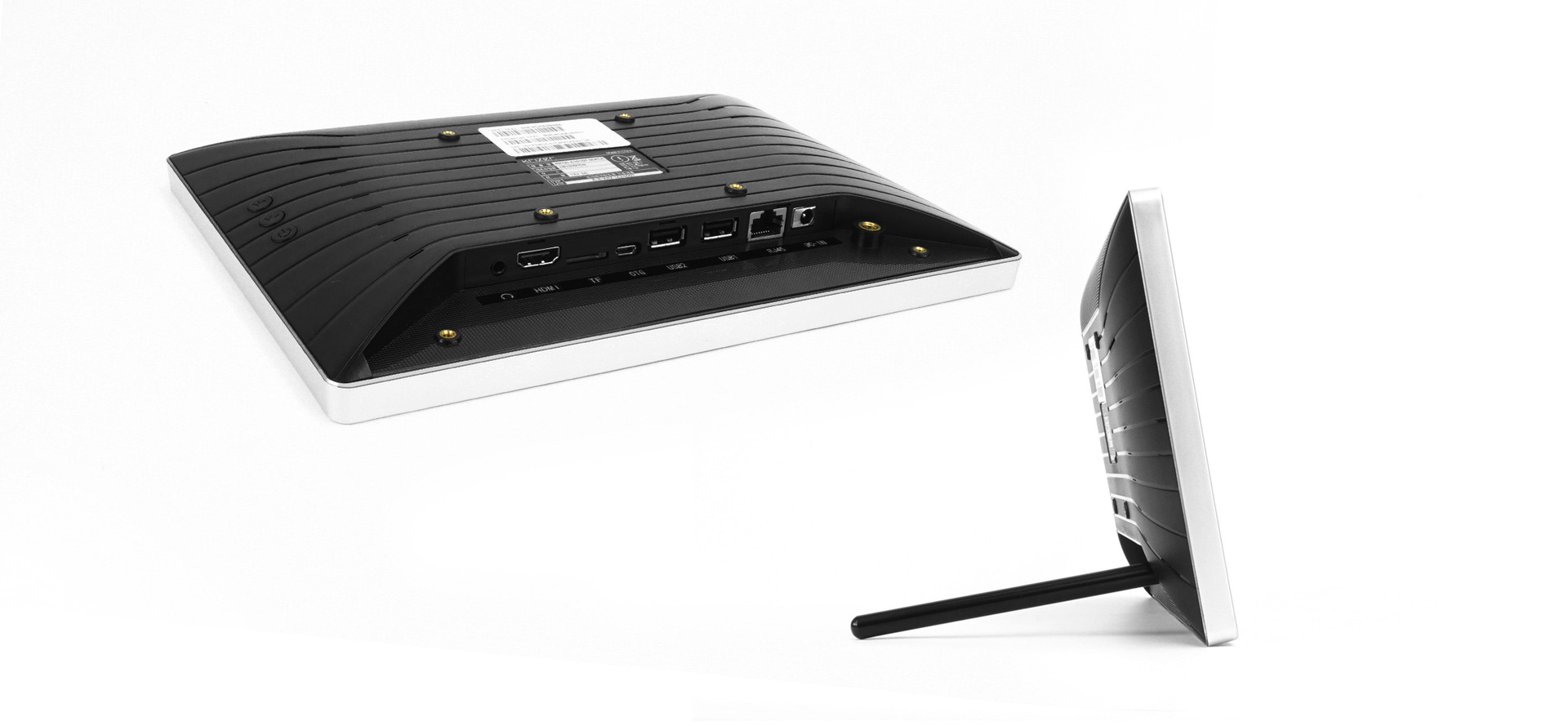

[Information] Small Size Display
KR101-S38T 10inch
DIMENTION : 260 X 178 X 25 (WxHxD)
CCD : 350CD
TYPE : Stand, Wall-mount

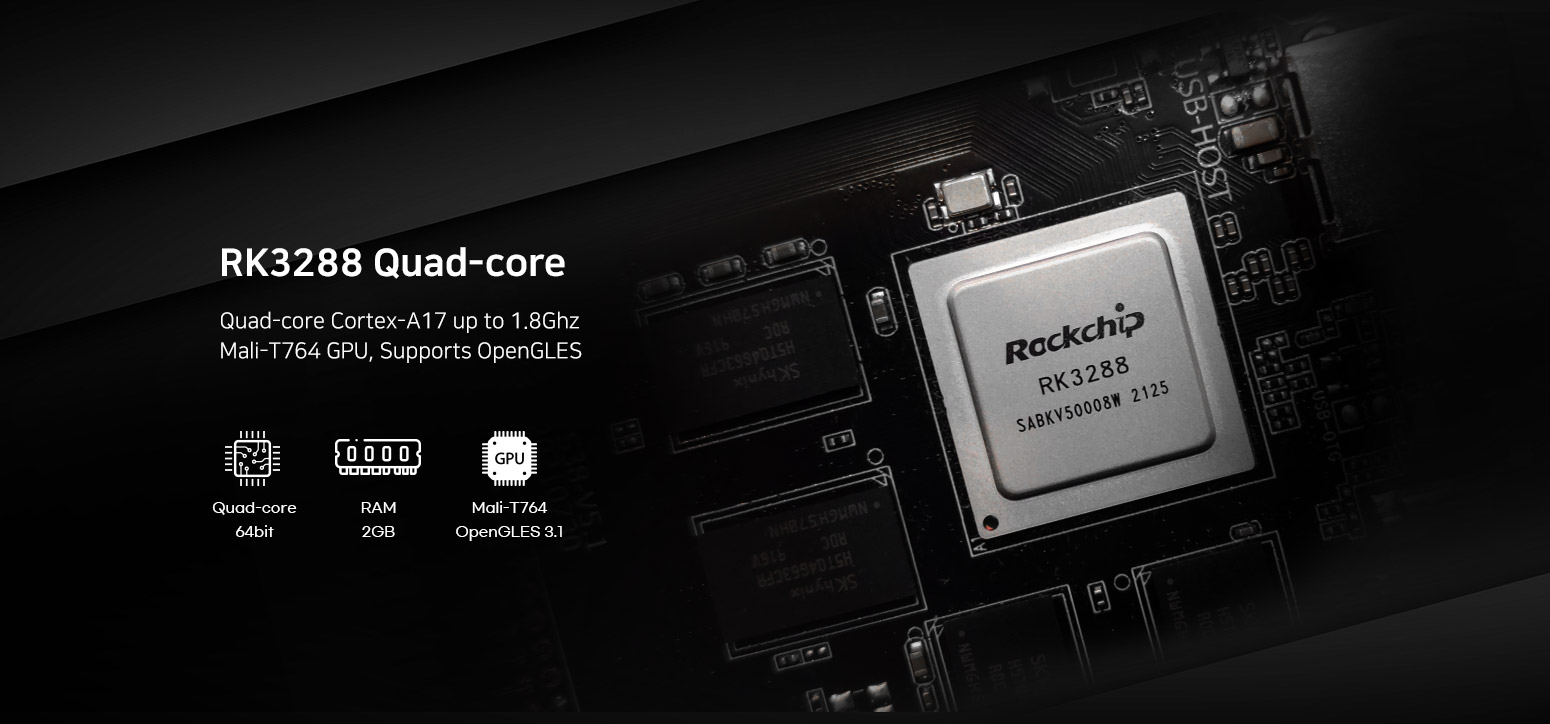

RK3299 Quad-core 64-bit Processor

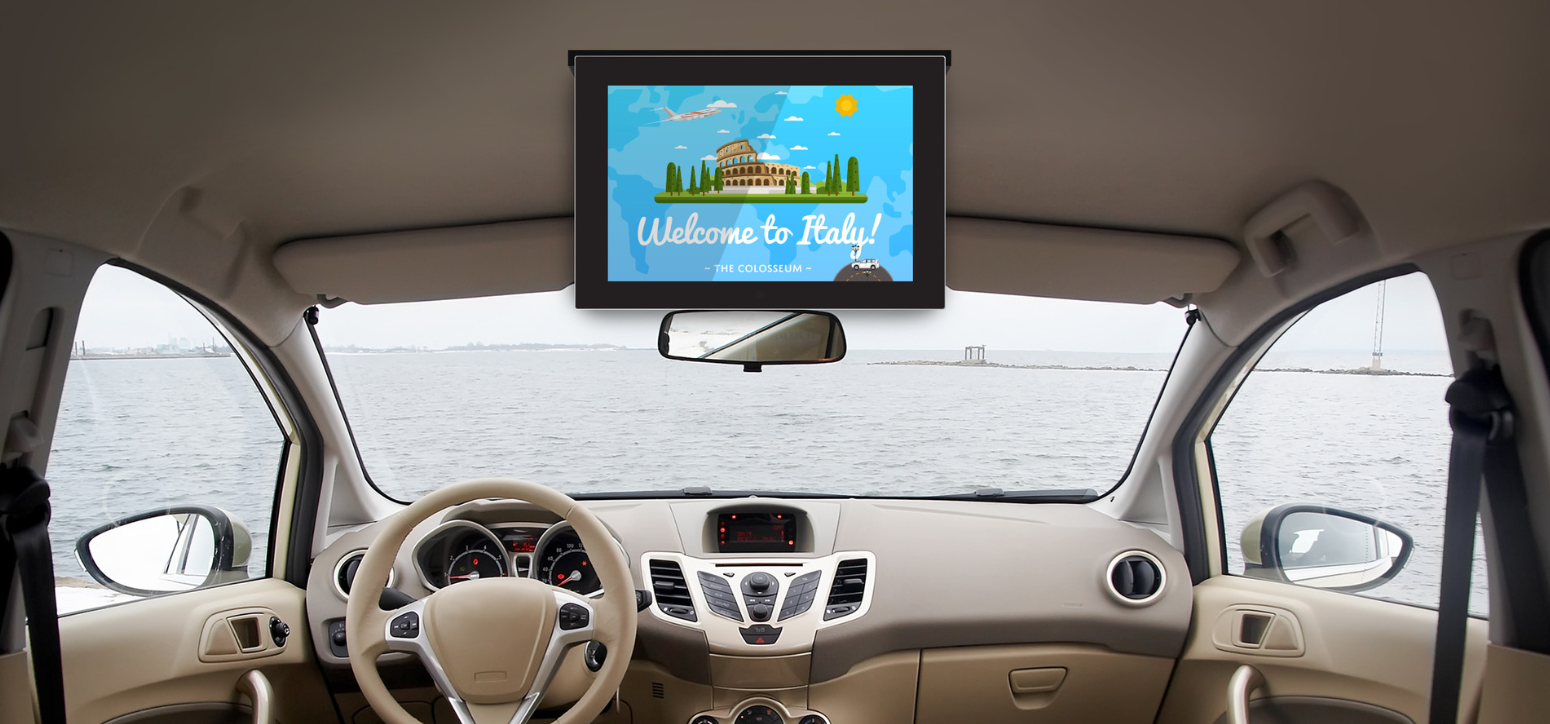

Car Android System
Various Android contents that you can enjoy in the car!
The HDMI - OUT function enables various functions
such as sending advertisement images and bus guidance.

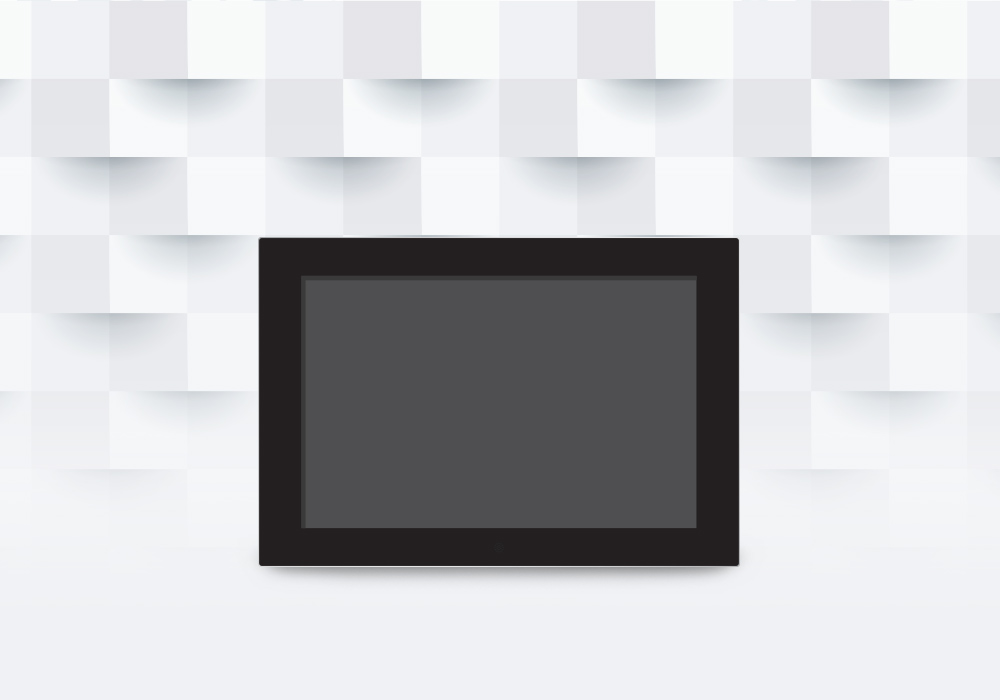

Make a unique menu for your store.
Don't put stickers every time you fix the menu!
Take advantage of digital signage that makes it easy to change menus and prices.
AIO system for consultation and signature
It boasts stability with a 10-point multi-touch panel for banks,
mobile phone dealerships, and hospital counseling systems.

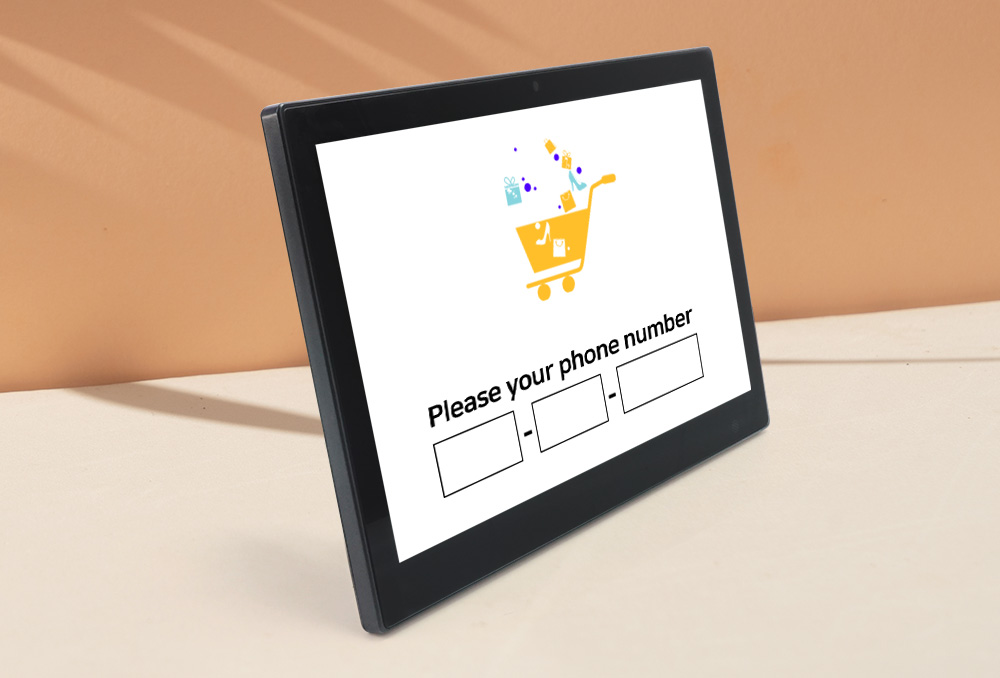

Customers can earn points themselves.
With Android applications, customers can earn points on their own.
Customize it so that it can be useful in the store.
Provide APIs appropriate
for development environments
It provides various API configurations to suit various development environments.
Provides information to make the different environments available in Android OS compatible.
Useful built-in features
1. Free advertising programs (Shopvod LITE)
2. Log-catchable AUTOLOG CATCH
3. The screen rotation function allows rotation at the desired angle.
4. Provide development environment by granting SUPERROOT authority .
5. Screen scale functionality
Supporting firmware for development
Support firmware development according to the application and
equipment porting required by the client.
Specifications
MODEL | KR101-S38T |
Inch | 10” |
Brightness | 350 CD |
Power | 12V 3A DC |
Demension | W260x H178 x D27mm |
Common List | |
CPU | Quad-Core Cortex-A17 up to 1.8GHz |
GPU | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0, 3.1 |
Memory (RAM / FLASH) | DDR3 RAM 2GB (3Gb Optional) / 16GB (32G Optoinal) |
Graphics | 4K H.264 and 10bits H.265 video decode, |
Resolution (OUTPUT) | 1080P multi video decode, 1280 x 720p, 최대 1920 x 1080p(Full HD) |
HDMI Version | HDMI 1.3 / 1.4 / 2.0 |
OS | Android OS 7.1 Nougat |
USB | 2.0 / 2port |
WIFI | WIFI 2.4Ghz / 5Ghz |
Bluetooth | Supporting Bluetooth 4.0 |
REMOTE | IR-type Remote controller |
Input / Output port | |
Input Port | USB 2.0 / 2port |
UART / Micro SD(TF) Memory Slot | |
LAN 10/100Mb Ethernet | |
High-Speed eMMC extension interface | |
Power input (DC) | |
Output Port | HDMI (Video and Sound) |
SPDIF for audio output | |
Wireless | Wifi (2.4Ghz / 5.8Ghz) |
IR Remote | |
Contents | |
Video Contents | Quad-Core Cortex-A17 up to 1.8GHz MKV, WMV, VC-1 SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM, REAL VIDEO 8/9/10, Video Output 1080P, 3D decoding, BD / SBS / TAB / FP |
Video Codec | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0, 3.1 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps,1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265), 1080P video coding, supports H.264/H.265 |
Audio Contents | WMA, FLAC, MP3, OGG, WAV |
Images Contetns | JPG, JPEG, MJPEG, PNG, GIF |
Language | ENG, CHI, KOR, GER (ETC Android os-provided language) |
Detail Images
