Payment-type kiosks
Mini-type camera module
Meet the kiosk POS series with Android OS.
Build the KIOSK in a wide range of 10 to 21 inches and various shapes such as desk type, wall-mounted type, and landfill type.
Bulit in Full-HD 1080p Camera
Enhance security with access control features and select product colors to alter the ambiance of the space.
Choose between tidy black and bright white colors.

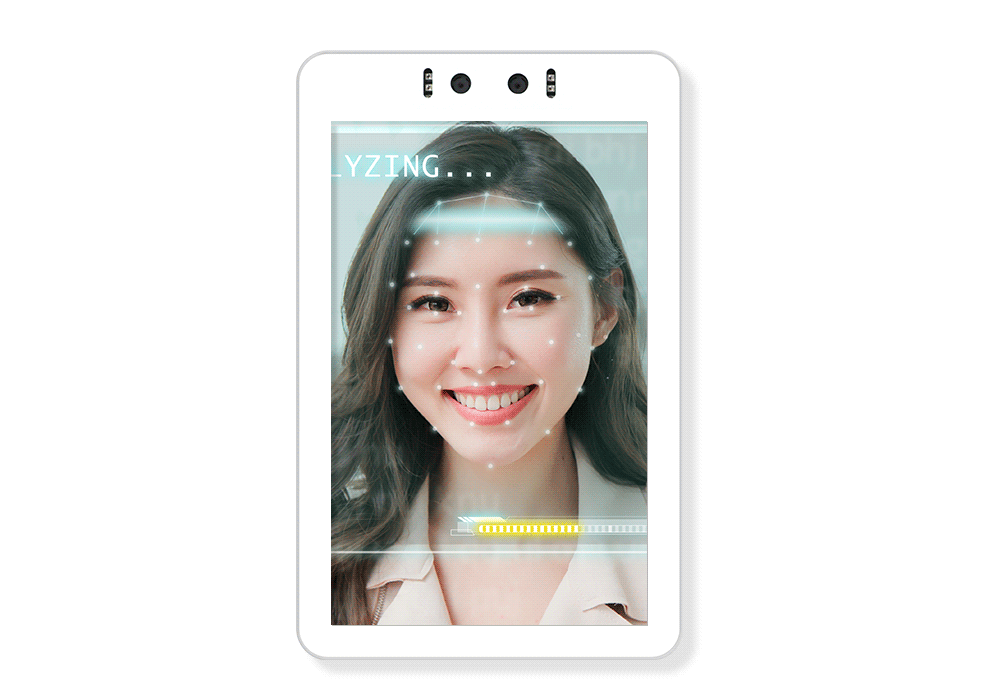

You can develop access programs utilizing facial recognition, barcode (or QR code) scanning, and more.
1080p Dual Camera
It can be customized and developed for various environments and
purposes such as photography and face attendance check.
RK3288 Chipset ARM board
Fast processing with high-performance quad-core CPUs.
Optimal wide viewing angle provided by IPS panels.
Dual speakers allow you to play music in the store!
Playable a wide range of Android solutions
Superior peripheral compatibility
USB, headphones, wireless mouse, keyboard, external hard drive.
Provide APIs appropriate
for development environments
It provides various API configurations to suit various development environments.
Provides information to make the different environments available in Android OS compatible.
Useful built-in features
1. Free advertising programs (Shopvod LITE)
2. Log-catchable AUTOLOG CATCH
3. The screen rotation function allows rotation at the desired angle.
4. Provide development environment by granting SUPERROOT authority .
5. Screen scale functionality
Supporting firmware for development
Support firmware development according to the application and
equipment porting required by the client.
Specifications
Model | KIO AK-10CD |
Inch | 10” |
Brightness | 350 CD |
Power | 12V 3A DC |
Demension | L225 x W245 x H375mm |
Weight | 4kg |
Spec | |
CPU | Quad-Core Cortex-A17 up to 1.8GHz |
GPU | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0 |
Memory (RAM / FLASH) | DDR3 RAM 2GB (3G optional) / EMMC 16G (32G optional) |
Resolution / Brightness | IPS 1280 x 720, 720p / 350 cd(up to 450cd) |
Touch Panel | 10 Points capacity touch panel (Optional) |
Ethernet | 10/100 Ethernet LAN RJ45 |
WIFI | WIFI 2.4Ghz / 5.8Ghz |
Multimedia | Supports UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H264 and AVS+ HDR10 and HLG HDR processing FHD 1080p 30fps HW encoding, H.264 |
Video Code | VP9-10, H.265 uo to 4Kx2K@60fps,h.265 WMV, MPEG-1, AVS, Realvideo up tp 1080p@60fps |
Video Format | MKV, WMV, MPG, MPEG, AVI, MOV, ISO, MP4, RM, JPG |
Audio Fortmat | MP3, WMA, AAC, WAV, OGG, AC3, FLCA |
Video Input | 4K HDMI-OUT |
Input | UART / USB2.0 / USB3.0 / Ethernet |
Bluetooth | 4.0 지원 |
Demention | L225mm X W245 X H375 (mm) |
Detail image
10" |
