Android Player Optimized for
Advanced Industrial Equipment
The only itemp Android set-top box player with Android OS 8.1, high-performance
quad-core enterprise customized firmware and customization!
Equipped with an external antenna, it provides excellent reception and
supports fast network, enabling companies to build the best solution they need!
Check out the products that have a variety of user convenience.
KTM-38
If you want a stable player?
RT4X PRO 2
Android's infinite scalability
Build a high-performance IOT system for high efficiency.
3D image implementation without problems!
Mali-T864 CPU optimized for 3D image implementation!
Production site monitoring, drawing analysis,
operation of production facilities, etc.
Smart Factory's optimal implementation that can be implemented
with Android apps.
Real-time networking required for IOT facilities
RS232 / Camera / USB / Bluetooth / Internet Device Scalability to
support a wide range of device designs

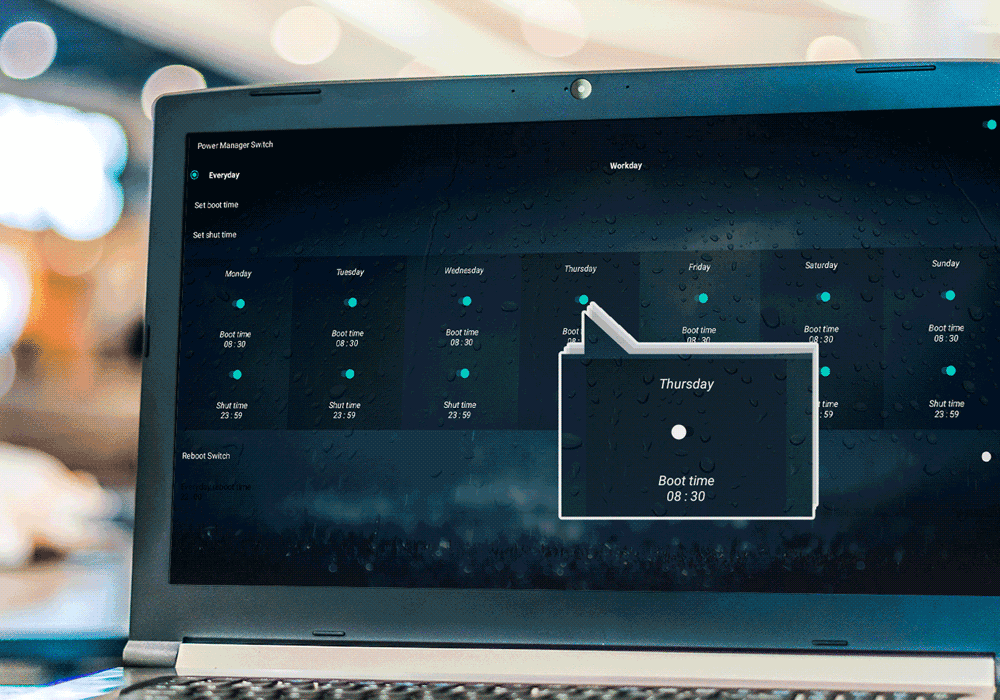

Efficient device schedule management
with RTC functionality!
Cloud advertising player configuration is possible using
the remote advertising solution app.
Remote control / Schedule function / RTC / Screen division / Multi-vision, etc.
It offers a variety of features.

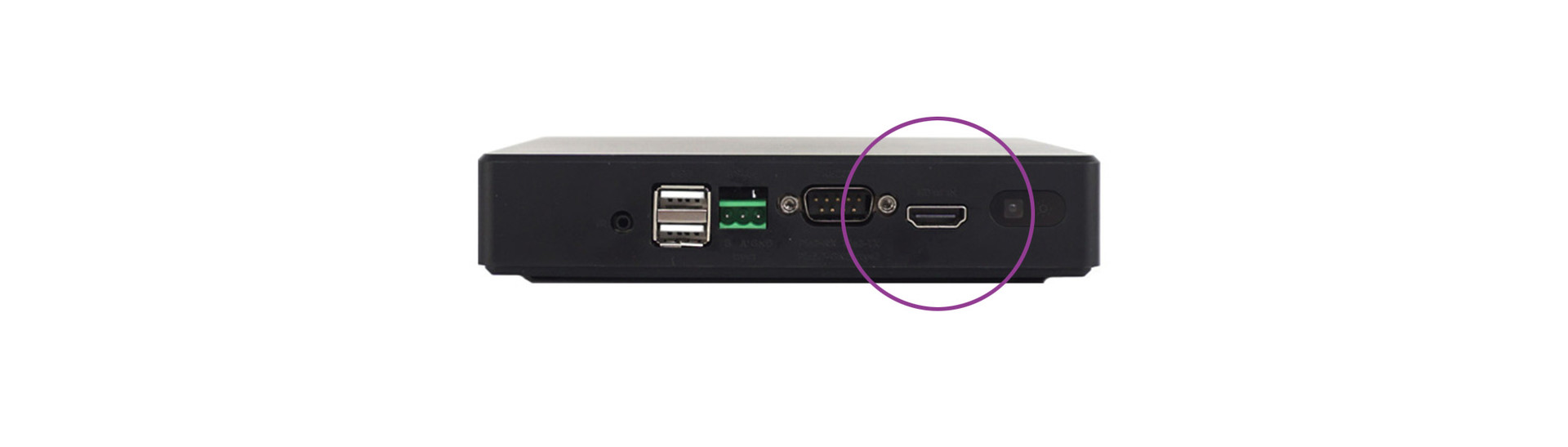

External Video and contents can be displayed using the HDMI in function.
Specifications
Model | KTM-38 BOX |
Demension | W150 x L70 x H1.5mm |
OS | Android |
Version | 7.1 / Nougat |
Contents | |
PROCESSOR | Quad core Cortex A17 up to 1.8Ghz |
GPU | ARM Mali - T764 GPU |
MEMORY (RAM l FLASH) | LPDDR3 2GB, EMMC 5.0 16G / 32G (Optional) |
WIFI / BLUETOOTH | IEEE 802.11 a/n/ac, 2.4Ghz, 5Ghz / 4.0 |
Ethernet | RJ45 100, WOL(Wake on lan) |
Screen interface | LVDS, EDP (Internal option) |
HDMI | 4K HDMI OUT |
USB Interface | USb 2.0 X4, Micro USB X 1 (OTG) |
RTC | RTC, power on/off schedule |
Audio l Mic | 3.5mm earphone |
Port | RS232, RS485 (Optional) |
Power | DC 12V 2A |
| Certification Number | R-R-KRZ-RT4XPro |
Support | |
Video | Quad-Core Cortex-A17 up to 1.8GHz MKV, WMV, VC-1 SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM, REAL VIDEO 8/9/10, Resolution 1080P, 3D decoding, BD / SBS / TAB / FP |
Video codec | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0, 3.1 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps, 1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265), 1080P video coding, supports H.264/H.265 |
Audio | WMA, FLAC, MP3, OGG, WAV |
images | JPG, JPEG, MJPEG, PNG, GIF |
language | By Android OS |
Detail Images
