55"
Visible advertising displays on large screens
Kiosk KR-DID series with Android OS from ITEMP
a company specializing in Android solutions.
Vertical DID screen optimized for commercial playback
Various places!
Various information!
Make it easy to guide you.
Use it as an electronic information board in museums, art galleries, and exhibitions.
Various information such as floor guidance maps and exhibition schedules can be controlled from one device.
Touchable signage
Build a responsive signage with a large touch panel.
Touch to see the information you want.

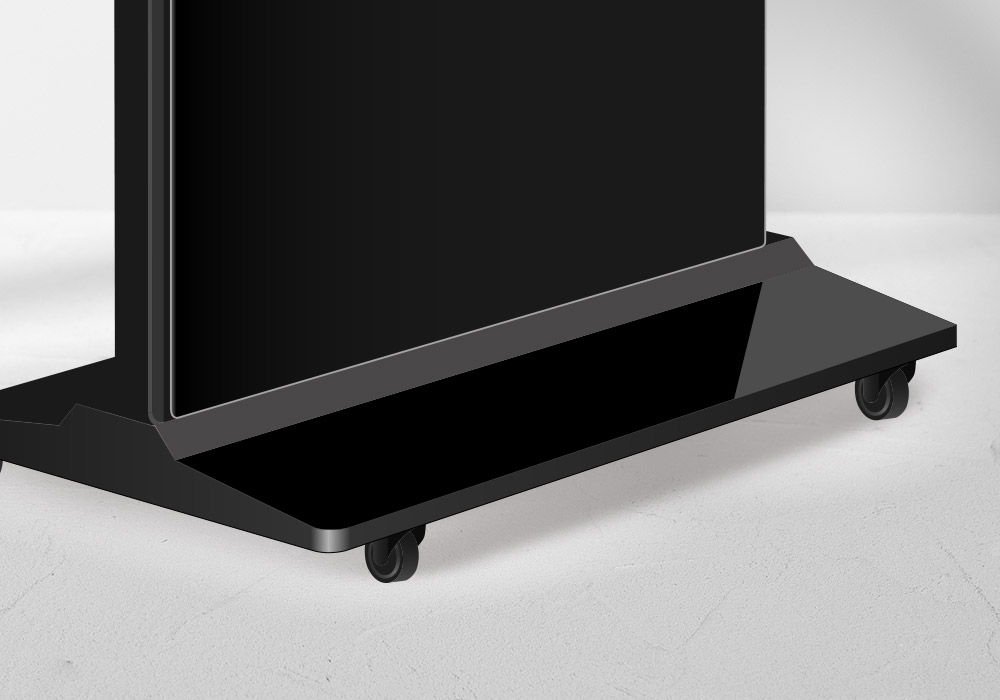

Easly moving!
You can move and fix it freely!
Removable wheels!
Can moving, Digital Signage!
RK3288 Chipset ARM board
Fast processing with high-performance quad-core CPUs.
Optimal wide viewing angle provided by IPS panels.
Dual speakers allow you to play music in the store!
Playable a wide range of Android solutions
Superior peripheral compatibility
USB, headphones, wireless mouse, keyboard, external hard drive.
Provide APIs appropriate
for development environments
It provides various API configurations to suit various development environments.
Provides information to make the different environments available in Android OS compatible.
Useful built-in features
1. Free advertising programs (Shopvod LITE)
2. Log-catchable AUTOLOG CATCH
3. The screen rotation function allows rotation at the desired angle.
4. Provide development environment by granting SUPERROOT authority .
5. Screen scale functionality
Supporting firmware for development
Support firmware development according to the application and
equipment porting required by the client.
Specifications
Model | KIO AK-55S |
Inch | 55” |
Brightness | 350 CD |
Power | AC 100V-220V |
Deminsion | L1880 x W757x H450mm |
Weight | 65kg |
SPEC | |
CPU | Quad-Core Cortex-A17 up to 1.8GHz |
GPU | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0 |
Memory (RAM / FLASH) | DDR3 RAM 2GB (3G optional) / EMMC 16G (32G optional) |
Resolution / Brightness | IPS 1920 x 1080, 1080p / 350 cd(up to 450cd) |
Touch Panel | 10 Points capacity touch panel (Optional) |
Ehternet | 10/100 Ethernet LAN RJ45 |
WIFI | WIFI 2.4Ghz / 5.8Ghz |
Multimedia | Supports UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H264 and AVS+ HDR10 and HLG HDR processing FHD 1080p 30fps HW encoding, H.264 |
Video Codec | VP9-10, H.265 uo to 4Kx2K@60fps,h.265 WMV, MPEG-1, AVS, Realvideo up tp 1080p@60fps |
Video Format | MKV, WMV, MPG, MPEG, AVI, MOV, ISO, MP4, RM, JPG |
Audio Format | MP3, WMA, AAC, WAV, OGG, AC3, FLCA |
Video Input | 4K HDMI-OUT |
Connector | UART / USB2.0 / USB3.0 / Ethernet |
Bluetooth | 4.0 지원 |
SPEC | L1880mm X W757 X H450 (mm) |
