Easily check out information by touching!
System includ Android OS
Android All In one Touch
Android OS 7.1 High Performance Quad-Core CPU-Specified Touch Monitor!
Specialized enterprise with customized firmware and customization;
support for 4K codecs, HDMI-out screen sharing and expansion,
as well as multilingual support.
It is a product that can be scheduled and managed power,
and has a variety of user convenience.

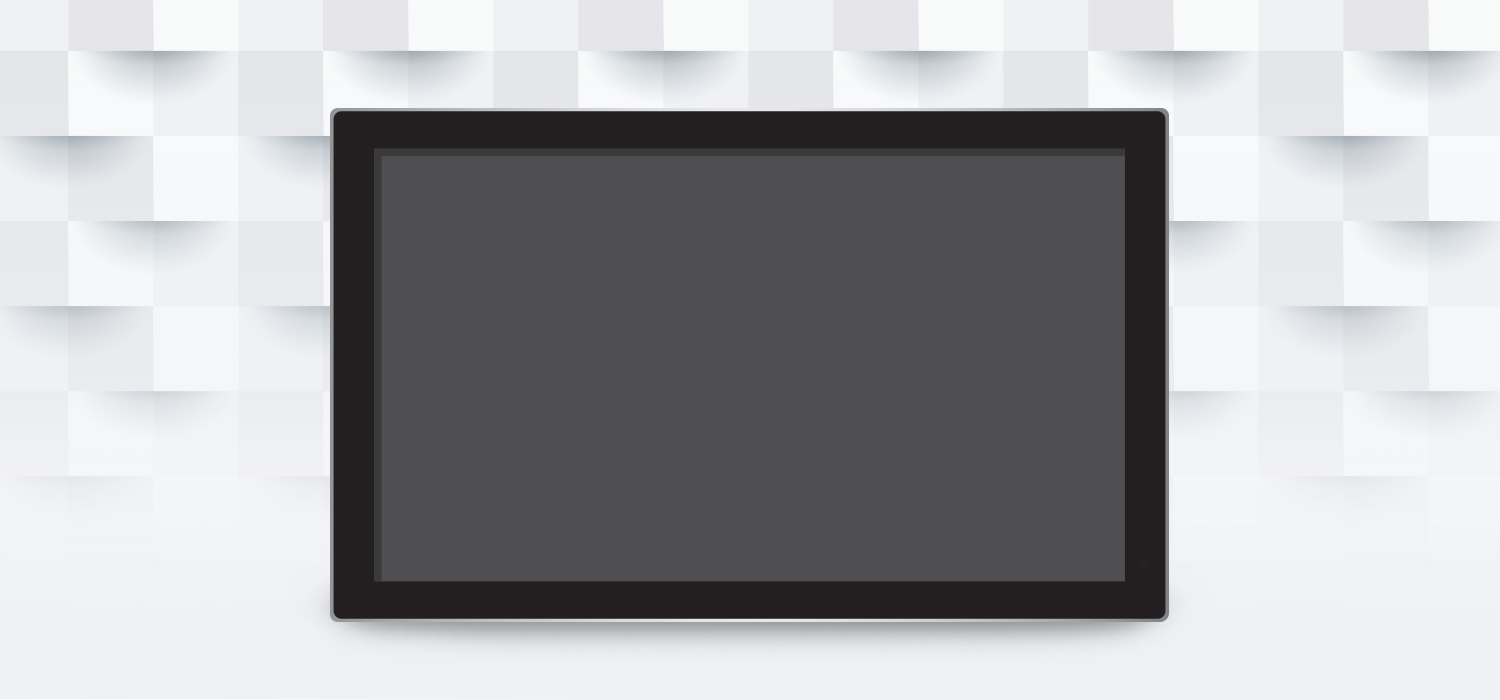

[Information] Standard Size Display
KR24-S38T
DIMENTION : 595X365X40(WXHXD)
CCD : 450CD
INSTALL TYPE : Stand, Wall mount
Choose a menu!
Simply order with one touch.
Menu Order And Payment !!
It's done with one Itemp TOUCH PC!
Pivot function
Install in the desired direction where you want.
Can choose angle. 0˚, 90˚, 180˚, 270˚
Efficient patient management!
Boost workflow speed and elevate
the quality of healthcare services.
Membership with AIO system
Touch the membership management and attendance management.
Provide APIs appropriate
for development environments
It provides various API configurations to suit various development environments.
Provides information to make the different environments available in Android OS compatible.
Useful built-in features
1. Free advertising programs (Shopvod LITE)
2. Log-catchable AUTOLOG CATCH
3. The screen rotation function allows rotation at the desired angle.
4. Provide development environment by granting SUPERROOT authority .
5. Screen scale functionality
Supporting firmware for development
Support firmware development according to the application and
equipment porting required by the client.
Specifications
KR24-S38T
DIMENTION : 595X365X40(WXHXD)
CCD : 450CD
INSTALL TYPE : Stand, Wall mount
MODEL | A2400T |
INCH | 24” |
Brightness | 450 CD |
Power | 12V 3A DC |
Demension | L595 x W365 x H40mm |
Common List | |
CPU | Quad-Core Cortex-A17 up to 1.8GHz |
GPU | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0, 3.1 |
Memory (RAM / FLASH) | DDR3 RAM 2GB (3G optional) / 16GB (32G optional) |
Graphics | 4K H.264 and 10bits H.265 video decode, |
Resolution (OUTPUT) | 1080P multi video decode, 1280 x 720p, UP to 1920 x 1080p(Full HD) |
HDMI Version | HDMI 1.3 / 1.4 / 2.0 |
OS | Android OS 7.1 Nougat |
USB | 2.0 / 2port |
WIFI | WIFI 2.4Ghz / 5Ghz |
Bluetooth | Supporting Bluetooth 4.0 |
REMOTE | IR-type Remote controller |
Input / Output port | |
Input Port | USB 2.0 / 2port |
UART / Micro SD(TF) Memory Slot | |
LAN 10/100Mb Ethernet | |
High-Speed eMMC extension interface | |
Power input (DC) | |
Output Port | HDMI (Video and Sound) |
SPDIF for audio output | |
Wireless | Wifi (2.4Ghz / 5.8Ghz) |
IR Remote | |
Contents | |
Video Contents | Quad-Core Cortex-A17 up to 1.8GHz MKV, WMV, VC-1 SP, MP, AP, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM, REAL VIDEO 8/9/10, Video Output 1080P, 3D decoding, BD / SBS / TAB / FP |
Video Codec | Mali-T764 GPU, Supports OpenGLES 1.1 and 2.0, 3.1 4K VP9 and 4K 10bits H265 / H264 video decoding, up to 60fps,1080P multi-format video decoding (WMV, MPEG-1/2/4, VP9, H.264, H.265), 1080P video coding, supports H.264/H.265 |
Audio Contents | WMA, FLAC, MP3, OGG, WAV |
Images Contetns | JPG, JPEG, MJPEG, PNG, GIF |
Language | ENG, CHI, KOR, GER (ETC Android os-provided language) |
Detail Image
