RK3588 Set-Top Box
The Ultimate AI-Powered Performance!
Experience next-level computing with ITEMP’s RK3588 Set-Top Box.
Powered by an 8-core processor and 6.0 TOPS NPU, it delivers lightning-fast AI processing, 8K video decoding, and seamless multitasking. Ideal for smart displays, AI applications, and high-performance streaming, this is the future of intelligent computing!
A groundbreaking processor ushering in a new era of AI
With high-performanc GPU and NPU support for 8K,
it delivers an unparalleled AI experience.
A groundbreaking processor ushering in a new era of AI
| High-Perfomance AI Processor
6TOPS NPU computing capability
| Supporing multi-controller Functionally
Ensures compatibility with various devices
| 8k resolution output
Ultra High-Definition Video decoding
| Edge computing
Distributed data processing
| High-efficiency power
Low-power, High-efficiency, High performance Design
| Scalable, High-Performance Interface
Offers ports such as USB, HDMI, Serial, GPIO
| HDMI Inpput
Provides HDMI input port
| Exceptional data processing
Instant AI data analysis processing
| AI training acceleration
Capable of learning using NPU functionality
| Perfectly adatable for indeustrial environments
Designed to with stand high and low temperatures
as well as vibration.s
| Supports the lastest Android OS
Supports both android and linux OS>
| High-efficiency power
Low-power, High-efficiency, High performance Design
| IoT friendly designed board
Seamless integration with IoT devicses.
| Video and Image processing
Enhanced video and image recognition through AI
| Enhanced security system
Security system strengthended with OS upgrade
| Automated system processing
Factory and smart automation processing support
| Supports ultra-fast connectivity
Supports Wi-Fi and Bluetooth 5.2
| Low-Latency communication design
Stable, fast data transmission
| Outstanding graphics performanc
Equipped with high-performance GPU to Maximize quality
| Itemp's exclusive support system
Provides continous software updates.

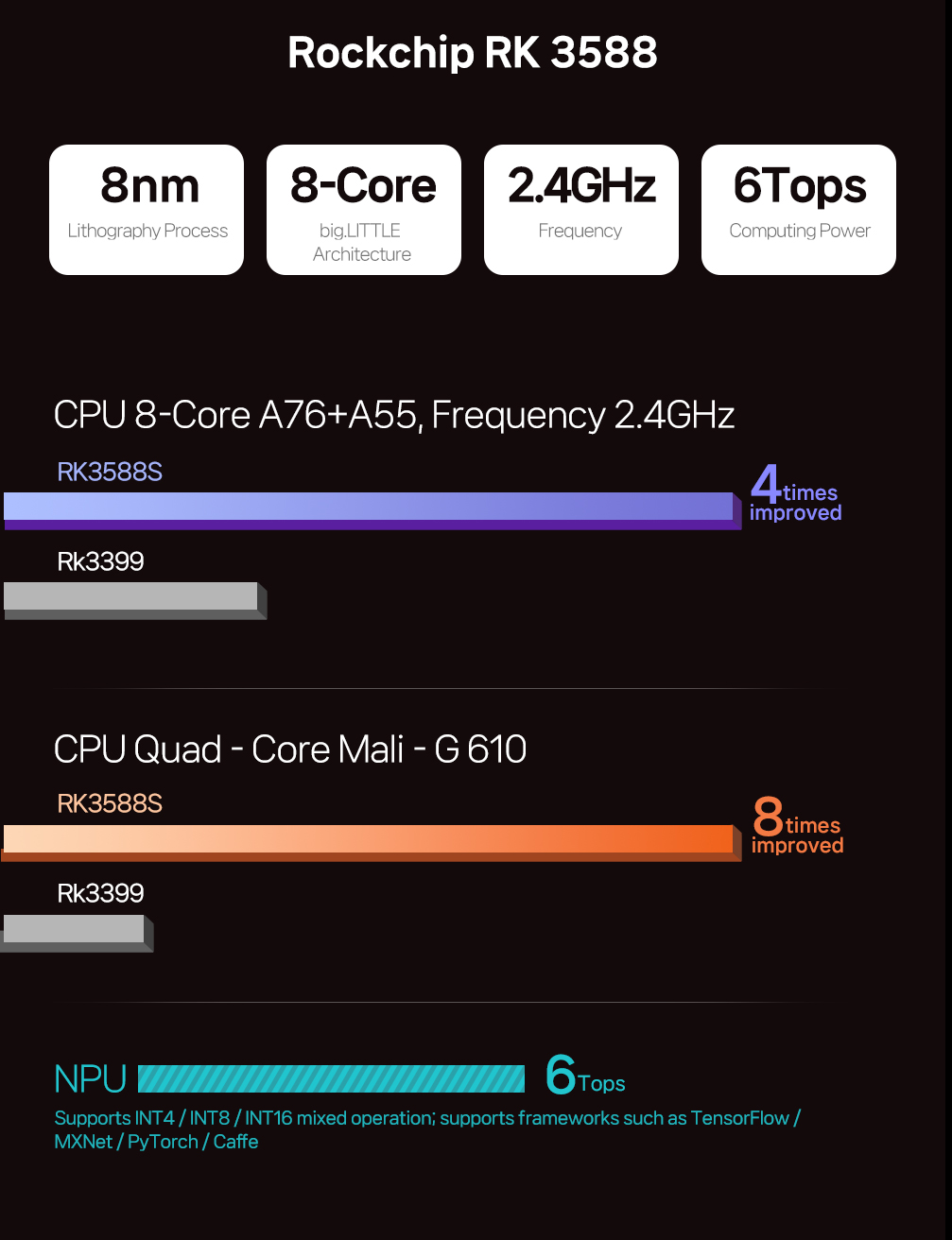

RK3588
A High-performance processor paving the way for the AI era.
RK3588 is Rockchip's next-generation flagship AIoT SoC with an 8nm process.
Equipped with an 8-core 64-bit CPU, offering frequencies up to 2.5GHz.
Features ARM Mali-G610 MP4 quad-core GPU and built-in AI accelerator NPU, Providing 6TOPS computing
The Powerful ARM chip supports deep learnin frameworks.
RK3588 can deliver optimized performance for AI application scenarios across various industries.
Ultimate scalability with the latest technology
featuring more cores and higher speeds
The octa-core design of RK3588 is more efficient than Rockchip's existing hexacore.
offering superior multitasking and data processing speeds.
With 8K output and expanded interface support, RK3588 surpasses RK3399.

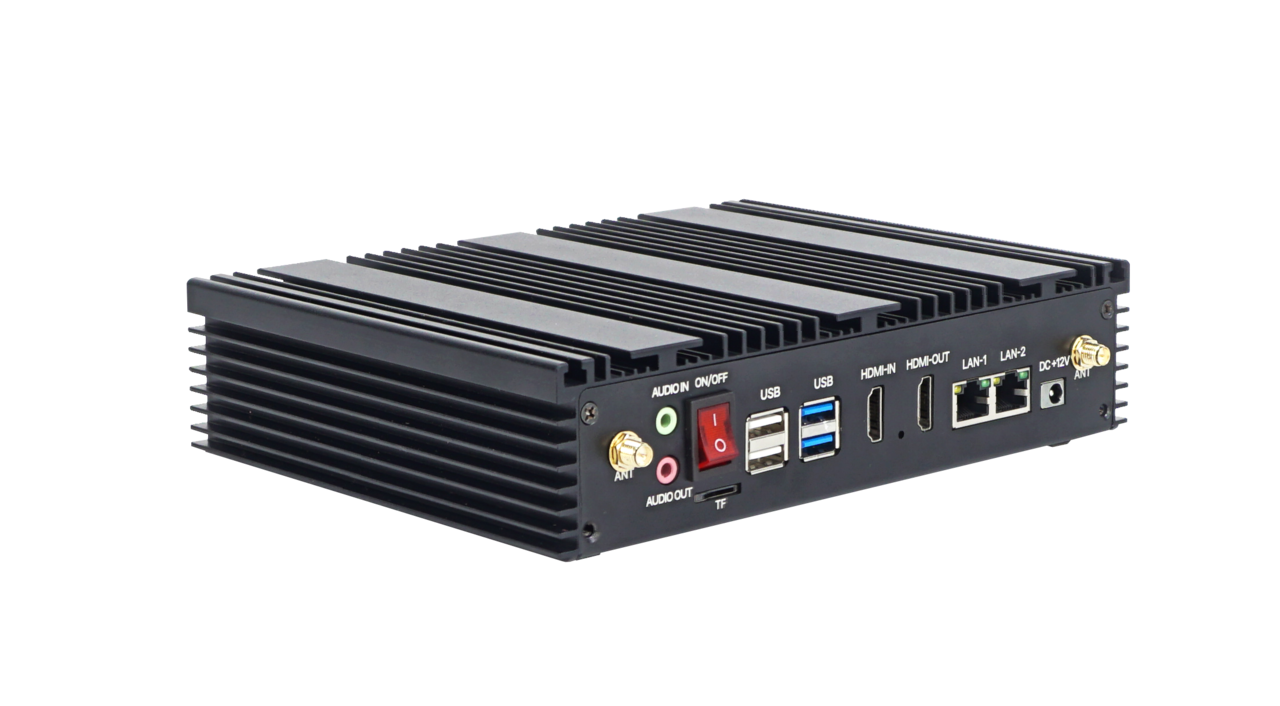

KTM-39 Box
Android's infinite scalability
Build a high-performance IOT system for high efficiency.
Multi-channel, versatile analysis system capable of operation
Intelligent ARM system with multitasking capabilities and analysis capabilities.
Through cameras, a wide range of functionalities can be utilized.
It boasts innovative multi-channel decoding capabilities capable of performing AI analysis functions.
A high-performance AI recognition platform can be built to operation seamlessly even in complex processing ecviroments
3D image implementation without problems!
operation of production facilities, etc.
Smart Factory's optimal implementation that can be implemented
with Android apps
Real-time networking required for IOT facilities
RS232 / Camera / USB / Bluetooth / Internet Device Scalability to
support a wide range of device designs
Efficient device schedule management
with RTC functionality!
Cloud advertising player configuration is possible using
the remote advertising solution app.
Remote control / Schedule function / RTC / Screen division / Multi-vision, etc.
It offers a variety of features.
Superior peripheral compatibility
RS232/RS485 communication is possible including webcam,
USB, headphones, wireless mouse, keyboard, external hard drive.
Specifications
| Model | S88-BOX |
| OS | Android 13.0 |
| CPU | RK3588,Quad-core Cortex-A76 + Quad-core Cortex-A55 up to 2.4GHz |
| GPU | Mali-G610 MP4, OpenGL ES 1.1/2.0/3.2,Vulkan 1.2,OpenCL 2.2 |
| NPU | 6TOPS,INT4/INT8/INT16/FP16 hybrid operation |
| RAM | 8G (16G optional) |
| ROM | 32G (64G-128G optional) |
| Network | WLAN WIFI6 2.4/5.8GHZ ,BT V5.2; Ethernet GLAN(1000Mbps) |
| Video Decoding | H.264 8K@30fps, H.265/VP9/AVS2 8K@60fps, AV1 4K@60fps, 1080p@60fps Mpeg1/2,Mpeg4,SP/ASP GMC,H.263,,WMV9/VC-1 ,VP8,etc. |
| HDR | Support HDR 10/HDR HLG ; HDR2SDR/SDR2HDR |
| Photo Decoding | JPEG,BMP,PNG,GIF etc. |
| Special functions | Hardware watch time dog make system running stable |
| Screen rotation can change any display direction of four sides | |
| Power management make device reasonable working schedule | |
| Contents management system to publish any programs | |
| Automatically cleared the redundancy by periodically | |
| Support WOL function | |
| Support HDMI CEC power control function | |
| Provide API document for easy match with applications | |

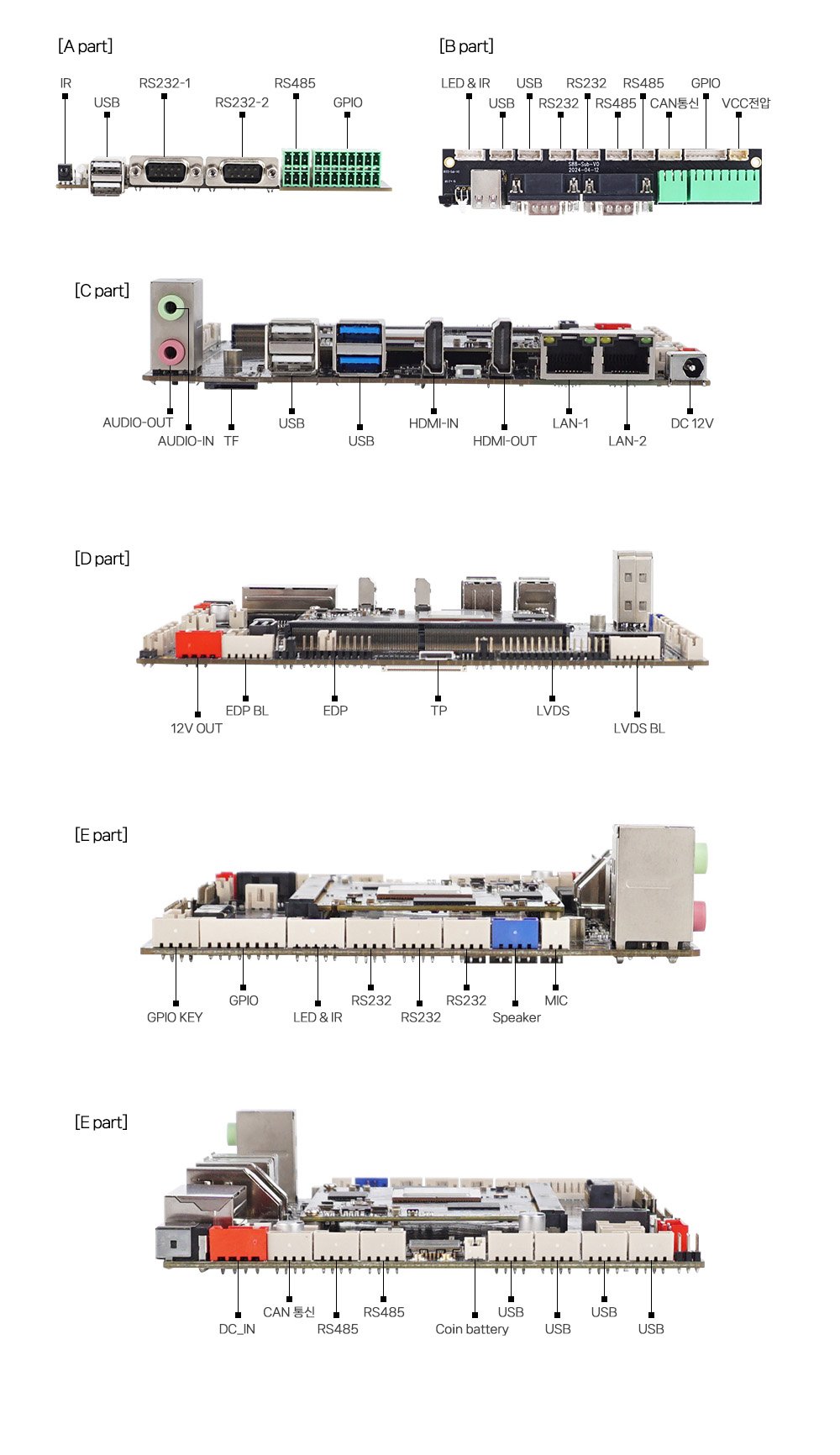

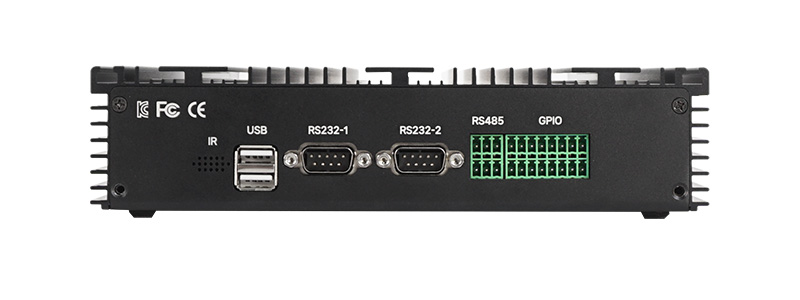

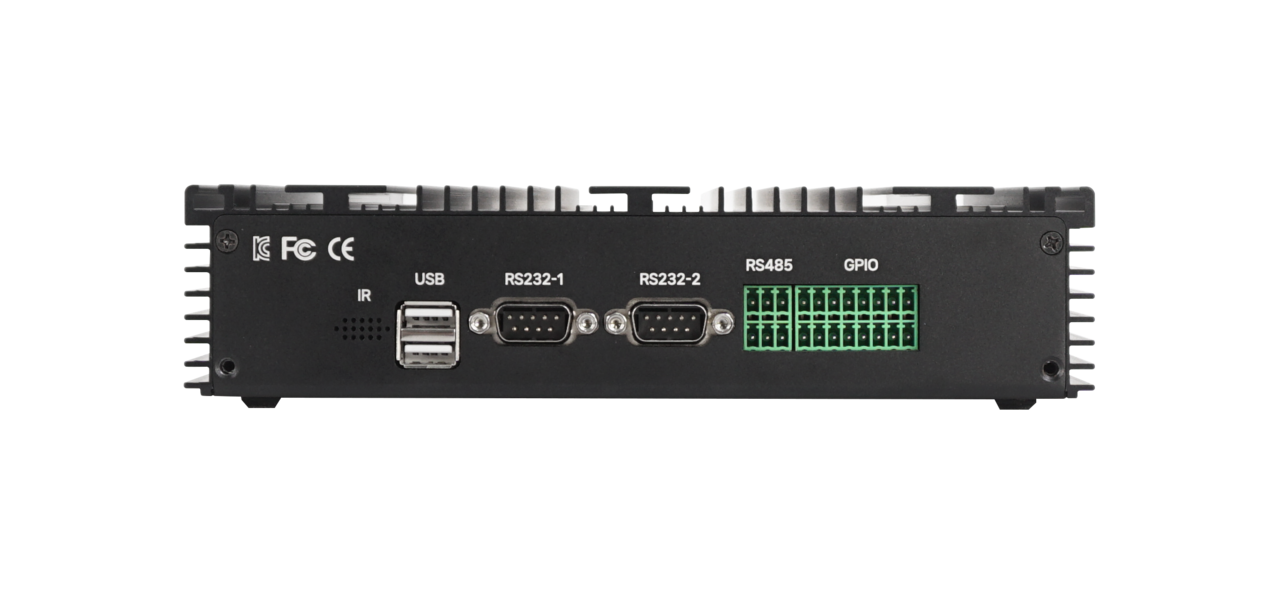

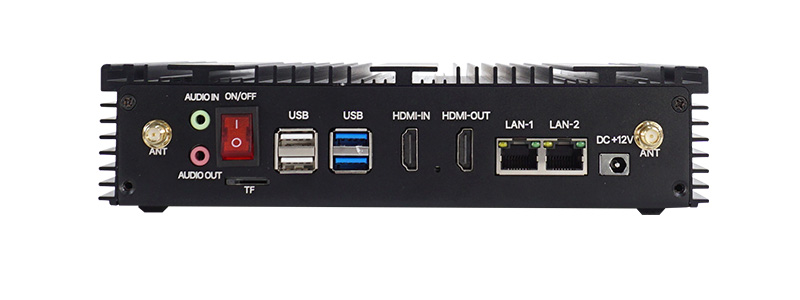

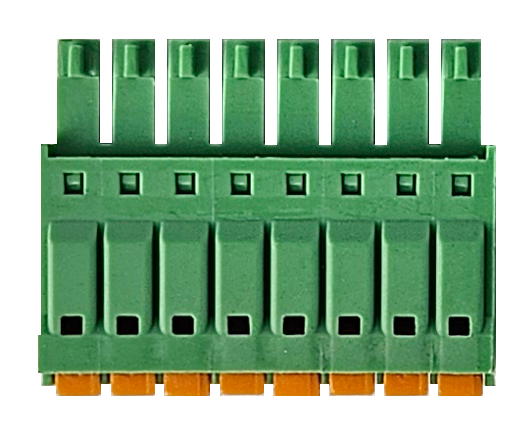

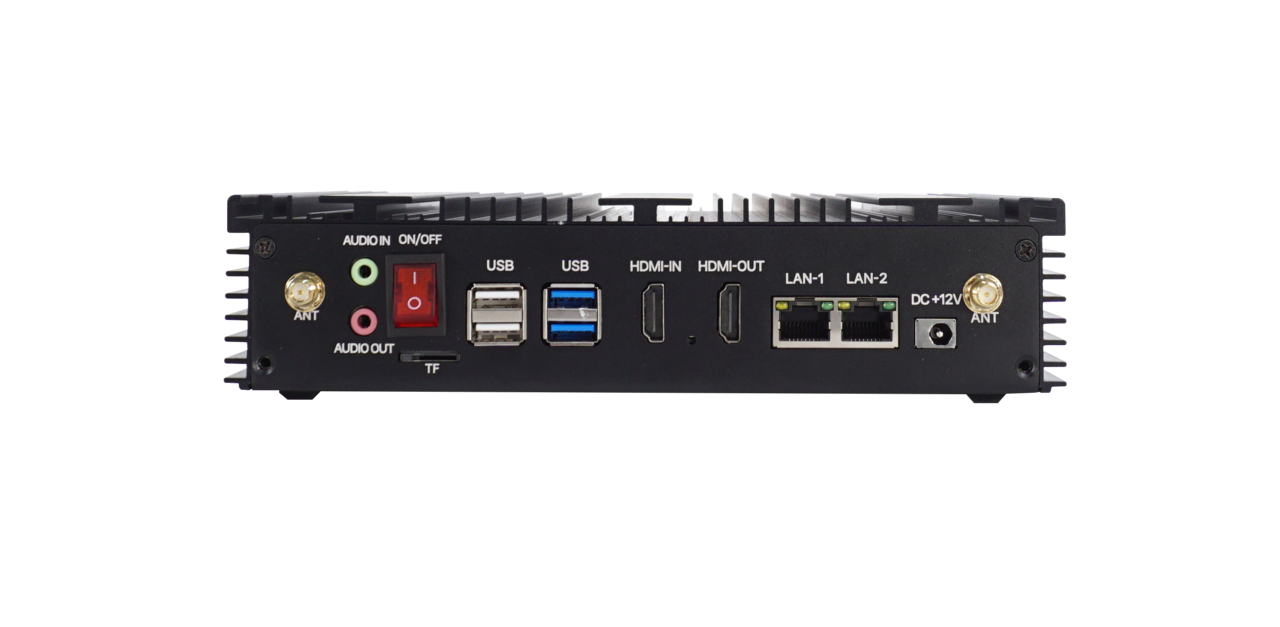

| Interface | USB2.0x4; USB3.0x2; RJ45x2; DC powerx1; HDMI OUTx1; HDMI INx1; Audio inx1; Audio outx1; TFx1; RX232x2; RX485x2; Canx1; extender portx1(GPIO) |
| Operating Temperature | 0 to +60 degree |
| Power | DC 12V/3A |
| Accessory | Power adapterx1; Bracket(mounter)x1; User Manuelx1;(optional) ANTx2; RC x1; HDMI cablex1; |

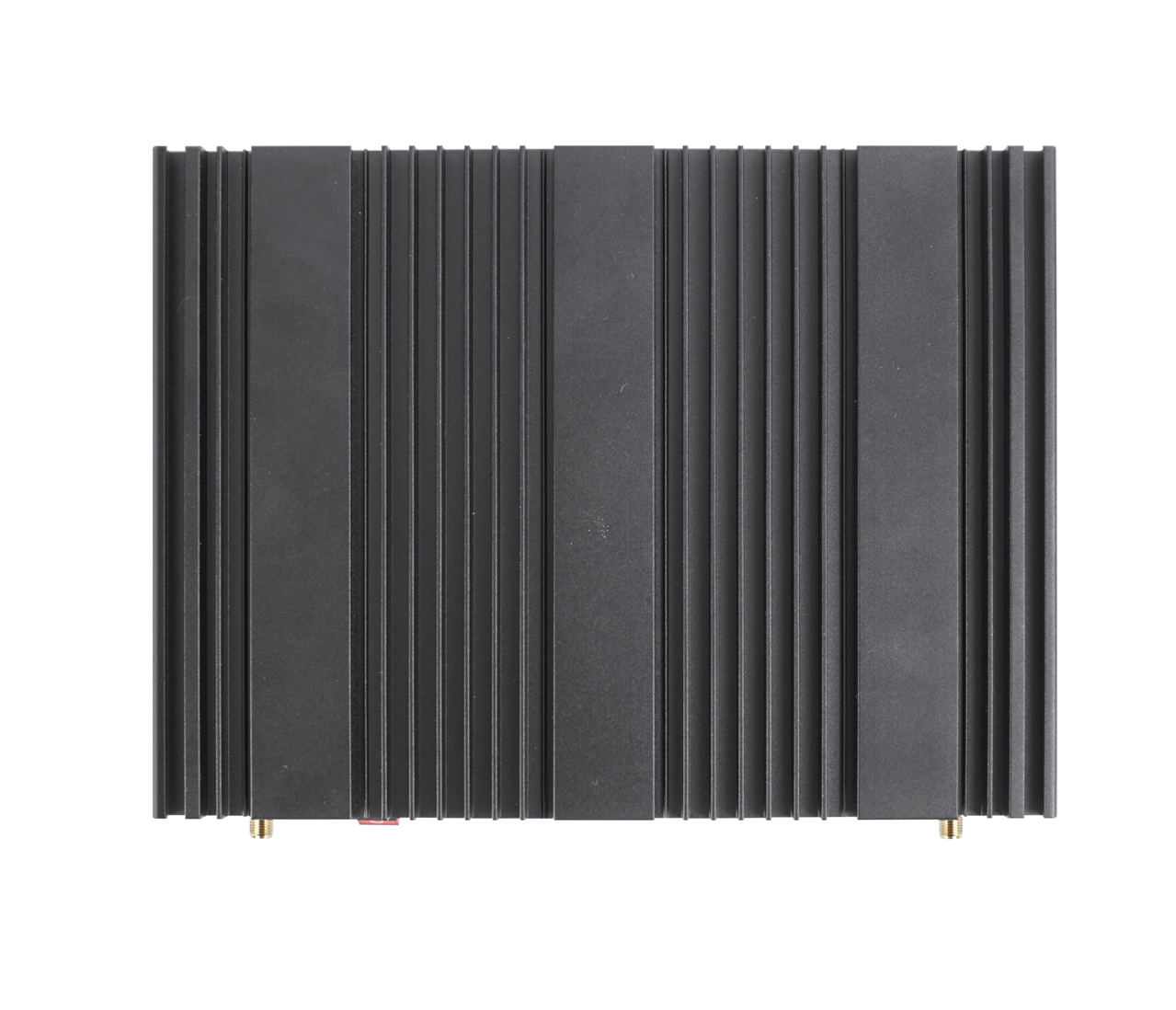

| Housing | Material: metal; Color: black; |
| size: 214mmx160mmx50mm | |
| Net weight | 1.3kg |
| Package Size | 236mmx185mmx107mm |

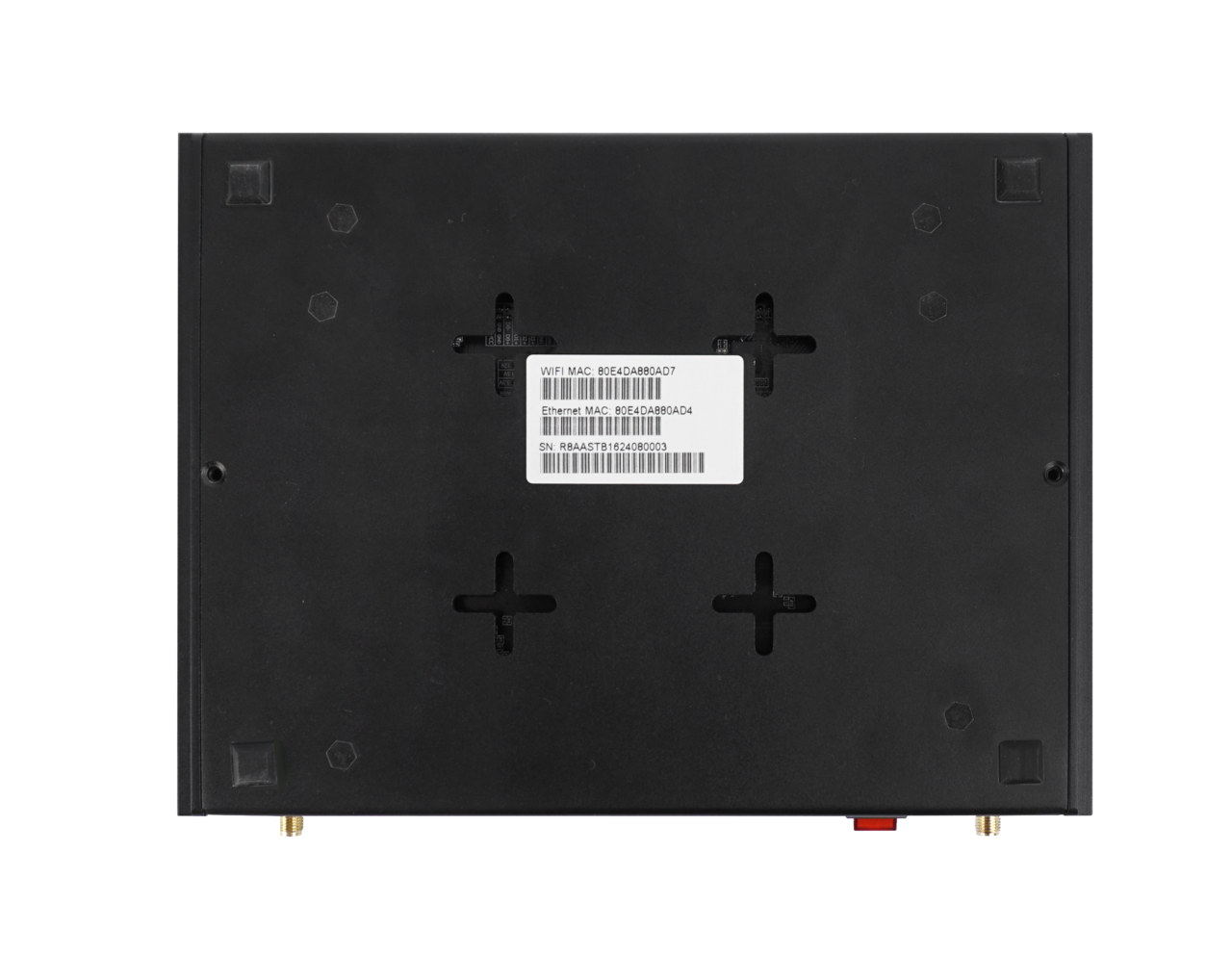

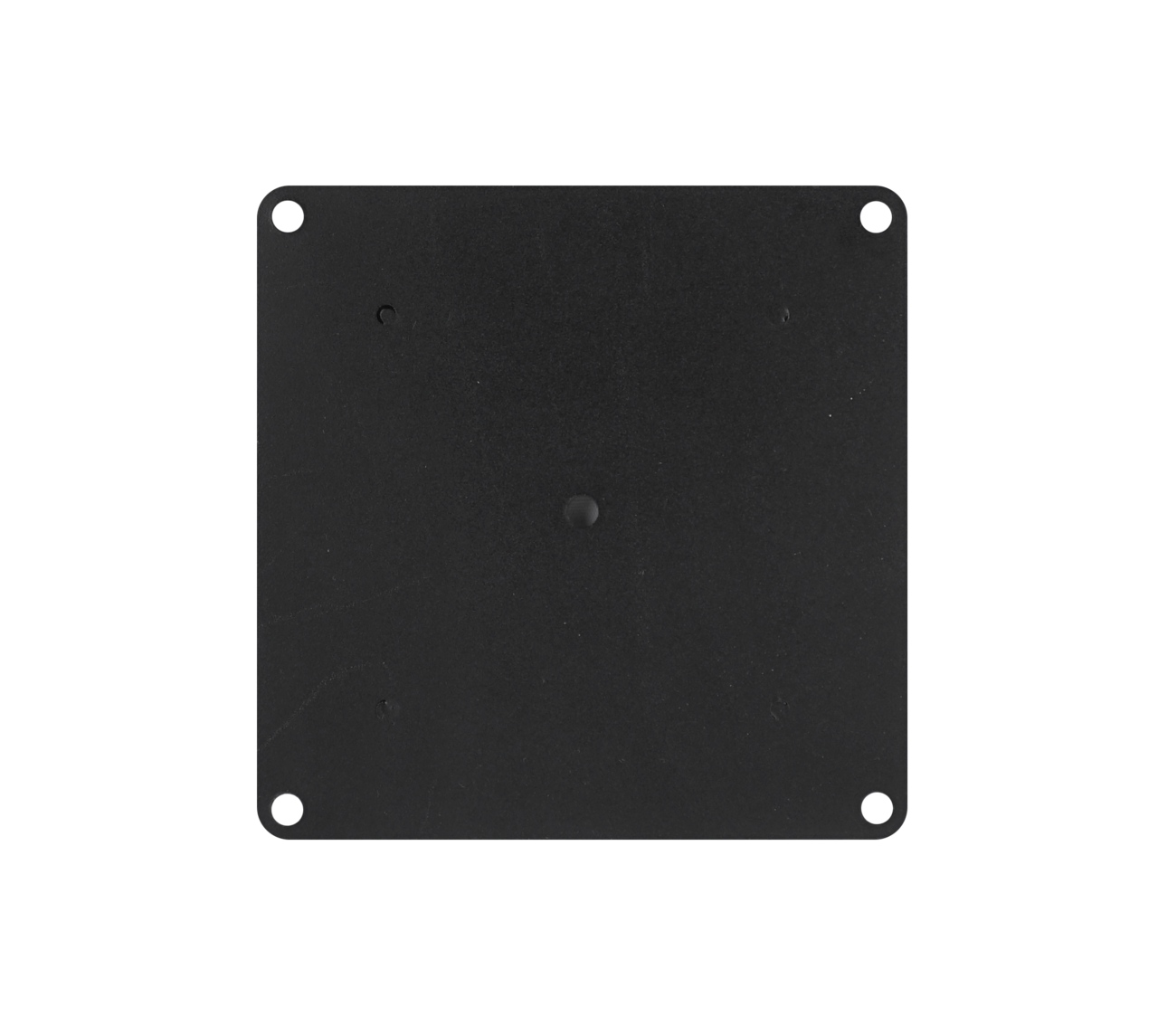

| Installation | Support mount on the wall |

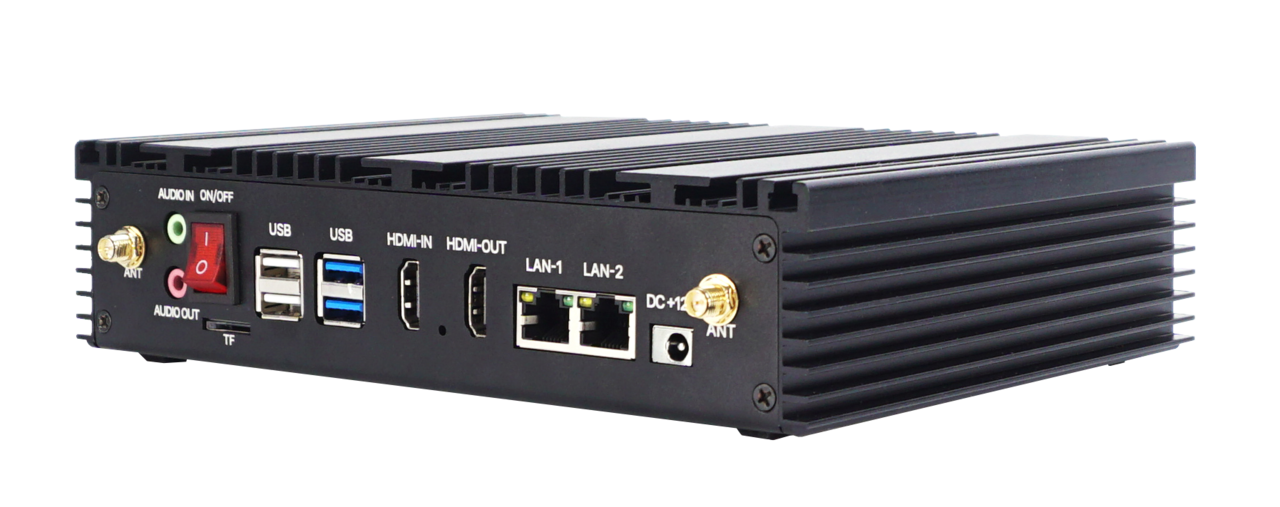

Detail images
